SM481_PLUS_TRM(Ver2.0_CS20.11) - 第59页
Page +$1:+$ 43 SM481 PLUS Conveyor Ass’y(1/4) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-006854A A SSY ,CONVEYOR-FIX_RAIL_P 1 2 AM03-006855A ASSY ,CONVEYOR-MOVE_RAIL_P 1 3 AM03…
Page
+$1:+$
42
SM481
PLUS

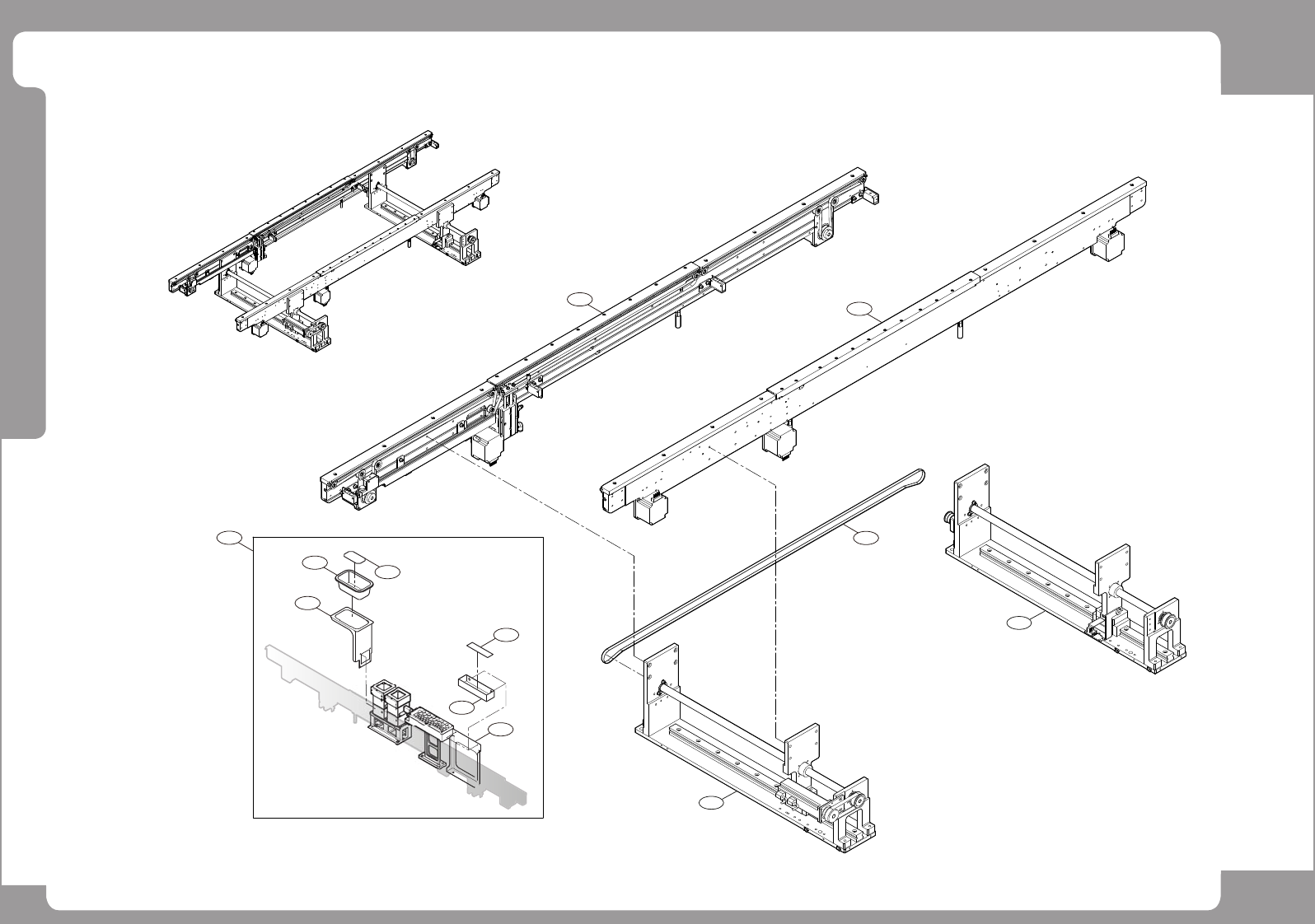

Conveyor Ass’y(1/4)
4
1
2
3
3
7
8
15
17
19
2
1
23
25
27
29
3
1
3
3
3
5
37
14
16
1
8
20
22
24
26
28
30
32
34
36
13
12
11
10
9
8
7
6
5
4
3
2
1
5
A
6
10
9
Page
+$1:+$
43
SM481
PLUS
Conveyor Ass’y(1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-006854A ASSY,CONVEYOR-FIX_RAIL_P 1
2 AM03-006855A ASSY,CONVEYOR-MOVE_RAIL_P 1
3 AM03-006853A ASSY,CONVEYOR-RAIL_TRANSFER_R 2
4 MC05-900044 TIMING BELT 1
A
5 FC29-900010 DUMP BOX 1
6 J70530693C DUMP BOX BKT 2 1
7 FC09-001002A BRACKET-DUMP_BOX 1 OPTION
8 FC09-001003A BRACKET-DUMP-BOX-BKT 1 OPTION
9 FC10-001036A RUBBER-L_DUMP_BOX_ABSORBER;SHEET 1 J73531004A
10 FC10-001037A RUBBER-DUMP_BOX_ABSORBER;SHEET 1 J73531001A
Page
+$1:+$
44
SM481
PLUS
Conveyor Ass’y(2/4)
