Page +$1:+$ 52 SM481 PLUS Long Conveyor Ass’y 1500mm(1/4) Rear side F ront side Left side Right side
Page
+$1:+$
51
SM481
PLUS
Conveyor Ass’y(4/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC19-900014 PULLEY-WIDTH 1
2 MC03-900008 BALL BEARING 2
3 MC13-000042A SCREW,LEAD 1
4 J7053194A BEARING NUT 1
5 J7153330A PULLEY SHAFT 1
6 MC05-900026 TIMING BELT 1
7 MC19-900015 PULLEY-MOTOR 1
8 FC09-002134A BRACKET-SERVO_MOTOR_P 1
9 EP08-900121 SERVO MOTOR 1
10 FC09-002125A BRACKET-SCREW_STAND_P 1
11 FC09-002126B BRACKET-MOVE_STAND_P 1 FC09-002126A
12 MC13-001026 LM GUIDE 1 MC13-900029
13 FC18-900870 LOW PROFILE MOUNTS 2
14 FC05-000207B BASE-WIDE_ADJUST 1 FC05-000207A
15 FC09-002124A BRACKET-FIX_STAND_P 1
Page
+$1:+$
52
SM481
PLUS

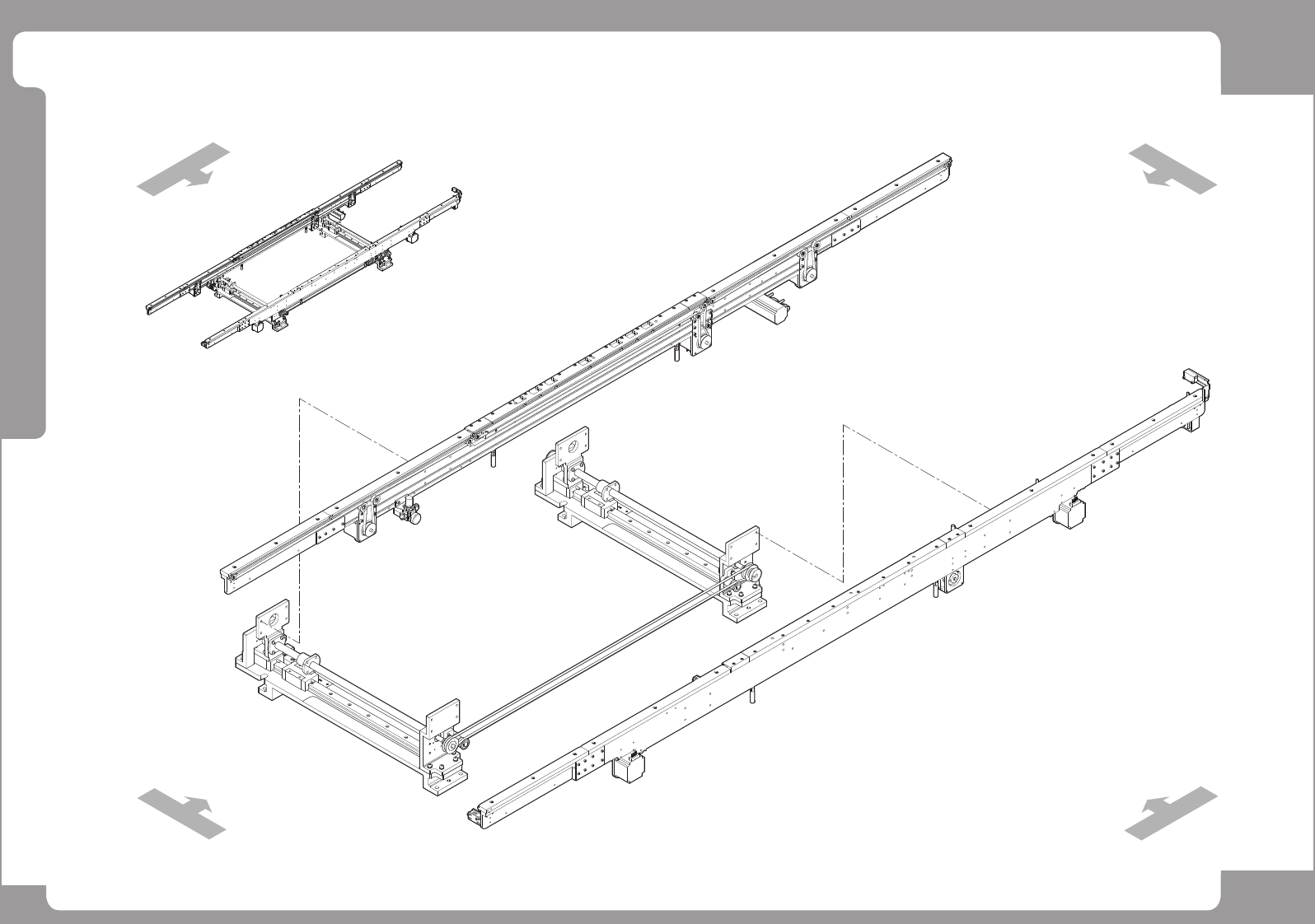

Long Conveyor Ass’y 1500mm(1/4)
Rear side
Front side
Left side
Right side
Page
+$1:+$
53
SM481
PLUS
Long Conveyor Ass’y 1500mm(1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
