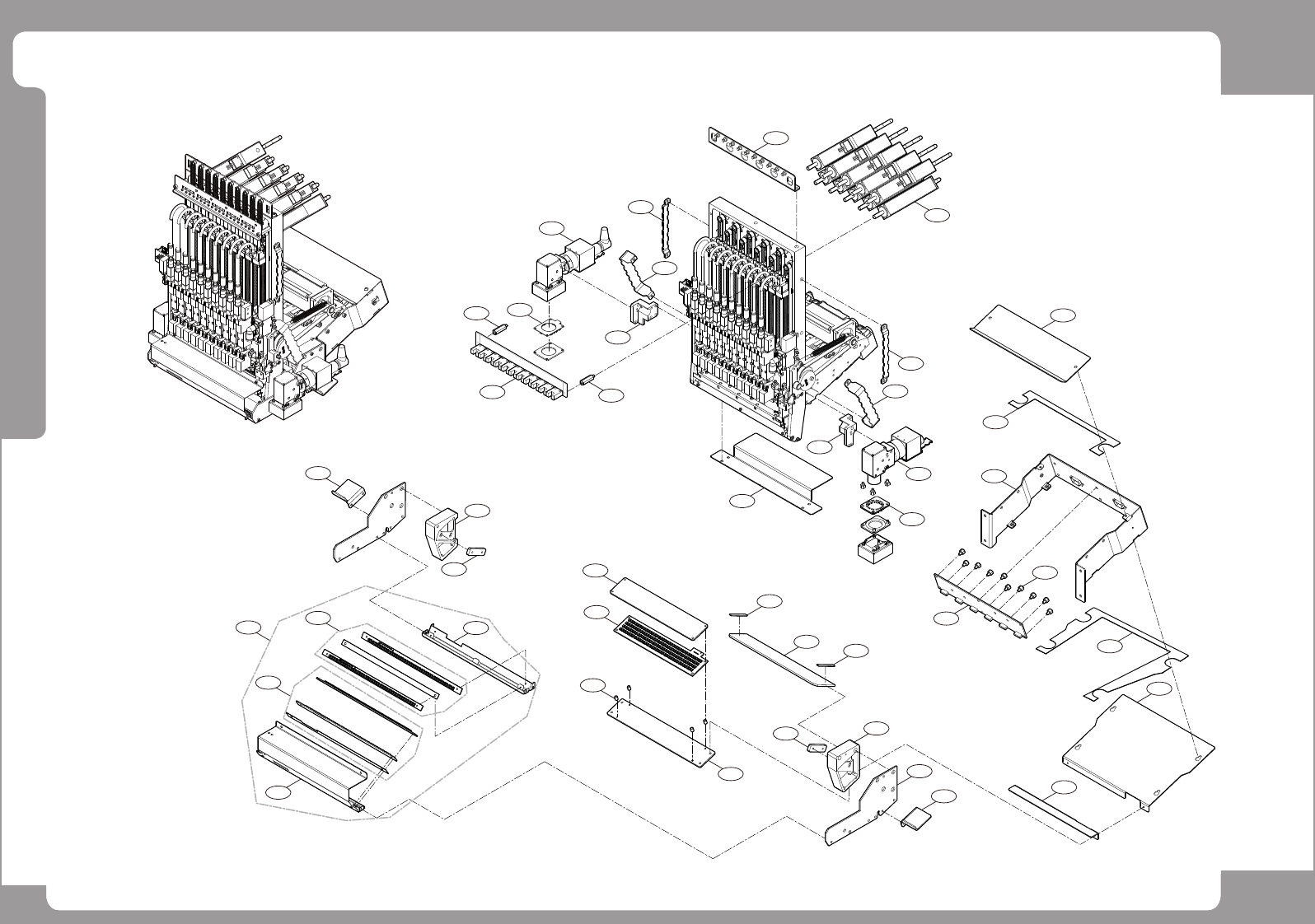

Page +$1:+$ 68 SM481 PLUS Head Ass’y(2/5) 4 6 39 2 10 5 12 15 13 5 7 37 9 14 16 1 4 11 17 8 8 24 25 26 23 18 19 21 22 6 39 27 31 23 32 28 29 29 33 40 41 30 3
Page
+$1:+$
67
SM481
PLUS
Head Ass’y(1/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-000963A HEAD_TOP_COVER 1
2 AM03-005337C ASSY,BOARD-HEAD IF BOARD VER1.0 1 AM03-005337A / AM03-005337B
3 FC36-000186A PLATE-IO_BOARD_SHEET 1 FC30-000990A
4 FC29-900610 HEX SUPPORT 8
5 FC09-001574B BRACKET-HEAD_BOARD_BRACKET 1 FC09-001574A
6 FC09-002301A BRACKET-HEAD_BKT_PANEL 1
7 FC09-001568A BRACKET-FLAT_CABLE_BKT 1
8 FC09-001847A BRACKET-FITTING_BKT 1
9 J1301070 STRAIGHT_CONNETOR_FITTING 6
10 AM03-005341B ASSY,BOARD-MOTOR IF BOARD VER1.0 1 AM03-005341A
11 FC36-000187A PLATE-MOTOR_IF_BOARD_SHEET 1 FC30-000991A
12 FC09-001576A BRACKET-IF_BOARD_BKT 2
13 FC29-900148 HANDLE BG-10 1
14 FC09-001690A BRACKET-HEAD_BKT_FIX 1
15 FC30-001147A PLATE-REF_PLATE 1
16 J71541016A HARNESS_SUPPORT 2
Page
+$1:+$
68
SM481
PLUS
Head Ass’y(2/5)
4
6
39
2
10
5
12
15
13
5
7
37
9
14
16
1
4
11
17
8
8
24
25
26
23
18
19
21
22
6
39
27
31
23
32
28
29
29
33
40
41
30
3
Page
+$1:+$
69
SM481
PLUS
Head Ass’y(2/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM16-001459A ASSY,CABLE-Z AXIS MOTOR CABLE ASSY 10
2 FC09-004707A BRACKET-Z_SPRING_BKT 1 FC09-001505A
3 AM03-020609A ASSY,BOARD-FIDUCIAL_OUTER_PCB_ASSY 2 STANDARD
AM06-005001A ASSY,PCB SMD-OUTER-LED_PCB ASS'Y_FID. CA 2 BLUE FILTER OPTION
4 J71551021A TIE_MOUNT_2 2
5 FC09-002295A BRACKET-TIE_MOUNT_1 2
6 AM08-004291A ASSY-FID7_LENS_ASSY 2 STANDARD
AM03-021682A ASSY,OPTICS-FIDUCIAL CAMERA_BLUE 2 BLUE FILTER OPTION
7 FC09-004160A BRACKET-FID_BRACKET_2 1 FC09-001554A
8 FC09-001565B BS_CLAMP 2 FC09-001565A
9 FC09-004159A BRACKET-FID_BRACKET_1 1 FC09-001555A
10 FC09-001562A BRACKET-FLY_IO_TOP_COVER 1
11 FC09-001561C BRACKET-FLY_CAM_COVER 1 FC09-001561A/ FC09-001561B
12 FC09-001563B BRACKET-FLY_IO_BOTTOM_COVER 1 FC09-001563A
13 FC29-900610 HEX SUPPORT 10
14 AM06-000358B ASSY,PCB SMD-CAMERA_IO_BD 1 AM06-000358A
15 FC30-000971A PLATE-COAXIAL_COVER 1
16 FC15-001311A COVER-LIGHT_COVER 1
17 RM01-003676A BEAM-SPLITTER 1 EP12-000029A / EP12-000029B
18 RM03-000022A PLASTICS-PLUS_COAXIAL_DIFFUSEER 1
19 AM03-005100C ASSY,OPTICS-FLY_COAXIAL_PCB 1 AM03-005100A/ AM03-005100B
21 FC09-001849A BRACKET-COAXIAL_SPACE 4
22 FC09-001848A BRACKET-COAXIAL_PLATE 1
23 FC09-001565B BRACKET-BS_CLAMP 2 FC09-001565A
24 FC09-001559A BRACKET-FLY_SIDE_PLATE1 1
25 FC09-002296A BRACKET-FLY_SIDE_COVER 2
26 FC30-000976A PLATE-FID_CAM1_COVER 1
27 FC09-001560A BRACKET-FLY_SIDE_PLATE2 1
28 FC30-000975A PLATE-FID_CAM2_COVER 1
29 AM03-007781A ASSY,HEAD-FLY_OUTER_ASSY 1
30 FC36-001068A SHEET-FLY_IO_TOP_COVER 5
