KGE_HSDXg_PL - 第10页
1 5 Nozzle Selection Nozzle KGE-081002 NOZZLE 2 SHOT 1608 T ype 1 11 NOZZLE 2 SHOT 2125 T ype 1 12 NOZZLE 2 SHOT LARGE T ype 1 13 NOZZLE 1 SHOT 0.4 T ype 1 14 NOZZLE 1 SHOT 0.8 T ype 1 15 NOZZLE 1 SHOT 1.5 T ype 1 16 NOZ…
2
4

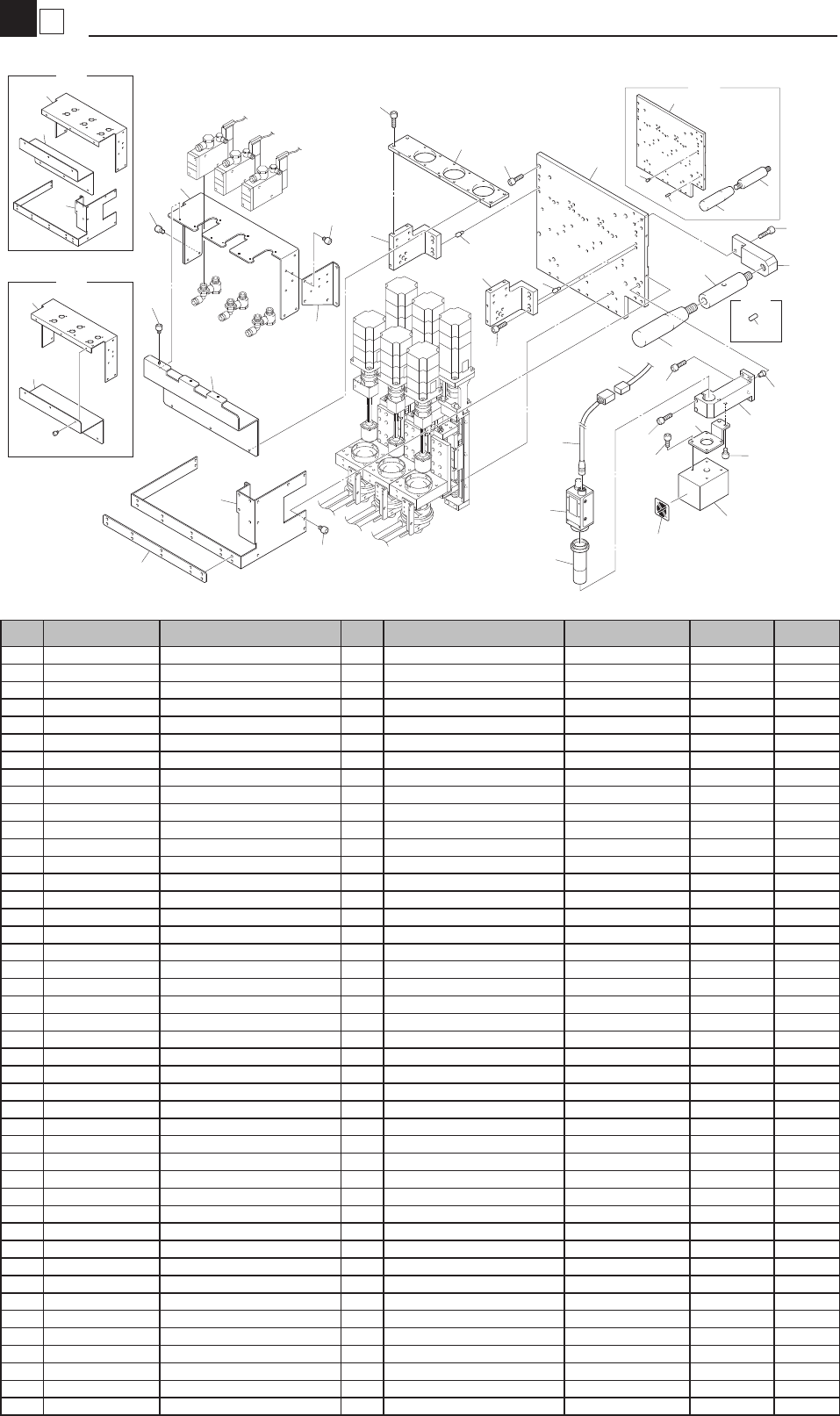

Head Holder
Head
KGE-081002
2
22
28
19
4
1
3
16
3
16
29
17
30
13
14
25
26
15
11
8
7
9
18
10
20
23
23
21
21
1
7
9
16
18
OLD
OLD
18
2
5
6
5
6
OLD
Fig 1
Fig 2
OLD
6
24
12
5
24
23
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV6-M7101-03X PLATE 1,HEAD 1
1-1 KV6-M7101-04X PLATE 1,HEAD 1 (2005/6/30) MB60149 NG
2 KV6-M7155-01X COVER 1,CAMERA 1
2-1 KV6-M7155-02X COVER 1,CAMERA 1 (2005/6/30) MB60149 NG
3
KV6-M7151-01X STAY 1,MOTOR
2
4 KV6-M7152-10X PLATE 1,R MOTOR 1
5 KV6-M7154-00X COVER 1,MOTOR 1
5-1 KV6-M7154-01X COVER 1,MOTOR 1 Fig. 1 (2002/11/12) M2X0030 NG
5-2 KV6-M7154-02X COVER 1,MOTOR 1 Fig. 2 (2008/10/21) ME90080 NG
6
KV6-M7153-01X BRACKET 1,VALVE
1
6-1 KV6-M7153-02X BRACKET 1,VALVE 1 Fig. 1 (2002/11/12) M2X0030 NG
6-2 KV6-M7153-03X BRACKET 1,VALVE 1 Fig. 2 (2008/10/21) ME90080 NG
7 KM5-M7185-00X GRIP 1
7-1 KV7-M2256-00X GRIP 1 (2005/7/20) MB70089 NG
8
KV7-M8140-00X STAY, FID. CAMERA 1
9 KM5-M7184-00X SHAFT GRIP 1
9-1 KM5-M7184-10X SHAFT GRIP 1 (2005/7/20) MB70089 NG
10 KV6-M7195-00X STAY ,HANDLE 1
10-1 KV6-M7195-00X STAY,HANDLE 1 (2005/7/20) MB70093 OK
11 KGM-M8141-00X STAY,FID.LIGHT 1
11-1 KV7-M8141-01X STAY,FID.LIGHT 1 (2006/6/19) MC60070 OK
12 KV6-M7183-10X BRKT.3,LVL.SENSOR 1
12-1 KV6-M7183-11X BRKT.3,LVL.SENSOR 1 (2002/5/30) M250070 OK
13 KGA-M7210-01X CCD CAMERA 1
14 KV7-M7211-00X LENS 095 1
15 KV7-M7600-00X FIDUCIAL LIGHT ASSY 1
16 KM4-M7173-00X LOCATING PIN 6
16-1 90990-43J011 PIN 6 (2008/6/3) ME30136 OK
17 KGA-M66F2-00X C. CABLE ASSY 1 L6M
18
99480-04012 PIN,PARALLEL 2
18-1
KM4-M7173-00X LOCATING PIN 2 (2005/6/30) MB60149 NG
18-2 Delete (2006/9/20) MC90066
19 91317-06018 BOLT HEXAGON, SOCKET 4
20 91317-05018 BOLT HEXAGON, SOCKET 3
21 91317-05014 BOLT HEXAGON, SOCKET 8
22 91317-04014 BOLT HEXAGON, SOCKET 4
23 91317-04010 BOLT HEXAGON, SOCKET 12
24 91317-04006 BOLT HEXAGON, SOCKET 9
25 91317-03018 BOLT HEXAGON, SOCKET 2
26 91317-03008 BOLT HEXAGON, SOCKET 4
27
28 KV6-M7156-50X PLATE, CABLE 1
29 KGA-M66F4-00X C. CABLE ASSY 1 1.7M
30 KV7-M7165-00X SEAL DON'T TOUCH 1
1
5

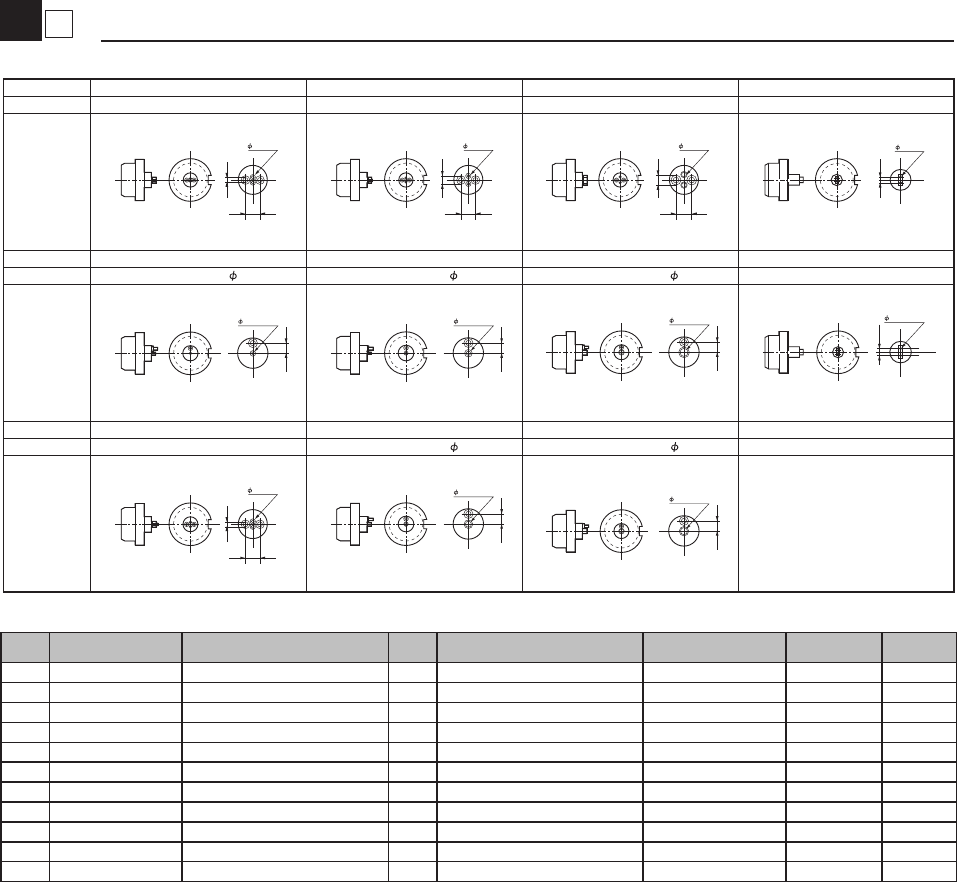

Nozzle Selection
Nozzle
KGE-081002
NOZZLE 2 SHOT 1608
Type 111
NOZZLE 2 SHOT 2125
Type 112
NOZZLE 2 SHOT LARGE
Type 113
NOZZLE 1 SHOT 0.4
Type 114
NOZZLE 1 SHOT 0.8
Type 115
NOZZLE 1 SHOT 1.5
Type 116
NOZZLE 2 SHOT 1608(P0.8)
Type 11A
NOZZLE 1 SHOT 1.0
Type 11B
NOZZLE 1 SHOT 1.3
Type 11C
Nozzle Type
Name
Size
Nozzle Type
Name
Size
Nozzle Type
Name
Size
0.4
2.4
0.4
0.9
0.5
2.4
1.3
0.9
3.2
1.8
1.6
0.8
1.6
1.0
1.6
1.5
1.8
1.3
1.8
0.4
2.4
0.8
NOZZLE LBA (1608 A.P)
Type LBA
NOZZLE LCA (2012 A.P)
Type LCA
0.4
0.4
1.2
0.9
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV6-M7113-12X NOZZLE 2 SHOT 1608 1 Type111
2 KV6-M7113-23X NOZZLE 2 SHOT 2125 1 Type112
3 KV6-M7113-32X NOZZLE 2 SHOT LARGE 1 Type113
4 KV6-M7113-42X NOZZLE 1 SHOT 0.4 1 Type114
5 KV6-M7113-52X NOZZLE 1 SHOT 0.8 1 Type115
6 KV6-M7113-62X NOZZLE 1 SHOT 1.5 1 Type116
7 KV6-M711A-00X NOZZLE 2 SHOT1608(P0.8) 1 Type11A
8 KV6-M711B-00X NOZZLE 1 SHOT 1.0 1 Type11B
9 KV6-M711C-00X NOZZLE 1 SHOT 1.3 1 Type11C
10 KV6-M71LB-A0X NOZZLE LBA (1608A.P) 1 TypeLBA
11 KV6-M71LC-A0X NOZZLE LCA (2012A.P) 1 TypeLCA
1
6

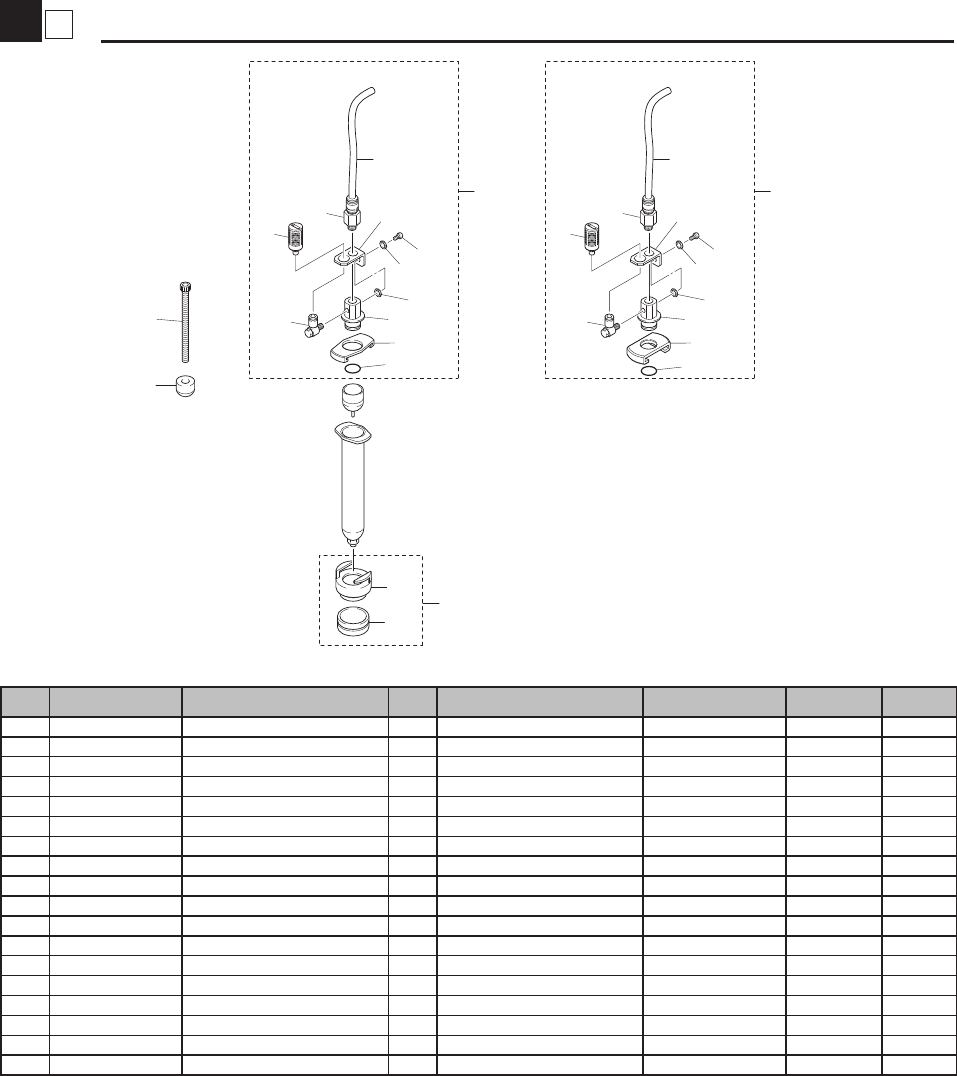

Attachment 10cc(Op.)
Attachment
KGE-081002
16
17
18
11
12
MUSASHI, IEI 10cc EFD 10cc
4
2
3
10
9
9
7
1
5
13
8
6
4
2
14
10
9
9
7
1
5
15
8
6
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KM4-M7175-00X MUFFLER: ANB1-C06
1
2 KM4-M7180-00X CAP, SYRINGE 10CC 1
3 KM4-M7181-00X SYRINGE COVER (10CC) 1
4
90200-20J110 O-RING
1
5 KM4-M7182-00X TUBE: TSU0805N 350
6
$TSR8-01 JOINT 1
7 $SL6-M5 JOINT 1
8 KV6-M7179-00X PLATE, STOPPER 1
9 90990-22J005 PACKING 2
10 91317-05008 BOLT HEX. SOCKET HEAD 1
11 KM4-M71H2-00X WEIGHT PISTON (10CC) 1
12 91317-05090 BOLT HEX. SOCKET HEAD 1
13 KV6-M7172-10X ADAPTA: 10CC 1 MUSASHI, IEI 10cc
14 KM4-M7181-10X SYRINGE COVER EFD 10 1 EFD 10cc
15 KV6-M7172-30X ADAPTA ASSY EFD 10CC 1 EFD 10cc
16
KV6-M7191-10X ADAPTA, RING (10CC)
1
17
KV6-M7193-00X NUT, ADAPTA (30CC)
1
18
KV6-M7190-10X HOLDER, ADAPTA (10CC)
1
