KGE_HSDXg_PL - 第11页

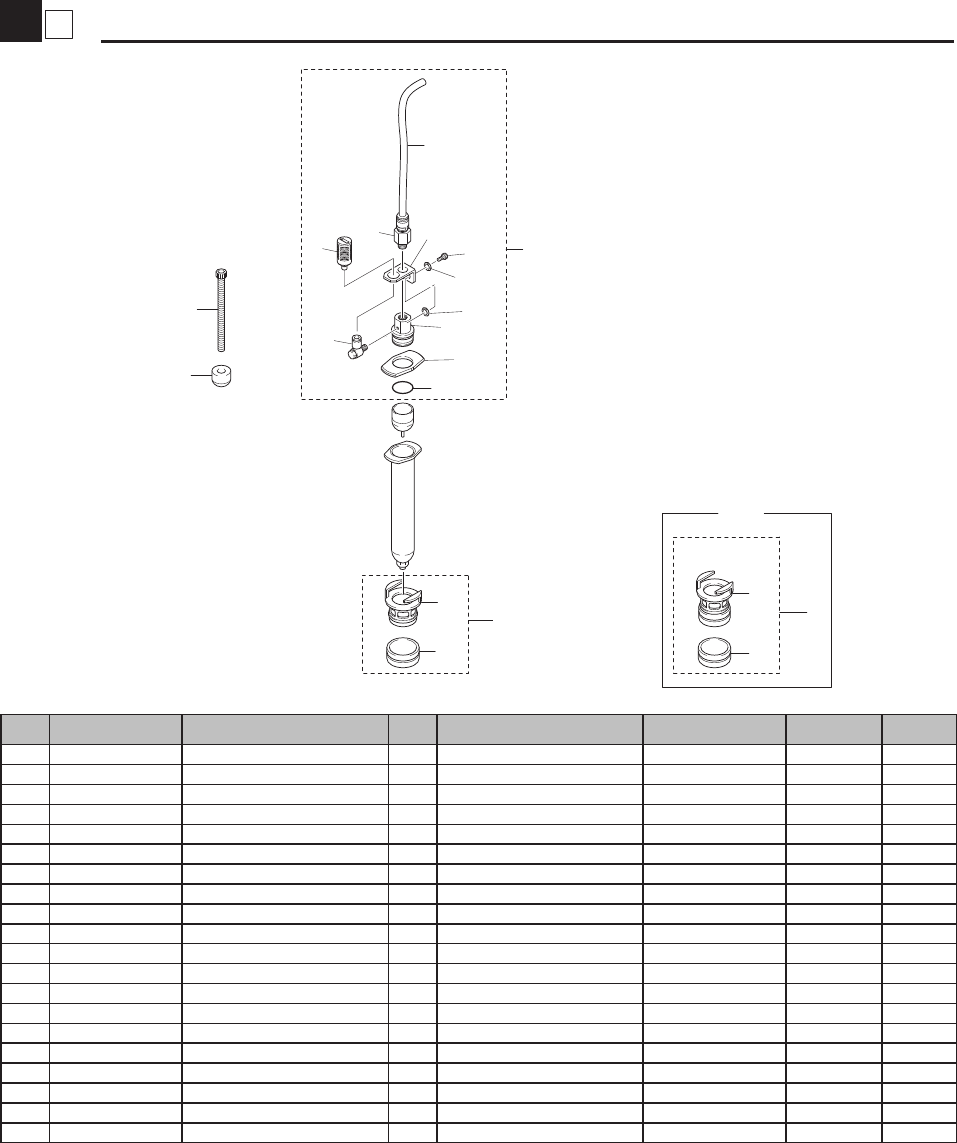

1 6 Attachment 10cc(Op.) Attachment KGE-081002 16 17 18 1 1 12 MUSASHI, IEI 10cc EFD 10cc 4 2 3 10 9 9 7 1 5 13 8 6 4 2 14 10 9 9 7 1 5 15 8 6 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. …
1
5
Nozzle Selection
Nozzle
KGE-081002
NOZZLE 2 SHOT 1608
Type 111
NOZZLE 2 SHOT 2125
Type 112
NOZZLE 2 SHOT LARGE
Type 113
NOZZLE 1 SHOT 0.4
Type 114
NOZZLE 1 SHOT 0.8
Type 115
NOZZLE 1 SHOT 1.5
Type 116
NOZZLE 2 SHOT 1608(P0.8)
Type 11A
NOZZLE 1 SHOT 1.0
Type 11B
NOZZLE 1 SHOT 1.3
Type 11C
Nozzle Type
Name
Size
Nozzle Type
Name
Size
Nozzle Type
Name
Size
0.4
2.4
0.4
0.9
0.5
2.4
1.3
0.9
3.2
1.8
1.6
0.8
1.6
1.0
1.6
1.5
1.8
1.3
1.8
0.4
2.4
0.8
NOZZLE LBA (1608 A.P)
Type LBA
NOZZLE LCA (2012 A.P)
Type LCA
0.4
0.4
1.2
0.9
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV6-M7113-12X NOZZLE 2 SHOT 1608 1 Type111
2 KV6-M7113-23X NOZZLE 2 SHOT 2125 1 Type112
3 KV6-M7113-32X NOZZLE 2 SHOT LARGE 1 Type113
4 KV6-M7113-42X NOZZLE 1 SHOT 0.4 1 Type114
5 KV6-M7113-52X NOZZLE 1 SHOT 0.8 1 Type115
6 KV6-M7113-62X NOZZLE 1 SHOT 1.5 1 Type116
7 KV6-M711A-00X NOZZLE 2 SHOT1608(P0.8) 1 Type11A
8 KV6-M711B-00X NOZZLE 1 SHOT 1.0 1 Type11B
9 KV6-M711C-00X NOZZLE 1 SHOT 1.3 1 Type11C
10 KV6-M71LB-A0X NOZZLE LBA (1608A.P) 1 TypeLBA
11 KV6-M71LC-A0X NOZZLE LCA (2012A.P) 1 TypeLCA
1
6
Attachment 10cc(Op.)
Attachment
KGE-081002
16
17
18
11
12
MUSASHI, IEI 10cc EFD 10cc
4
2
3
10
9
9
7
1
5
13
8
6
4
2
14
10
9
9
7
1
5
15
8
6
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KM4-M7175-00X MUFFLER: ANB1-C06
1
2 KM4-M7180-00X CAP, SYRINGE 10CC 1
3 KM4-M7181-00X SYRINGE COVER (10CC) 1
4
90200-20J110 O-RING
1
5 KM4-M7182-00X TUBE: TSU0805N 350
6
$TSR8-01 JOINT 1
7 $SL6-M5 JOINT 1
8 KV6-M7179-00X PLATE, STOPPER 1
9 90990-22J005 PACKING 2
10 91317-05008 BOLT HEX. SOCKET HEAD 1
11 KM4-M71H2-00X WEIGHT PISTON (10CC) 1
12 91317-05090 BOLT HEX. SOCKET HEAD 1
13 KV6-M7172-10X ADAPTA: 10CC 1 MUSASHI, IEI 10cc
14 KM4-M7181-10X SYRINGE COVER EFD 10 1 EFD 10cc
15 KV6-M7172-30X ADAPTA ASSY EFD 10CC 1 EFD 10cc
16
KV6-M7191-10X ADAPTA, RING (10CC)
1
17
KV6-M7193-00X NUT, ADAPTA (30CC)
1
18
KV6-M7190-10X HOLDER, ADAPTA (10CC)
1
2
6
Attachment 30cc
Attachment
KGE-081002
15
16
11
12
14
4
2
3
10
9
9
7
1
5
8
6
17
16
18
13
EFD 30cc
MUSASHI, IEI ,EFD 30cc
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KM4-M7175-00X MUFFLER: ANB1-C06
1
2 KM4-M7176-01X CAP, SYRINGE IEI 30CC 1
3 KM4-M7177-20X SYRINGE COVER 30CC 1
4
90990-17J019 O-RING
1
5 KM4-M7182-00X TUBE: TSU0805N 350 mm
6
$TSR8-01 JOINT 1
7 $SL6-M5 JOINT 1
8 KV6-M7179-00X PLATE, STOPPER 1
9 90990-22J005 PACKING 2
10 91317-05008 BOLT HEX. SOCKET HEAD 1
11 KG3-M7118-00X PISTON 1
12 91317-05090 BOLT HEX. SOCKET HEAD 1
13 KGM-M7172-00X ADAPTA ASSY 30CC 1
14 KV6-M7190-00X HOLDER, ADAPTA (30CC) 1 MUSASHI, IEI ,EFD30cc
15 KV6-M7191-01X ADAPTA, RING (30CC) 1
16
KV6-M7193-00X NUT, ADAPTA (30CC)
1
17
KV6-M7191-20X ADAPTA, RING (EFD30CC)
1
17-1
Delete (2005/9/10) MB90032
18
KV6-M7190-20X HOLDER, ADAPTA (EFD30CC)
1
EFD30cc
18-1 Delete (2005/9/10) MB90032
