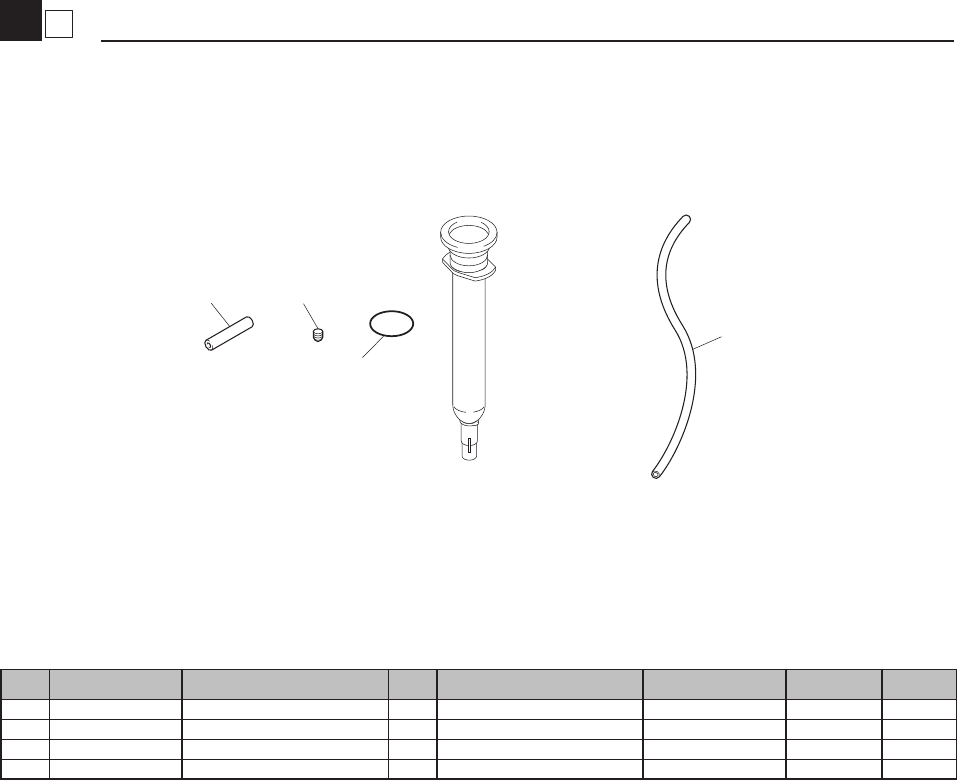

1 8 Thermo Control Box / DIS.Control Unit DIS.Control Unit KGE-081002 1 21 22 23 2 3 13 4 5 7 6 8 30 17 18 19 20 27 28 29 9 12 13 15 15 13 13 16 16 13 13 10 13 1 1 10 24 25 26 4 8 14 14 OLD No. Part No. Part Name Q'…
8
7
Lock Lever
Conveyor
KGE-081002
4
18
3
1
2
9
12
7
17
10
5
16
12
13
8
6
14
16
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.

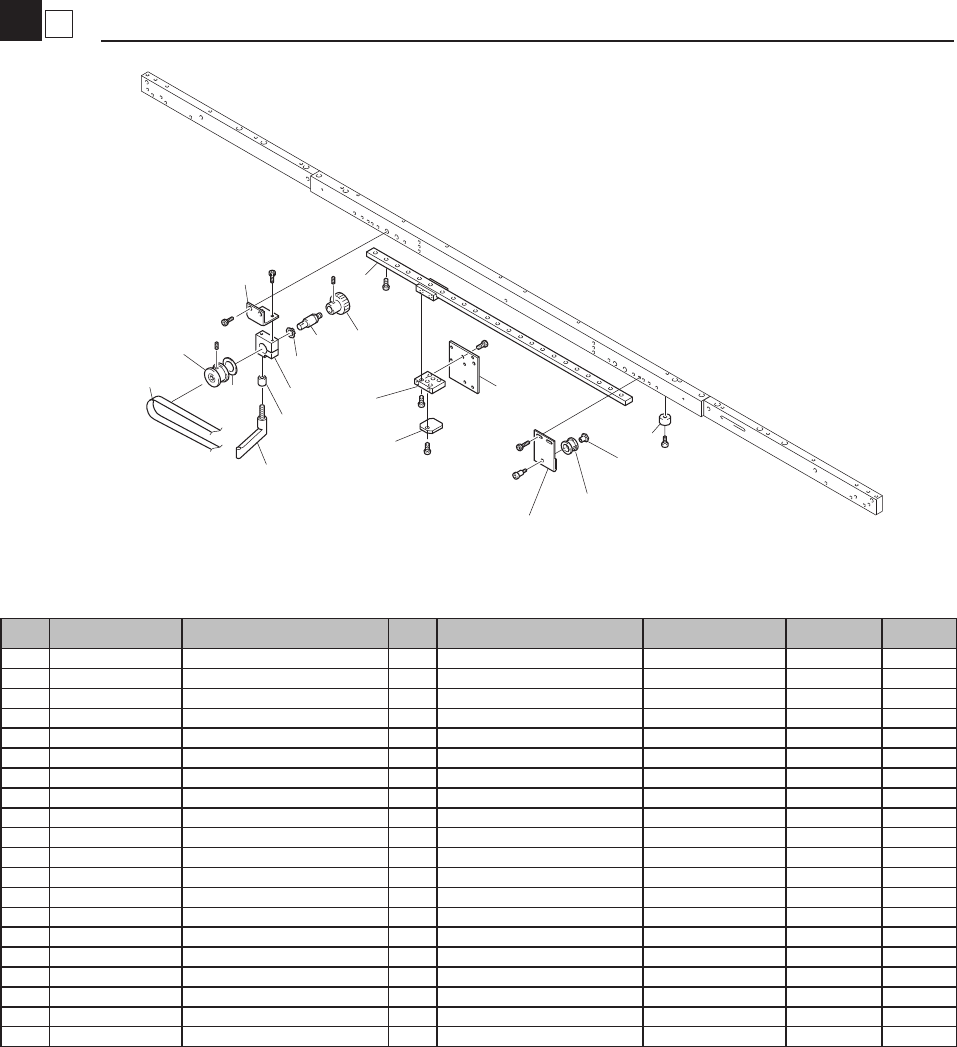

1 KM0-M9182-00X PLATE GUIDE 1
2 KG7-M9183-00X BRACKET BELT 1
3 KM8-M9189-00X GUIDE 1
4 KG7-M9127-00X STOPPER LOCATE PIN 1
5 KV7-M9188-00X BELT 1 1305-3GT-6
6 KV7-M9192-00X PLATE,IDLER 1
7 KV7-M9185-00X HOUSING,SHAFT 1
8 KG7-M9190-00X HANDLE 1
9 KV7-M9191-00X SHAFT 1 1
10 KV7-M9193-00X LEVER,CLAMP 1
11 KU0-M9194-000 WASHER 1
11-1 90990-28J068 WASHER,PLAIN 1 (2007/12/18) MDX0125 OK
12 99009-15400 CIRCLIP 1
13 KV7-M9195-00X BRKT.,HOUSING 1
14 KV7-M9196-02X SHAFT 2 1
16 KH2-M9105-11X PULLEY,MOTOR:P30-3GT 2
17 KV7-M9193-101 COLLAR LEVER 1
17-1 90990-41J059 COLLAR 1 (2008/4/17) ME20197 OK
18 KGA-M9173-00X PLATE2 2 LOCATION 1
1
8
Thermo Control Box / DIS.Control Unit
DIS.Control Unit
KGE-081002
1
21
22
23
2
3
13
4
5
7
6
8
30
17
18
19
20
27
28
29
9
12
13
15
15
13
13
16
16
13
13
10
13
11
10
24
25
26
4
8
14
14
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.

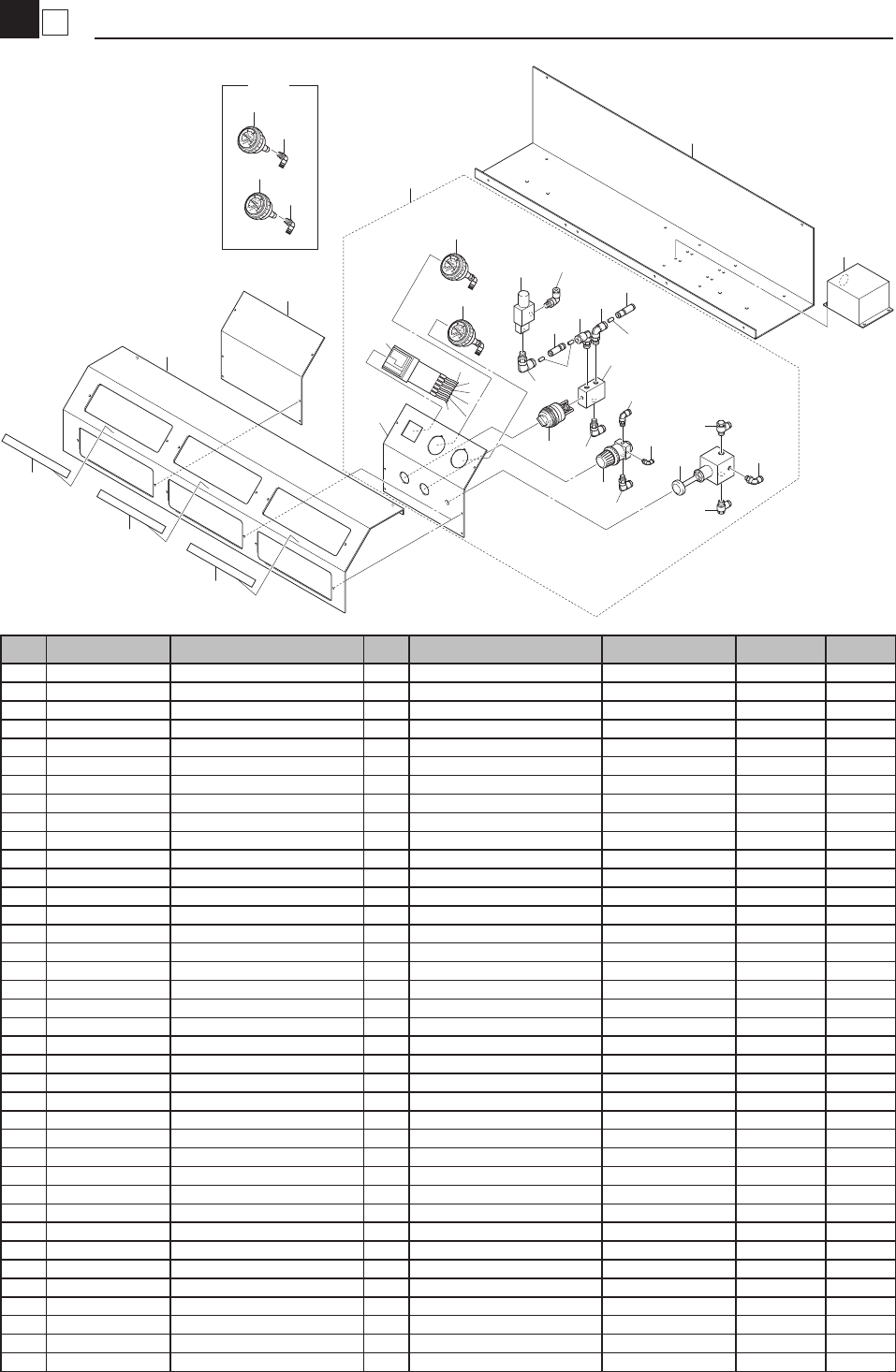

1 KGE-M6419-00X THERMO CONTROL ASSY 1 OMRON(E5CN)
1-1 KGE-M6419-01X THERMO CONTROL ASSY 1 PANA(KT4) (2003/3/24) M330057 NG
2 KV6-M8584-00X STAY 1, REGULATOR 1
3 KM4-M8588-00X AQUMRATE REGULATOR 1
4 KK5-M8589-00X GAUGE 1
4-1 KK5-M8589-A0X GAUGE ASSY. 1 (2001/7/5) M170027 OK
5 KG3-M8591-00X REGULATOR 1
6 KV6-M8591-00X TAC VALVE 1
7 KU4-M8594-00X TAC SELECT 1
8 KU4-M8595-00X PRESSURE GAUGE 1
8-1 KU4-M8595-A0X PRESSURE GAUGE ASSY. 1 (2001/7/5) M170027 OK
9 K40-M8527-00X MICRO EJECTOR 1
10 $SL10-02 JOINT 2
11 $TL8-01 JOINT 1
12 $TL4-02 JOINT 1
13 $TL4-01 JOINT 7
14 SC4-M5B SPEED CONTROLLER 2
14-1 Delete (2001/7/5) M170027
15 $CVU4 JOINT 2
16 $TE4-R AIR HOSE 3
17 KV6-M8581-00X BASE,BOX 1
17-1 KV6-M8581-01X BASE,BOX 1 (2002/6/26) M260061 OK
18 KGE-M53E3-00X TRANS 1 ASSY 1
19 KV6-M8583-00X COVER BOX 1
20 KV6-M8585-10X PLATE,BLANK 2
21 KGE-M66M7-00X HNS, THERMO UNIT-RELAY 1 (2003/9/16) M390014
22 KGE-M66M6-01X HNS, HEATER INTLCK 1 (2003/9/16) M390014
23 KGE-M66M5-00X HNS, PWR THERMO UNIT-SSR 1 (2003/3/24) M330057 NG
24 KGE-M66M1-01X HNS, PWR THERMO UNIT 1
24-1 KGE-M66M1-02X HNS, PWR THERMO UNIT 1 (2003/3/24) M330057 NG
25 KGE-M66M2-00X HNS, THERMO SENSOR1 1
25-1 3 Delete (2002/6) M260032
26 KGE-M66M3-00X HNS, THERMO SENSOR2 1
26-1 KGE-M66M3-01X HNS, PWR THERMO UNIT 1 (2002/6) M260032
27 KV6-M8586-30X SEAL 3 1
28 KV6-M8586-20X SEAL 2 1
29 KV6-M8586-10X SEAL 1 1
30 KGE-M8580-00X DIS. CONTROL UNIT 1
