1 12 Dot Station Dot Station KGE-081009 3 15 5 5 23 22 8 22 12 27 27 24 13 1 1 14 2 18 35 35 16 33 32 7 1 21 21 17 16 17 31 35 35 25 16 10 29 4 28 30 28 16 17 31 25 20 19 13 26 34 13 9 6 OLD No. Part No. Part Name Q&apos…
1
11

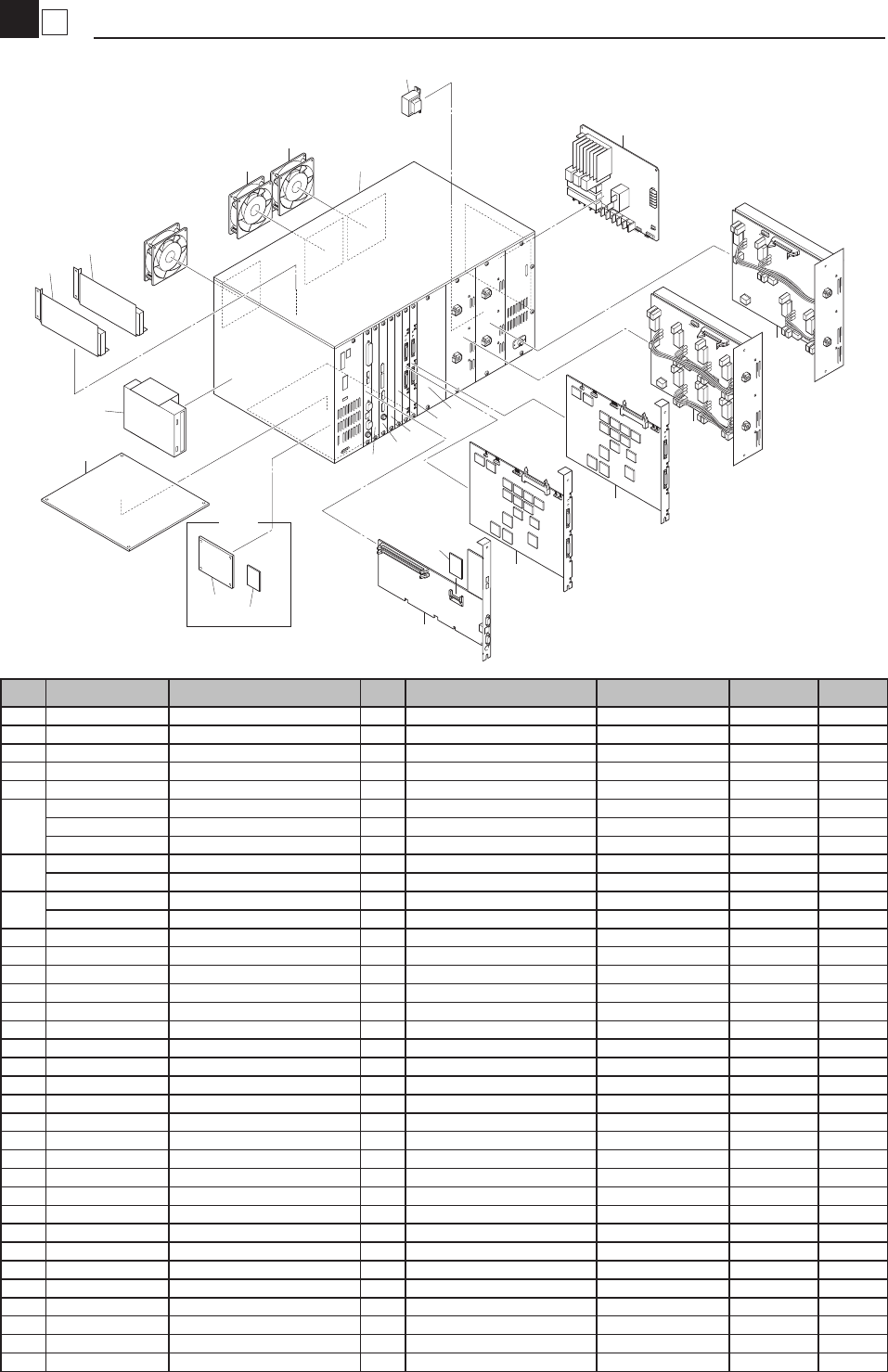

Main Box
Controller
KGE-081009
2
18
3
3
6
8
9
14
15
5
10
13
19
10
11
10
12
1
7
4
16
17
17
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M4110-00X BOX ASSY. C/R 1
2 KGA-M4510-00X MOTHER BOARD ASSY. 1
3 KM5-M5840-03X SERVO BOARD ASSY 2
3-1 KM5-M5840-04X SERVO BOARD ASSY 2 2002/5/9 M100113 OK
3-2 KM5-M5840-05X SERVO BOARD ASSY 1 H010235 (2007/1/12) MCY0115 SET
4
KW3-M4209-00X SYSTEM UNIT ASSY. 1 S.T.D (2003/9/24) M390061
KW3-M4209-10X SYSTEM UNIT ASSY. 1 IT OPTION without CLI FEEDER (2003/9/24) M390061
KW3-M4209-21X SYSTEM UNIT ASSY. 1 IT OPTION with CLI FEEDER (2004/2/10) M420003
4-1
KW3-M4209-30X SYSTEM UNIT ASSY. 1 IT OPTION without CLI FEEDER 2007/6/6 MD30054 NG
KW3-M4209-40X SYSTEM UNIT ASSY. 1 IT OPTION with CLI FEEDER (2007/3/22) MD30054 NG
4-2
KW3-M4209-31X SYSTEM UNIT ASSY 1 IT OPTION without CLI FEEDER (2008/5/26) ME50031 OK
KW3-M4209-40X SYSTEM UNIT ASSY 1 IT OPTION with CLI FEEDER (2008/3/12) ME20233 OK
5 KJ0-M5810-L4X DRIVER BOARD ASSY. 1 (1A)
5-1 KJ0-M5810-L5X DRIVER BOARD ASSY. 1 H010235 (2007/1/12) MCY0115 SET
6 KJ0-M5810-K4X DRIVER BOARD ASSY. 1 (1B)
6-1 KJ0-M5810-K5X DRIVER BOARD ASSY. 1 H010235 (2007/1/12) MCY0115 SET
7 KM5-M5882-11X D. POWER ASSY. 1
8 KJ0-M4134-10X PANEL NO SERVO 1
9 KJ0-M4132-10X PANEL .NO DRIVER 1
10 KGA-M4185-10X FAN MOTOR ASSY 3
11 KGA-M5303-00X SW POWER DC5 1 PAA150F-5
11-1 KGS-M5303-00X SW POWER DC5 1 PBA150F-5 2007/6/27 MCY0159 NG
12 KW7-M5303-10X SW POWER DC12 1 PAA150F-12
12-1 KGS-M5303-10X SW POWER DC12 1 PBA150F-12 2007/6/27 MCY0159 NG
13 KGA-M53E2-00X TRANS 1 ASSY KGA 1
14 KV1-M441H-17X VISION UNIT ASSY. 1
15 KW3-M4220-10X APPLE BOARD ASSY. 1
15-1 KW3-M4220-11X APPL BOARD ASSY 1 *OK : after VGOS V1.21 R1.000 (2008/4/11) ME30249 *NG
16 KGA-M4136-10X PANEL, NO VISION 1
17 KW3-M4255-00X FLASH DISK 1
17-1 KGN-M4255-00X FLASH DISK 1 With ADAPTER 2003/6/27 M230020 OK
17-2 KGN-M4255-20X FLASH DISK 1 Without ADAPTER (2003/11/13) M3X0032 NG
18 KW3-M4256-00X CD-ROM DRIVE 1
19 KW3-M4230-00X FLASH BOARD ASSY 1
19-1 KGN-M4230-00X FLASH BOARD ASSY 1 (2003/11/13) M3X0032
19-2 Delete (2007/3/27) MD30054
1
12

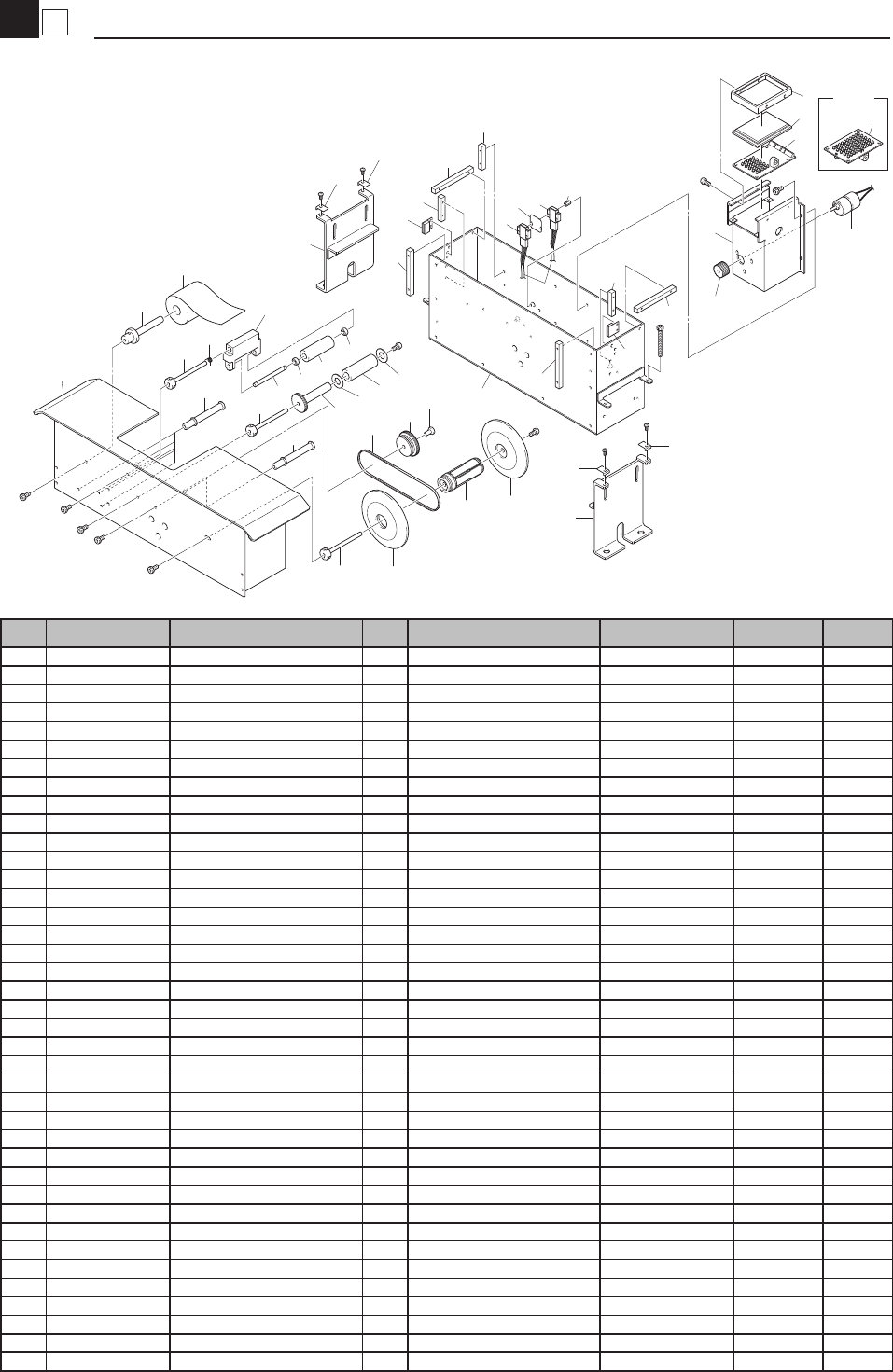

Dot Station
Dot Station
KGE-081009
3
15
5
5
23
22
8
22
12
27
27
24
13
11
14
2
18
35
35
16
33
32
7
1
21
21
17
16
17
31
35
35
25
16
10
29
4
28
30
28
16
17
31
25
20
19
13
26
34
13
9
6
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGE-M9301-00X CASE 1 1
2 KGE-M9302-00X CASE 2 1
3 KGE-M9303-00X CASE 3 1
4 KK3-M9304-01X DIFFUSER 1
5 KK3-M9305-00X PAPER GUIDE 1 5
6 KK3-M9307-00X BLOCK 1 1
7 KGE-M9308-00X STAY 1 1
8 KK3-M9309-00X ROLLER 1
9 KK3-M9310-00X SPRING 1
10 KK3-M9311-00X GEAR 1 1
11 KK3-M9312-00X GEAR 2 1
12 KK3-M9313-00X GEAR 3 1
13 KK3-M9314-00X SHAFT 1 3
14 KK3-M9315-00X SHAFT 2 1
15 KK3-M9316-00X SHAFT 3 1
16 KK3-M9317-00X GUIDE 1 4
17 KK3-M9318-00X GUIDE 2 5
18 KK3-M9319-00X REEL 1 1
19 KK3-M9320-00X REEL 2 1
20 KK3-M9321-00X REEL 3 1
21 KK3-M9323-00X LIGHT BOARD
1
21-1
KW7-M9360-00X DOT ST. BOARD ASSY 1 2001/11/30 H6357
22 KK3-M9324-00X FLANGE 2
23 KK3-M9325-00X ROLLER 1
24 KK3-M9326-00X SHAFT 4 1
25 KV6-M9327-00X FOOT 2
26 KK3-M9329-00X BELT 1
27 KK3-M9331-00X BRG. 4
28 KK3-M9332-00X SENSOR 2
29 KGE-M9333-00X MOTOR ASSY 1
30 KK3-M9334-00X PLATE SENSOR 2
30-1 Delete (2002/1/17) M210057
31 KK3-M9335-00X MAGNET 2
32 KH5-M7153-00X PNP CHANGER 2
32-1 Delete (2002/3/7) M230016
33 91C00-03010 SPACER : M3X10L 4
33-1 Delete (2002/1/17) M210057
34 KM4-M9330-01X ROLL PAPER 1
35 KK3-M9337-00X PLATE 4
1
13

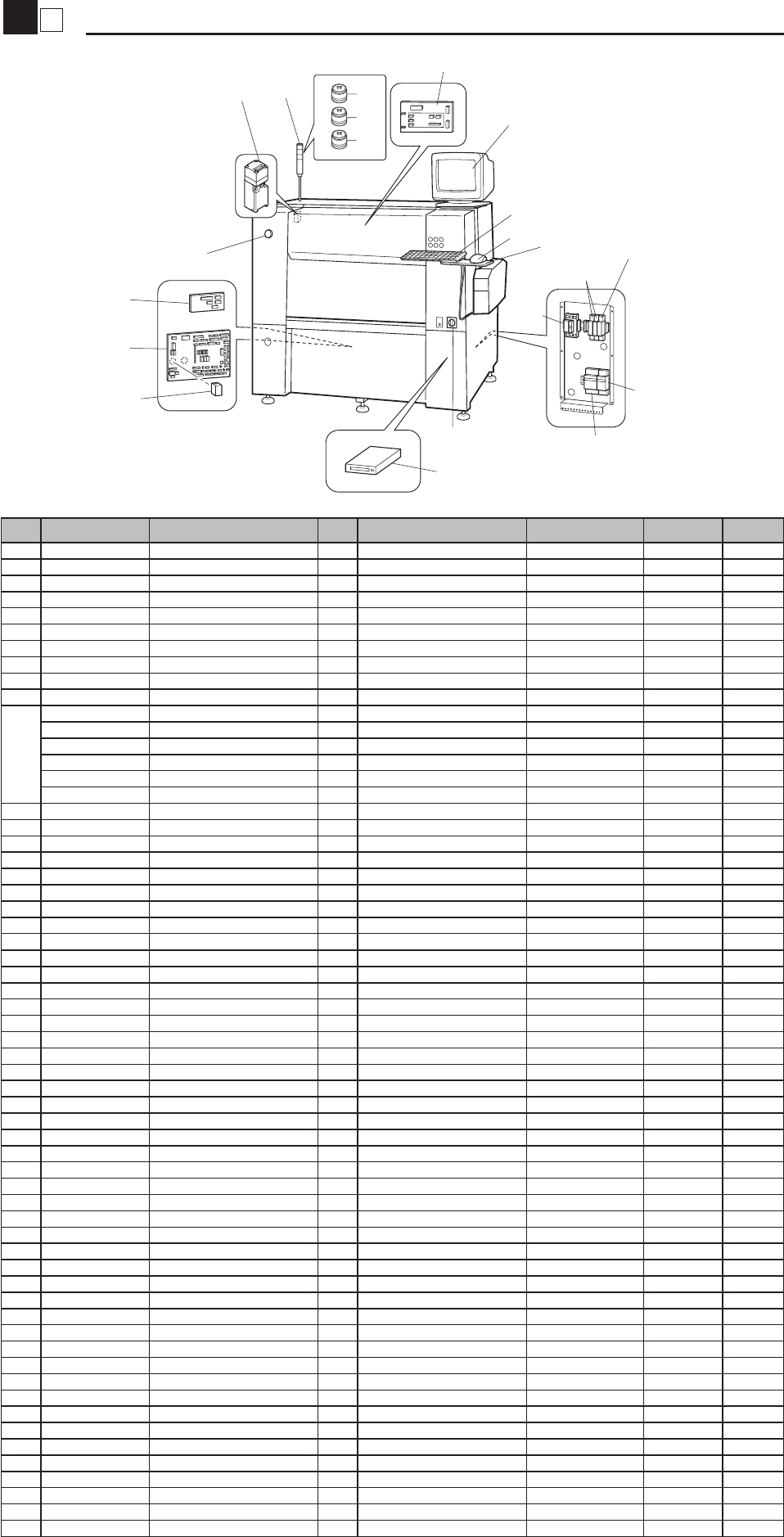

Monitor,etc
Exterior,etc
KGE-091224
19,20
21,22
14,27
17,18
15,16
8
9
26
1
6
7
10
2,11
3
4
5
13
12
23
24
25
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KW8-M5119-00X MONI.15"COLOR ASSY 1
1-1 KW8-M5119-01X MONI.15"COLOR ASSY 1 2005.07.18 MA60007 OK
1-2 KW8-M5119-02X MONI.15"LCD ASSY 1 (2005/11/11) MB00070 OK
1-3 KW8-M5119-03X MONI.15"LCD ASSY 1 (2006/6/20) MC60059 OK
1-4
KW8-M5119-04X MONI.15"LCD ASSY 1 (2008/5/29) ME50008 OK
2 KW3-M5150-00X KEYBOARD J 1 Japanese
2-1 KW3-M5150-01X KEYBOARD J 1 Japanese (2003/09/26) M390112 OK
2-2 KW3-M5150-50X KEYBOARD J 1 Japanese (2005/11/30) MBX0153 OK
3 KW7-M5126-00X SAFETY SWICTH 2
3-1 KW7-M5126-F0X SAFETY SW UNIT ASSY 2 (2009/12/1) MFX0093 OK
4
KV7-M4899-10X LIGHT 1 ASSY (L=300) 1 (L=300) STD
KV7-M4899-20X LIGHT 1 ASSY (L=350) 1 (L=350)
KV7-M4899-30X LIGHT 1 ASSY (L=450) 1 (L=450)
KV7-M4899-40X LIGHT 1 ASSY (L=550) 1 (L=550)
KV7-M4899-50X LIGHT 1 ASSY (L=650) 1 (L=650)
KV7-M4899-60X LIGHT 1 ASSY (L=750) 1 (L=750)
5 KH1-M5138-00X SWITCH EMG ASSY 1
5-1 KGK-M5138-00X SWITCH EMG ASSY 1 (2003/04/25) M340115 OK
6 KM5-M6554-10X MAIN SWITCH 1
7 KG7-M530H-01X FLOPPY DISK DRIVE 1
7-1 KG7-M530H-02X FLOPPY DISK DRIVE 1 (2006/1/6) MBY0212 OK
8 KM5-M4580-02X I/O CONV. UNIT ASSY. 1
8-1 KM5-M4580-03X I/O CONV. UNIT ASSY. 1 (2009/10/08) MF00001 OK
8-2 KM5-M4580-04X I/O CONV. UNIT ASSY. 1 (2017/1/12) MNY0131 OK
9 KGA-M4550-10X CONNECTION BOARD ASSY 1
10 KV8-M4570-XXX I/O HEAD UNIT ASSY. 1 Service information No.230
10-1 KV8-M4570-10X I/O HEAD UNIT ASSY. 1 spare parts for old machine (2005/10) MB70136 OK
10-2 KV8-M4570-01X I/O HEAD UNIT ASSY. 1 parts for new machine only (2005/10) MB70136 NG
11 KW3-M5150-10X KEYBOARD E 1 English
11-1 KW3-M5150-11X KEYBOARD E 1 English (2003/09/26) M390112 OK
11-2 KW3-M5150-60X KEYBOARD E 1 English (2005/11/30) MBX0153 OK
12 KW3-M5169-00X MOUSE 1 (2002/02/20) M220095 OK
12-1 KW3-M5169-01X MOUSE 1 (2003/08/05) M380010 OK
12-2 KW3-M5169-02X MOUSE 1 (2004/02/10) M420037 OK
12-3 KW3-M5169-03X MOUSE 1 (2005/04/19) MB40014 OK
12-4 KW3-M5169-04X MOUSE 1 (2006/7/26) MC70085 OK
13 KGB-M1391-00X MOUSE PAD 1
14 KM5-M6510-00X BREAKER ASSY 1 GV2ME 20/13-18A
15 KM6-M539M-00X PROTECTOR ACCES.3P 1
15-1 KM6-M539M-01X PROTECTOR ACCES.3P 1 (2008/6/20) ME60163 Set
16 KH4-M6514-00X CIRCUIT PROTECTOR 4 1
16-1 KH4-M6514-01X CIRCUIT PROTECTOR,3P 1 CP30-BA AC10A (2008/6/20) ME60163 Set
17 KH4-M6515-00X CIRCUIT PROTECTOR 4 1
17-1 KH4-M6515-01X CIRCUIT PROTECTOR,2P 1 CP30-BA AC2A (2008/6/20) ME60163 Set
18 KH1-M539M-30X
PROTECTOR ACCES.2P 1
18-1 KH1-M539M-31X PROTECTOR ACCES.2P 1 (2008/6/20) ME60163 Set
19 KH1-M539M-40X PROTECTOR ACCES.1P 2
19-1 KH1-M539M-41X PROTECTOR ACCES.1P 2 (2008/6/20) ME60163 Set
20 KM6-M6513-50X CIRCUIT PROTECTOR,3 2
20-1 KM6-M6513-51X CIRCUIT PROTECTOR,1P 2 CP30-BA AC5A (2008/6/20) ME60163 Set
21
KH4-M6513-10X CIRCUIT PROTECTOR 3 1
21-1 KGE-M6513-00X CIRCUIT PROTECTOR,3 1 (2001/5/29) M150094 NG
21-2 KGE-M6513-01X CIRCUIT PROTECTOR,1P 1 CP30-BA AC1A (2008/6/20) ME60161 Set
22 KH1-M539M-40X PROTECTOR ACCES.1P 1
22-2 KH1-M539M-41X PROTECTOR ACCES.1P 1 (2008/6/20) ME60161 Set
23 KV7-M4887-00X LED UNIT R-R 1
24 KV7-M4887-10X LED UNIT Y-Y 1
25 KV7-M4887-20X LED UNIT G-G 1
26 KH4-M6441-02X SPEED CONTROLLER , 2 1
27 KM8-M6510-11X BREAKER LEAK ASSY30 1
27-1
KM8-M6510-12X BREAKER LEAK ASSY30 1 MN50 CW3P 25A (2005/12/2) MBX0102 OK
