2 2 Base Cover Cover KGE-081002 9 9 9 9 10 9 14 9 9 9 16 18 16 10 9 9 17 16 12 16 14 1 1 12 15 6 5 8 7 7 4 13 12 10 2 10 12 16 10 3 9 18 1 1 9 1 1 12 10 12 1 19 7 8 16 7 No. Part No. Part Name Q'ty Remarks Date of c…
1
2
Top Cover
Cover
KGE-090928
21
44
43
45
43
45
21
25
19
22
23
28
29
23
16
18
3
10
40
7
14
40
34
20
27
24
26
5
1
27
39
38
10
33
28
25
15
19
23
31
22
11
37
29
23
36
25
21
18
9
21
41
17
23
19
16
10
13
28
29
2
34
23
22
42
36
27
10
5
8
12
4
27
35
32
33
25
6
20
28
29
22
23
19
17
23
40
15
9
37
20
26
20
30
39
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M1301-A0X COVER 1 ASSY 1
2 KGA-M1302-A0X COVER 2 ASSY 1
2-1 KGA-M1302-A1X COVER 2 ASSY 1 (2006/7/11) MC60146 OK
3 KGA-M1303-A0X COVER 3 ASSY 1
3-1 KGA-M1303-A1X COVER 3 ASSY 1 (2006/7/11) MC60146 OK
4 KGA-M1304-A0X COVER 4 ASSY 1
5 KV7-M1305-00X COVER 5 2
6 KGA-M1306-A0X COVER 6 ASSY 1
7 KGA-M1307-A0X COVER 7 ASSY 1
8 KGA-M1308-A0X COVER 8 ASSY 1
9 KGA-M1309-A0X COVER 9 ASSY 2
10 KM0-M1331-01X BRACKET GAS DAMPER 2
11 KM8-M1338-01X BRACKET MAIN SWITCH 1
12 KV7-M1336-00X BKT CORNER L BACK 1
13 KV7-M1337-00X BKT CORNER L FRONT 1
14 KV7-M1339-00X BKT CORNER R BACK 1
15 KV7-M1340-01X BRACKET 1 COVER 9 2
16 KV7-M1341-02X BRACKET 2 COVER 9 2
17 KV7-M1342-00X BRACKET 3 COVER 9 2
18 KV7-M1343-01X BRACKET 4 COVER 9 2
19 KV7-M1349-00X PLATE 2 NUT 4
20 K46-M1374-10X HINGE 2 4
20-1 K46-M1374-11X HINGE 2 4 (2009/7/13) MF70096 OK
20-2 K46-M1374-12X HINGE 2 4 (2013/2/13) MK20039 OK
21
KH2-M1324-00X GRIP 4
21-1
KH2-M1324-01X GRIP 4 (2008/10/15) ME00034 OK
22 KL3-M1348-10X GAS SPRING 2
23 KM0-M1346-00X SHOULDER,BOLT 4
23-1 90990-31J006 BOLT,SHOULDER 4 (2008/6/24) ME10118 OK
24 KGA-M1318-00X COVER 18 1
25 K93-M1392-00X SPACER 4 TM-180-303
26 KV7-M1329-00X COVER 29 2
27 KM0-M1335-00X BRACKET 1 GATE COVER 4
28 KM0-M1332-01X BRACKET MAGNET 4
29 KV5-M1130-00X CATCH MG. 4
30 KGE-M13D6-00X SEAL 1(HSD-Xg) 1
30-1 KGE-M13D6-01X SEAL 1(HSD-Xg) 1 (2003/10/24) M300086 OK
31 KW7-M13D7-00X SEAL 2(YAMAHA) 1
31-1 KW7-M13D7-01X SEAL 2(YAMAHA) 1 (2004/6/30) MA60120 OK
32 KV7-M1350-00X CAP PATLIGHT 1
33 KGA-M1356-00X PLATE 1, JOINT 2
34 KGA-M1357-00X PLATE 2, JOINT 2
35 KGA-M1391-00X PLUG (50) 1
36 KGA-M1392-00X PLUG (30) 2
37 KGA-M1394-00X PLUG (5) 12
38 KL3-M1381-02X PLATE 1 KEY BOARD 1
39 KL3-M1382-01X PLATE 2 KEY BOARD 1
39-1 KGT-M1382-00X PLATE 2,KEYBOARD 1 (2003/10/2) M300005 NG
40 KV7-M1391-10X PLUG 4
41 90K41-000190 WARNING SEAL(1) 2
41-1 90K41-000360 LABEL,ALERT 2 (2004/7/16) MA70069 OK
42
90K41-000230 WARNING SEAL(2) 2
42-1
90K41-000350 LABEL,ALERT 2 (2004/7/16) MA70069 OK
43 KV6-M1333-01X BRKT.1,COVER REAR 2
44 KV6-M1332-00X COVER. REAR 1
45 KV7-M1344-00X BRACKET 5. COVER 9 2
2
2
Base Cover
Cover
KGE-081002
9
9
9
9
10
9
14
9
9
9
16
18
16
10
9
9
17
16
12
16
14
11
12
15
6
5
8
7
7
4
13
12
10
2
10
12
16
10
3
9
18
11
9
11
12
10
12
1
19
7
8
16
7
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M1310-00X COVER 10 1
2 KV7-M1311-00X COVER 11 1
3 KV7-M1312-00X COVER,12 1
4 KV7-M1313-00X COVER 13 1
4-1
KV7-M1313-00X COVER 13 1 S.T.D (2004/4/1) M440001 OK
KV7-M1313-10X COVER 13 1 with Power Indicator (2004/4/1) M440001
5 KV7-M1314-00X COVER 14 1
6 KGA-M1315-00X COVER 15 1
7 KV7-M1317-01X COVER 17 4
8 KV7-M1325-01X BRACKET 5 2
9 KG2-M1370-00X HINGE ASSY 12
10 K44-M1354-00X MG. CATCH 6 TL-152-2
11 KV7-M1326-00X BRACKET 1-1 3
12 KV7-M1370-00X BRACKET MAGNET 6
13 KV7-M1327-00X BRACKET 1-2 1
14 KV7-M1328-00X BRACKET 2 1
15 KGA-M1328-00X BRACKET 2 1
16 KV7-M1347-00X PLATE BRACKET 6
17 KGA-M4187-00X FAN GUARD 119MM 4
18 KV7-M1371-00X BRACKET,FIX 2
18-1 KGS-M1371-00X BRACKET,FIX 2 (2006/2/20) MC20122 OK
19 KV7-M1372-00X HANDLE 1 1
1
3

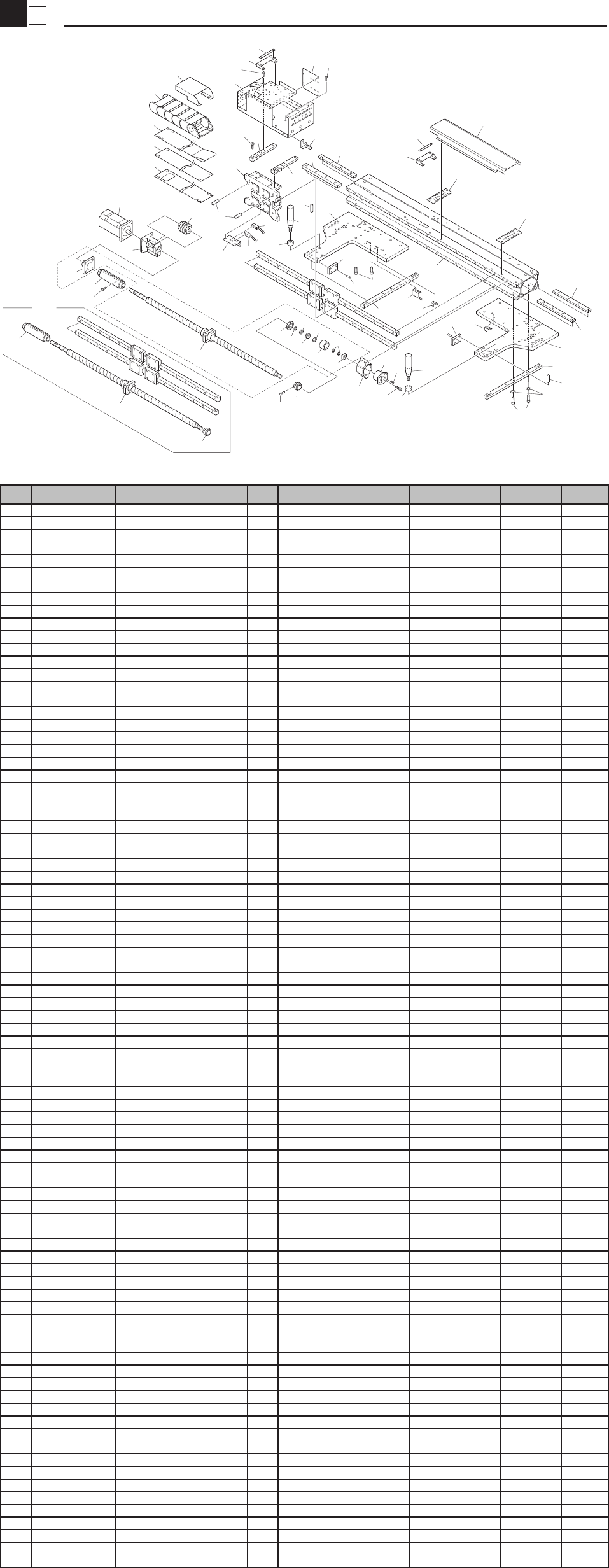

X-axis
Moving-axis
KGE-081002
19
33
35
34
15
10
4
14
54
11
46
37
45
16
17
25
18
29
22
23
5
5
1
56
56
45
46
13
9
9
6
5
32
36
31
24
24
36
32
39
38
43
41
42
58
41
12
42
47
29
23
51
49
52
50
51
49
50
52
53
30
8
7
48
40
55
28
27
55
57
59
58
58
14
28
27
18
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M2211-02X FRAME X AXIS 1
1-1 KV7-M2211-03X FRAME X AXIS 1 (2008/4/16) ME30234 OK
2
3
4 KM0-M2220-00X COUPLING, X-AXIS 1
5 KV7-M2231-00X SPACER R, NUT 3
6 KM0-M2233-00X SPACER R2 NUT 1
6-1 KV7-M2233-00X SPACER R2,NUT 1 (2003/2/11) M320049 OK
7 KV6-M2236-01X PLATE A 1
8 KV7-M2237-00X SUB PLATE 1
9 KV6-M2239-00X BRACKET 1 2
10 KM0-M2241-00X HOLDER,MOTOR X AXIS 1
10-1 KM0-M2241-01X HOLDER,MOTOR X AXIS 1 (2008/4/16) ME30234 OK
11 KV7-M2242-00X HOLDER,BRG X AXIS 1
11-1 KV7-M2242-01X HOLDER,BRG X AXIS 1 (2008/4/16) ME30234 OK
12 KV7-M2645-00X BRG.,ANGULAR 1
12-1 90990-25J005 BEARING 1 (2007/12/4) MDX0031 OK
12-2 90990-26J014 BEARING 1 (2008/4/24) ME40191 OK
13 KV7-M2261-00X HOLDER, HEAD 1
13-1 KV7-M2261-01X HOLDER, HEAD 1 (2002/4/25) M240093 OK
14 KV7-M2271-01X SCREW BALL X AXIS 1
14-1 KV7-M2271-02X SCREW BALL X-AXIS 1 (2002/6/6) M250068 Set
15 90K55-87174X AC SERVO MOTOR 1
15-1 90K56-8717EX AC SERVO MOTOR 1 (2003/4/18) M340073 OK
16 KV7-M653A-00X SENSOR, 1 ASSY 1 L=600
16-1 KGA-M220A-00X SENSOR , ORG 1 L=600 (2002/11/12) M2X0034 OK
17 KV7-M653E-00X SENSOR, 2 ASSY 2 L=600
17-1 KGA-M220B-00X SENSOR , OT 1 L=600 (2002/11/12) M2X0034 OK
18 K47-M2276-S0X X-AXIS GUIDE SET 1
18-1 KV7-M2276-S0X X-AXIS GUIDE SET 1 (2002/6/6) M250068 Set
19 KV6-M2267-00X GUIDE,CABLE X 1
20 K94-M220A-00X TAPE X-AXIS 1
21 K94-M220A-10X TAPE X-AXIS 1
22 KV7-M2282-00X DOG, ORG 1
23 KV7-M2283-00X DOG, 2ND LIMIT 2
24 KV7-M226B-00X PLATE 2
25 KV7-M2291-00X BRACKET, SENSOR 1
26
27 KGA-M2651-10X DAMPER 14 ASSY. 1
27-1 KGA-M2651-11X DAMPER 14 ASSY. 1 (2002/6/6) M250068 Set
28 KGA-M2651-70X DAMPER 125 ASSY. 1
28-1 KGA-M2651-71X DAMPER 110 ASSY. 1 (2002/6/6) M250068 Set
29 KM0-M2251-00X NYLOCK BOLT 16 M8X22L
29-1 90990-01J024 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
29-2 90990-01J179 BOLT,HEX.SOCKET HEAD 16 (2020/1/24) MT10096 OK
30 KV6-M2252-00X STOPPER 1
31 KV7-M226A-00X COVER CABLE 1
31-1 KV6-M226A-00X COVER,CABLE 1 (2005/9/2) MB90009 OK
32 KV6-M2268-00X BRACKET 1, TAPE 2
33 KV6-M2269-00X COVER,RUNNER FLEX 1
34 KV6-M220A-00X TAPE1 , X DUCT 1
35 KV6-M220B-00X TAPE 2, X DUCT 1
36 KV6-M2266-00X PLATE, NUT 2
37 KV7-M2240-00X SLEEVE, BRG. 1
38 KV7-M2243-00X HOUSING, BRG. X 1
39 KV7-M2244-00X COVER, BRB. HOUSING 1
40 KV7-M2246-00X COIL SPRING M 6
41 KV7-M2647-00X OIL SEAL 2
42 KV7-M2648-00X SPACER 3
42-1 90990-41J100 COLLAR 3 (2008/4/11) ME30019 OK
43 KG2-M9173-00X LOCK NUT 1
44
45 KV7-M2256-00X GRIP 2
46 KV7-M2257-00X SPACER GRIP 2
47 KV6-M220C-00X TAPE 3, X DUCT 1
48 KV7-M2251-00X NYLOCK BOLT 30 M4X16
48-1 91317-04016 BOLT HEX.SOCKET HEAD 30 (2005/2/7) MB20025 OK
49 KV7-M2295-01X BRACKET, PIN 2
49-1 Delete (2002/7/19) M270057
50 KV7-M2296-00X BRACKET, SCREW 2
50-1 Delete (2002/7/19) M270057
51 KV7-M2297-00X TAPER PIN 4 8X30
51-1 Delete (2002/7/19) M270057
52 KV7-M2298-00X NYLOCK SET, SCREW 6
52-1 Delete (2002/7/19) M270057
53 99480-06014 PIN, PARALLEL 2
54 KV7-M2604-00X SUPPORT UNIT 1
55 KGA-M2649-00X NYLOCK BOLT 12 M2.6X10
55-1 90990-01J023 BOLT,HEX.SOCKET HEAD 12 (2007/10/29) MD00030 OK
56 KV7-M2213-S0X PLATE X AXIS SET 1
56-1 KV7-M2213-S1X PLATE X AXIS SET 1 (2008/4/16) ME30234 OK
57 KV7-M2253-00X WASHER,SPRING 16
57-1 90990-38J001 WASHER,SPRING 16 (2008/4/15) ME20075 OK
58 KV7-M2271-A0X X-Axis B.S. SUB ASSY 1
