asic operation
n
If sticks are loose or deflect too much
The flat spring of the stick restraint B should be adjusted.
Loosen the screws securing the flat spring of the stick restraint B and adjust the position of the flat spring so that
appropriate tension is added to the sticks, and tighten the screws.
Stick restraint
Stick support
Stick restraint B
23225-L6-00
n
If sticks are too short to reach the stick support
Raise the adjustment plate as shown in the illustration below to support the stick from below.
Adjustment plate
Stick
Adjustment plate
23226-L6-00
2-39
2
asic operation
4.2.2 Installation on a mounter
Observe the following instructions for installing the wide multi-stick feeder on a mounter.
e
1
Install the tracks on the slope plate.
Press the emergency stop button on the mounter to stop mounter operation.
c
2
Clean the surface of the feeder bank.
Parts or debris caught in the machine will tilt the feeder, interfering with stable pickup.
3
Set the feeder.
Raise the clamping lever, align the target mark to the feeder installation position and slide it to insert it
to the location pin hole.
Attachment of the feeder
Clamping lever
Connector for power/signal
Location pin
Tail pin
Target mark
Handle part
23227-L6-00
4
Check the assembled condition.
Release the clamping lever and try to move the feeder back and forth to check if it is fixed securely.
5
Set components.
Press the [FEED] button so that the first component reaches the pickup position. The feeder will vibrate
for two seconds to feed components at the touch of the button.
Confirmation of operation and setting components
First component
Stick
[FEED] button
23228-L6-00
TIP
For detailed information on the wide multi-stick feeder, refer to the User’s Manual for SS feeder.
2-40
2
asic operation
4.3 Setting the tray components
n
Precautions when handling pallets
Observe the following points when handling the pallets.
• Store the pallets in a clean environment where dust, grime and oil will not adhere.
• Take care not to drop the pallets or apply excessive force or impacts. Do not use a pallet if it is warped or deformed
after having been dropped.
• Avoid hurting yourself on the edges of the pallets.

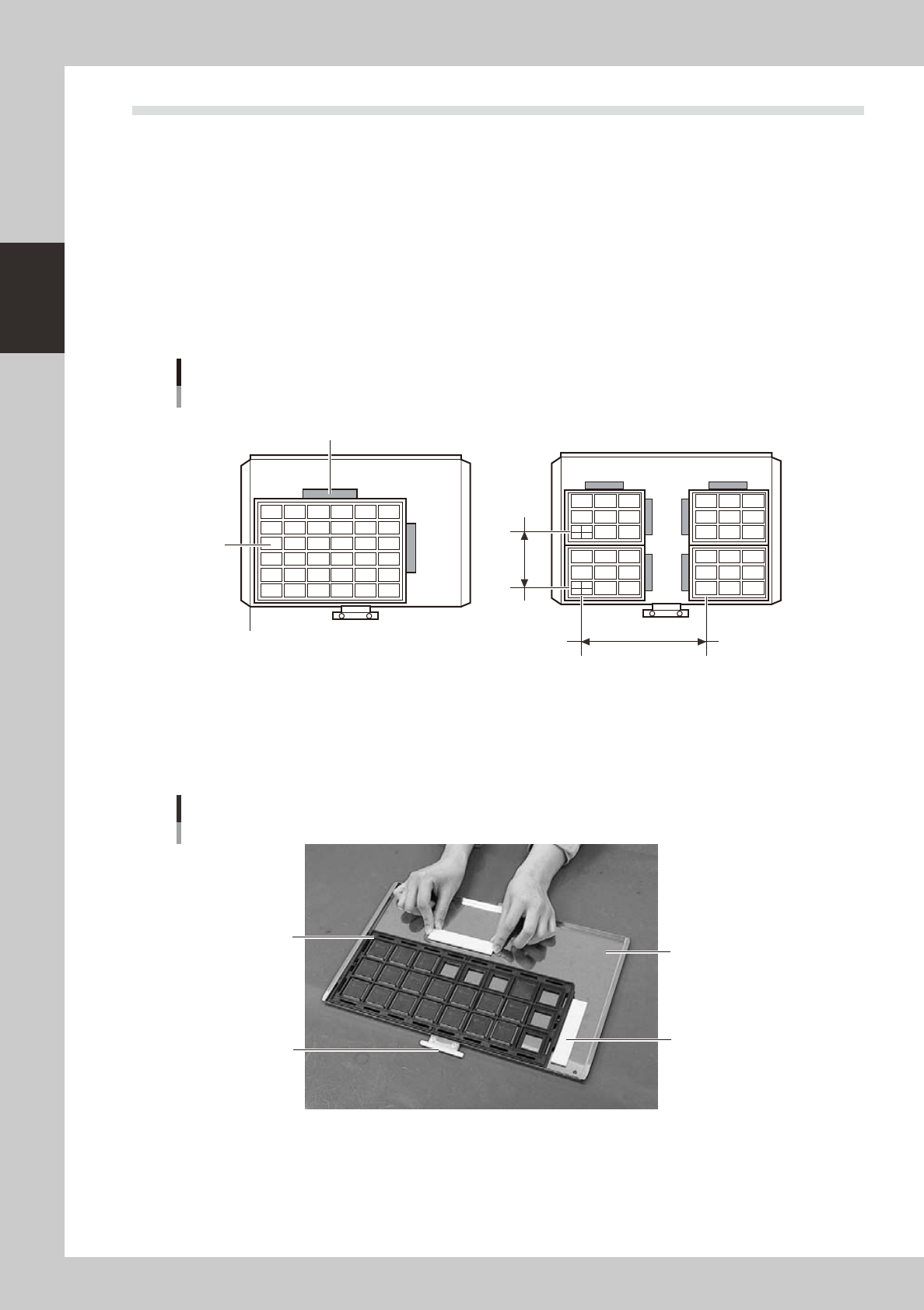

4.3.1 Setting the component trays in the pallet
Several component trays can be set on one pallet (depending on the size of trays). Set the trays as described
below.
Clamping the component tray
Using one tray
Using several trays
Tray pitch X
Clamping magnet
Tray
Tray pitch Y
Pallet reference position (pallet origin position)
23219-L7-00
1
Remove the tray clamp magnets.
2
Set the component tray on the pallet.
Set so the corner of the component tray is aligned with the pallet reference position (pallet origin
position). After setting the tray, clamp it in place with the magnets.
Clamping the component tray
Pallet pullout piece
Tray clamp magnet
Pallet
Tray
23217-L7-00
3
Check that the component tray is clamped.
Press on the tray to make sure it is securely clamped by the magnet.
