xxiv Safety instructions n Label positions W arning/caution labels YS12F Front side N Open/close cover inner side N Cutter section N Open/close cover , Conveyor opening N Lower panels N Side N Main switch N Feeder setup…
xxiii
Safety instructions
n
Label positions
Warning/caution labels
YS12P Rear side
N Open/close cover inner side
N Conveyor opening
N Lower panels
N Side
N Panel inner side
N Open/close cover
93202-L6-20
Warning/caution labels
Head assembly
N Z-axis linear scale section
N SC-axis linear scale section
N Camera unit
N Camera unit
93204-L6-20
xxiv
Safety instructions
n
Label positions
Warning/caution labels

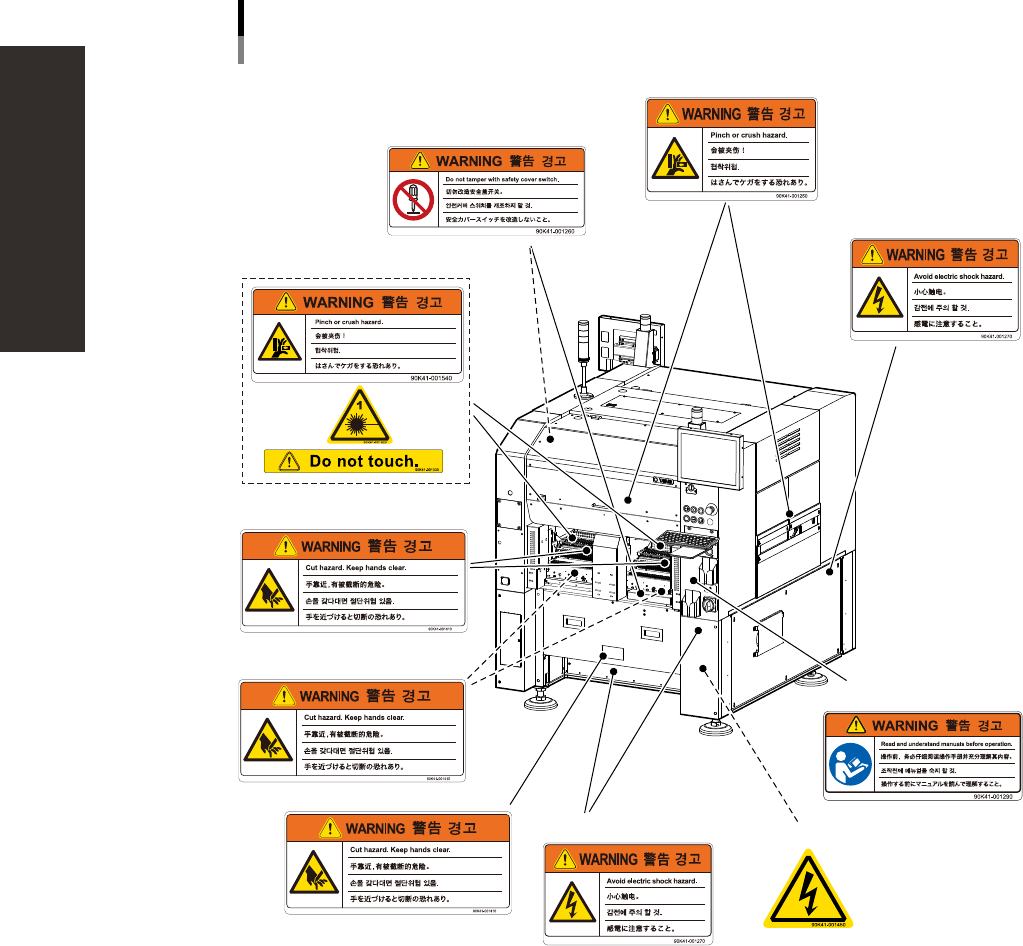

YS12F Front side
N Open/close cover inner side
N Cutter section
N Open/close cover, Conveyor opening
N Lower panels
N Side
NMain switch
N Feeder setup section
N Cutter section
N Panel inner side
N Cutter inner side
93201-L7-20
xxv
Safety instructions
n
Label positions
Warning/caution labels

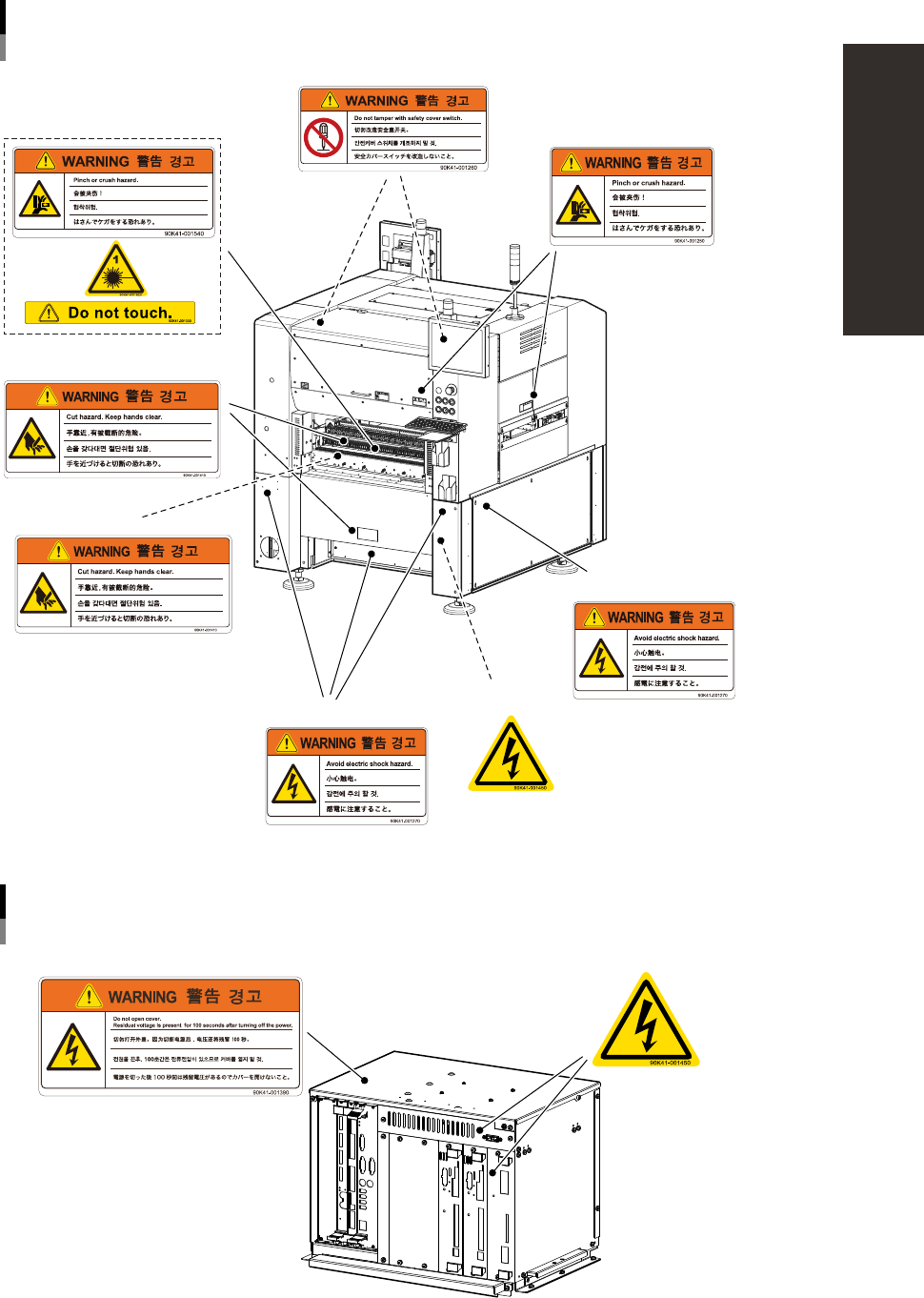

YS12F Rear side
N Open/close cover inner side
N Open/close cover,
Conveyor opening
N Lower panels
N Panel inner side
N Side
N Cutter section
N Feeder setup section
N Cutter inner side
93202-L7-20
Warning/caution labels
Controller
N Top of controller
N Controller front panel
93203-L6-20
