3.3 Nozzle station (option)
The nozzle station accommodates various nozzles for automatic change.

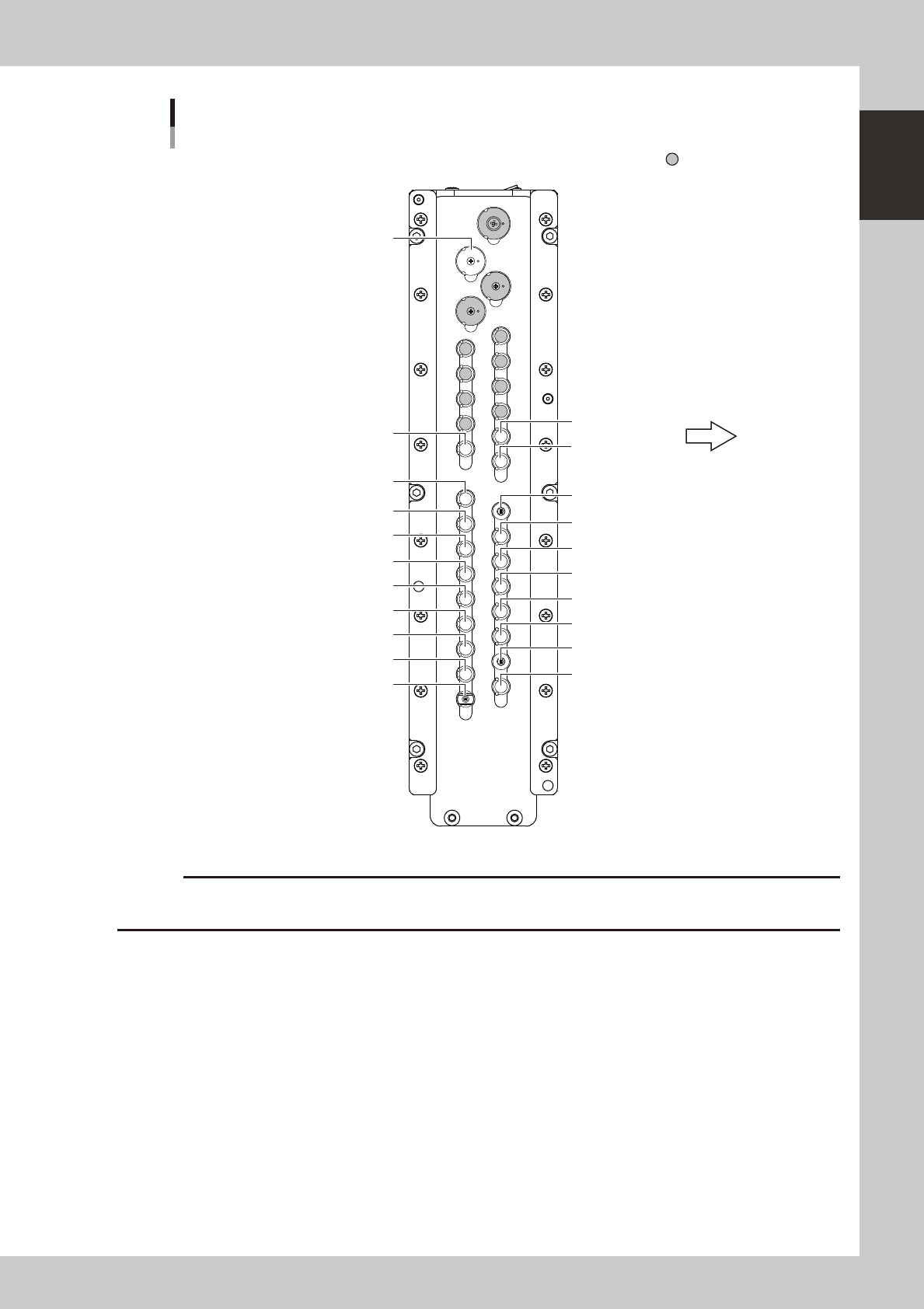

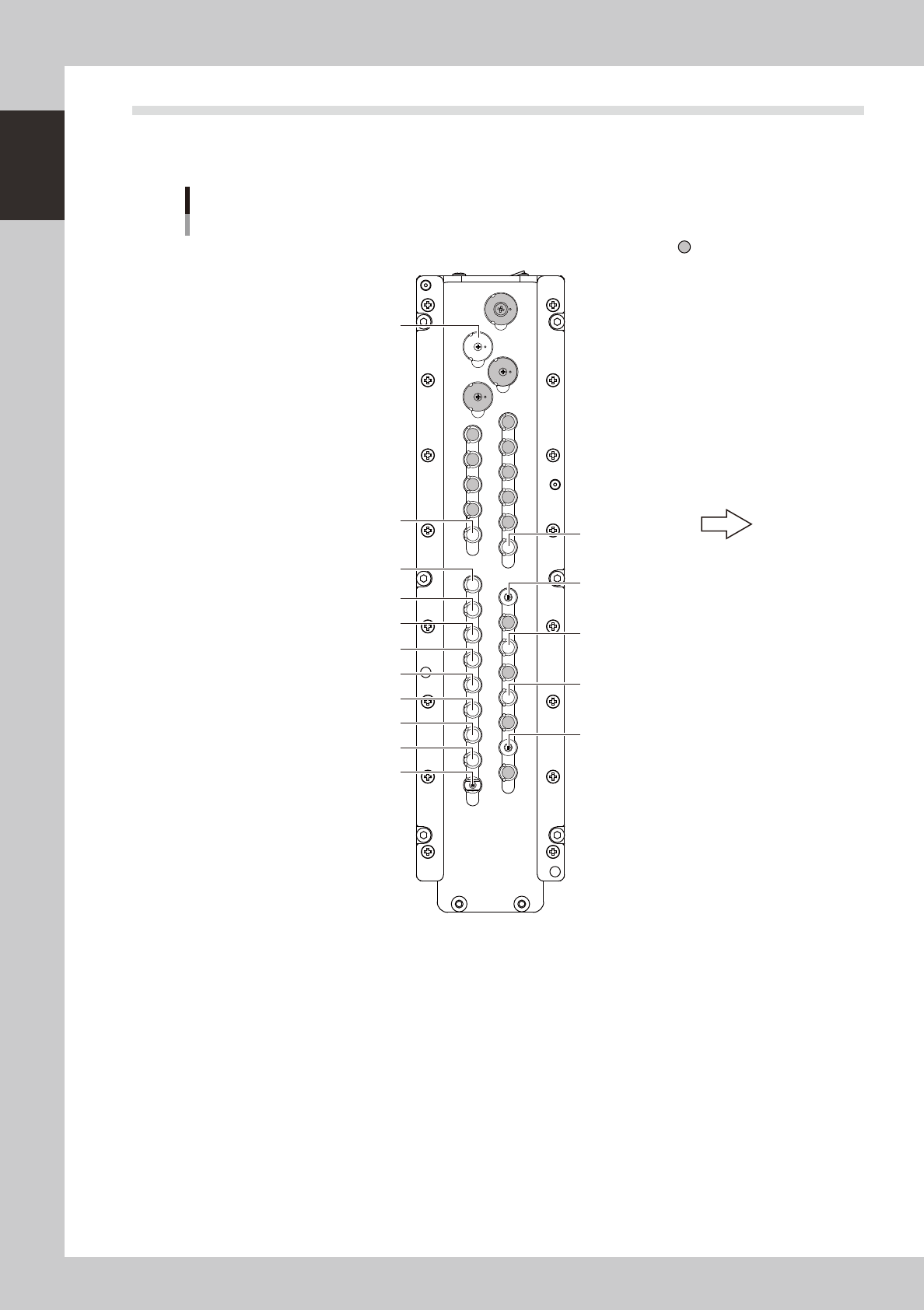

The drawings below show the nozzle station No. and the allotted head No. and mating nozzle type.
Nozzle station
Standard type
H2
TYPE307A
H1
TYPE302A
H1
TYPE301A
H2
TYPE304A
H3
TYPE303A
H4
TYPE303A
H5
TYPE304A
H2
TYPE302A
H2
TYPE301A
H3
TYPE302A
H3
TYPE301A
H4
TYPE302A
H4
TYPE301A
H5
TYPE302A
H5
TYPE301A
Custom nozzle pockets
Front of machine
H1
TYPE303A
16
32
17
20
21
22
23
24
25
26
27
28
30
18
19
15
29
31
13
14
11
12
9
10
5
6
7
8
1
2
3
4
23113-L6-10
1-11
1
Part names and functions
16
32
17
20
21
22
23
24
25
26
27
28
29
30
18
31
19
15
13
14
11
12
9
10
5
6
7
8
1
2
3
4
Nozzle station
Narrow adjacent type
H2
TYPE318A
H1
TYPE313A
H1
TYPE312A
H1
TYPE311A
H2
TYPE315A
H2
TYPE311A
H3
TYPE314A
H3
TYPE311A
H4
TYPE314A
H4
TYPE311A
H5
TYPE315A
H5
TYPE311A
H2
TYPE313A
H2
TYPE312A
H3
TYPE313A
H3
TYPE312A
H4
TYPE313A
H4
TYPE312A
H5
TYPE313A
H5
TYPE312A
Custom nozzle pockets
Front of machine
H1
TYPE314A
23112-L6-10
c


restrictions on the size of components suitable for those nozzles.
1-12
1
Part names and functions

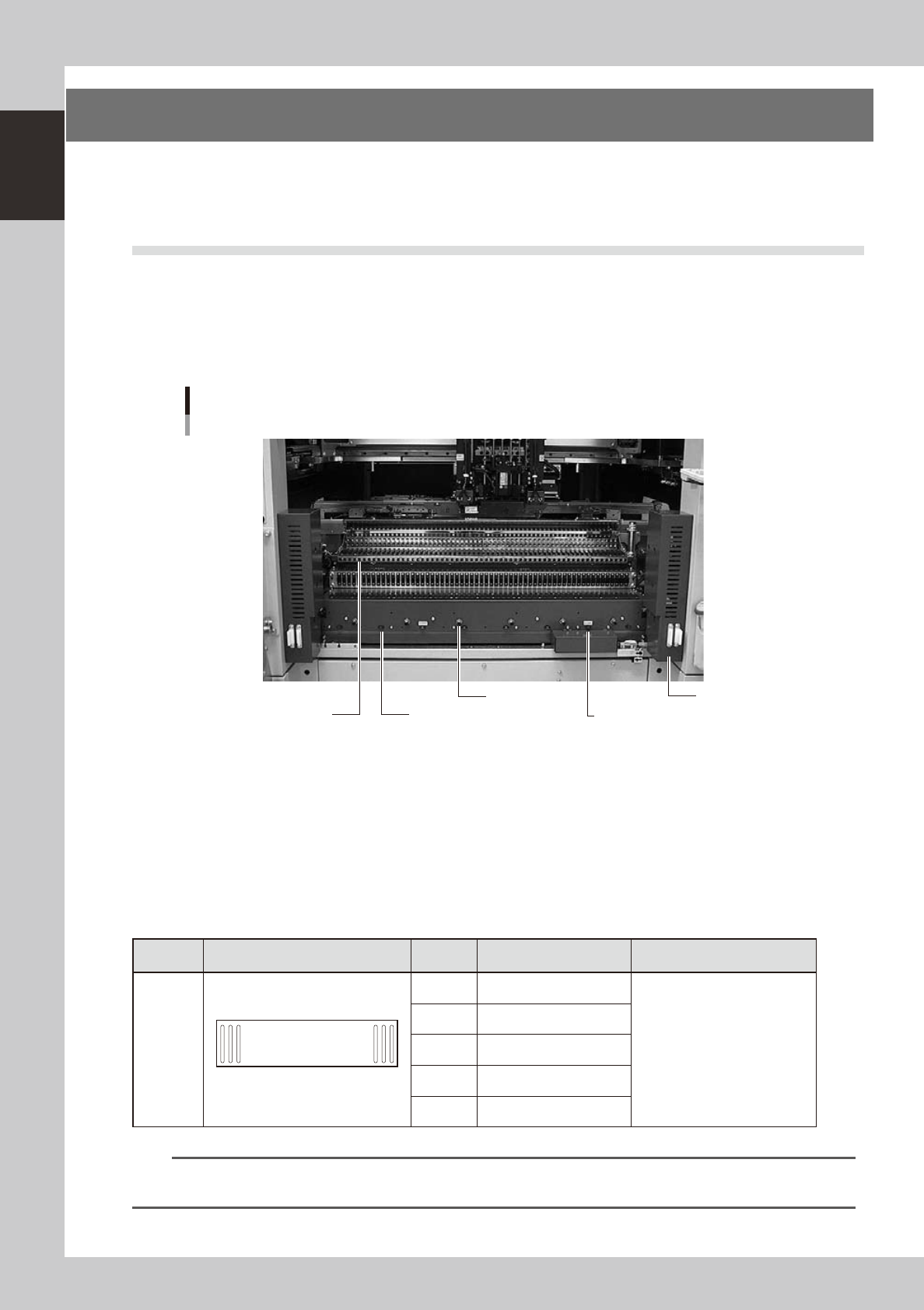

4. Component supply section
The feeder setup section is equipped with feeder plates for installing feeders such as tape feeders, and
power supply connectors and air connectors for driving optional units. An auto tray changer (ATS15) can
also be installed on the rear of the YS12F as an option.
4.1 Supplying components from feeder plates
Tape feeders and stick feeders are installed on the feeder plate(s), and operate by electric power supplied from
the mounter.
4.1.1 YS12P
The YS12P has only one 60-feeder plate fixed on the front side of the machine.
YS12P feeder plate section
Fixed 60-feeder plate
Safety cover
Air connector
Power supply connector
Power supply connector (for dump station)
60-feeder plate
23108-L6-00
Power supply connector
When using optional units such as stick feeders, plug the power cord into these connectors.
Air connector
Use these air connectors when using an optional device such as an air blow gun. Connect the air tube (outer diameter
4mm) to supply compressed air to the optional device from the mounter.
n
Head No. and feeder set No.
Some feeders cannot be reached by a head depending on the head assembly configuration and X-axis movement range.
The tables below show feeder set numbers that can be accessed by each head of the machine.
Type Layout Head No. Accessible feeder set No.
Number of feeders than can be
attached
Front
60-feeder
plate
(fixed)
1 60
1 10 to 60
59 when 8mm feeders are used
2 8 to 58
3 6 to 56
4 4 to 54
5 2 to 52
n
NOTE
Accessible feeder positions may differ from the above when the Feeder Definition parameter in component
information is set to "Teach" or "Relative".
