PKOKNMKQ= =qóéáÅ~ä=lbp=ÉåÇéçáåí=ï~îÉäÉåÖíÜë=
Material etched Gas species
detected
Wavelength
nm
Rise/fall at endpoint
Si F 704 Rise
Si SiF 440, 777 Fall
Si SiCl 287 Fall
SiO2 F 704 Rise
SiO2 CO 483 Fall
Resist, polyimide O 843 Rise
Resist, polyimide CO 483 Fall
Resist, polyimide OH 309 Fall
Resist, polyimide H 656 Fall
Si3N4 N2 337 Fall
Si3N4 CN 387 Fall
Si3N4 N 674 Fall
W F 704 Rise
Al Al 391, 394, 396 Fall
PKOKNMKR= båÇéçáåí=~äÖçêáíÜã=Éñ~ãéäÉë=
Signal
Time
% level
Normalisation
time
Endpoint
closed time
(no false
endpoint can
be found)
Endpoint
capture
time
Signal crosses its
endpoint threshold level.
Endpoint capture timer
started.
END of
process
Overetch
time
Endpoint trace – (signal, falling)
Normalisation
level
Threshold
level
Time
% level
Signal
Normalisation
time
Endpoint
closed time
(no false
endpoint can
be found)
Endpoint
capture
time
Signal crosses its
endpoint threshold level.
Endpoint capture timer
started.
END of
process
Overetch
time
Endpoint trace – (signal, falling)
Normalisation
level
Threshold
level
Process Information (Information contained in this document is confidential)
Issue 1: December 03 Page 16 of 30 Printed: 08 January 2006 09:37
System Manual= lñÑçêÇ=fåëíêìãÉåíë=mä~ëã~=qÉÅÜåçäçÖó= mä~ëã~ä~Ä
Signal
Time
% level
Derivative
zero line
Derivative
+/- derivative
threshold
Normalisation
time
Endpoint
closed time
(no false
endpoint can
be found)
Endpoint
capture
time
Derivative crosses its
endpoint threshold level.
Endpoint capture timer
started.
END of
process
Overetch
time

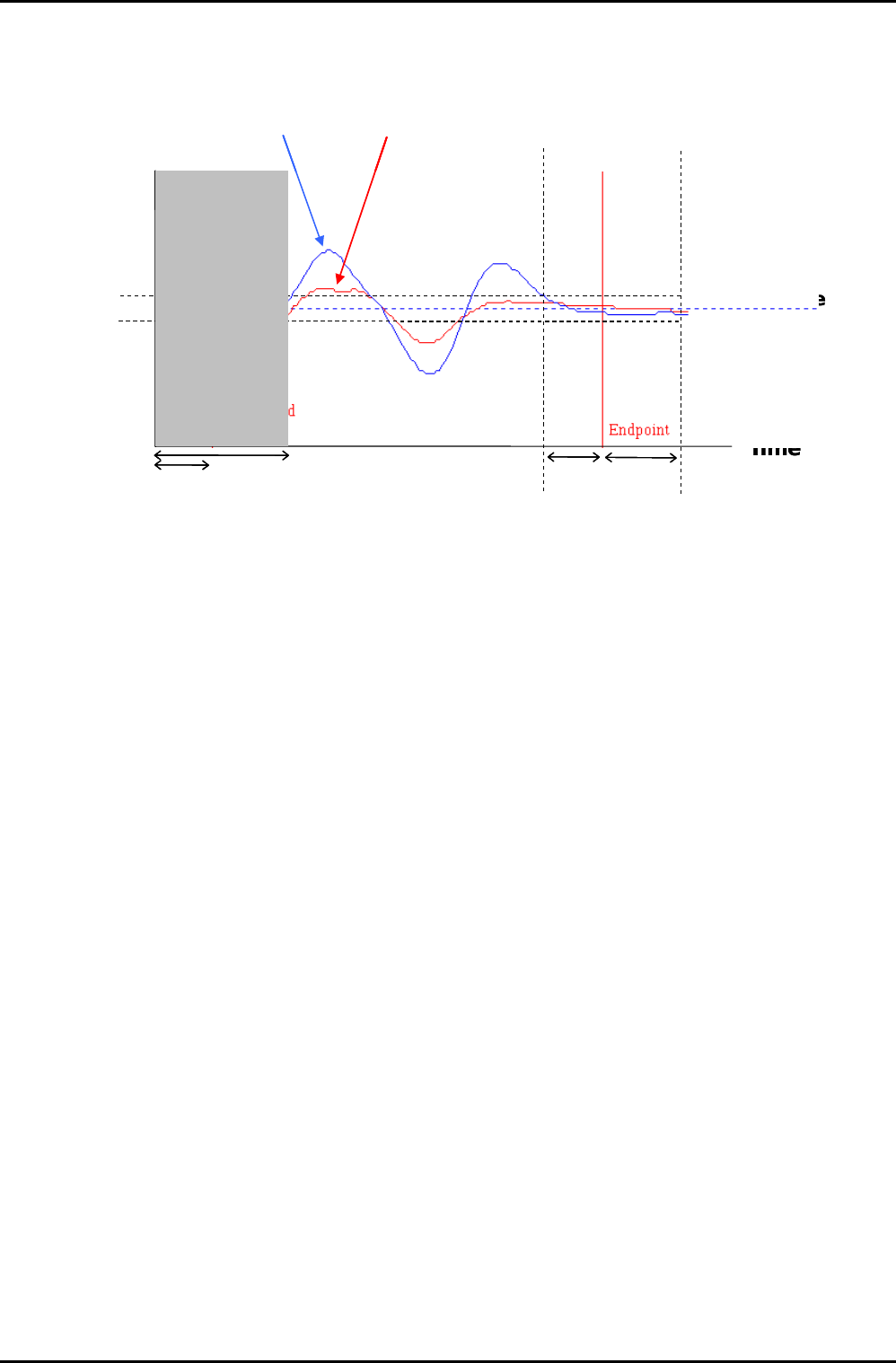

Endpoint trace – (derivative, less than)
Time
% level
Derivative
zero line
Signal
Derivative
+/- derivative
threshold
Normalisation
time
Endpoint
closed time
(no false
endpoint can
be found)
Endpoint
capture
time
Derivative crosses its
endpoint threshold level.
Endpoint capture timer
started.
END of
process
Overetch
time
Time
% level
Derivative
zero line
Signal
Derivative
+/- derivative
threshold
Normalisation
time
Endpoint
closed time
(no false
endpoint can
be found)
Endpoint
capture
time
Derivative crosses its
endpoint threshold level.
Endpoint capture timer
started.
END of
process
Overetch
time
Endpoint trace – (derivative, less than)
PKOKNN= d~ë=Å~äáÄê~íáçå=Ñ~Åíçêë=
See the MKS OEM manual for details of gas correction factors. However, it is worth pointing out that for
certain gases (e.g. H2 or He) it is recommended that the MFC is calibrated for that particular gas, since
they have very different gas properties compared to other gases, and hence the errors on calibrations
factors is large.
PKOKNO= bñÜ~ìëí=Éãáëëáçåë=
The gas emitted by a plasma etch process will be mostly made up of the input gases. However, there will
be a small but significant component of etch or plasma by-products (say up to ~10% in an RIE tool,
possibly more for ICP). The exact amounts will depend on process type and conditions. These can be any
combination of etch gas material and etched material.
For example:
Si + CF
4
= SiFx, CFx, F etc
SiO
2
+ CHF
3
= SiFx, COx, CFx, F, HF, CHx, SiOFx etc
Resist + O
2
= COx, O etc
As many of these by-products are toxic, it is a minimum requirement that these gases are exhausted in an
enclosed extraction system to the roof of the building - following health and safety regulations. In
addition to this, depending on local regulations, it may be necessary to have some form of gas scrubbing
before releasing these materials to the atmosphere.
Even if we were not running gases through the system, we would recommend that the system exhaust is
extracted correctly, since the pump exhaust will contain small droplets of pump oil which are in
themselves harmful to lung function.
Another important consideration is the gas absorbed in the pump oil. Since the exhaust gases contain HF
there will be a build up of HF in the pump oil. Therefore, it is important to use the correct protective
equipment when servicing the pump or changing pump oil, i.e. suitable gloves, protective clothing,
filtered facemask or breathing apparatus.
It is also worth remembering that when using O
2
processes the pump oil should be Fomblin oil and NOT
mineral oil to avoid risk of fire or explosive reaction between O
2
and mineral oil.
Process Information (Information contained in this document is confidential)
Printed: 08 January 2006 09:37 Page 17 of 30 Issue 1: December 03
