1 Service manual Linear motor, secondary part SIPL ACE HS-50 Linear motor, secondary part, HS-50 1.4 Assembly of magnets with cover sheet 02/2009 Edition 22 : Insert the spacer block into the two ho les at the top of the…
Linear motor, secondary part, HS-50 1 Service manual Linear motor, secondary part SIPLACE HS-50
02/2009 Edition 1.4 Assembly of magnets with cover sheet
21

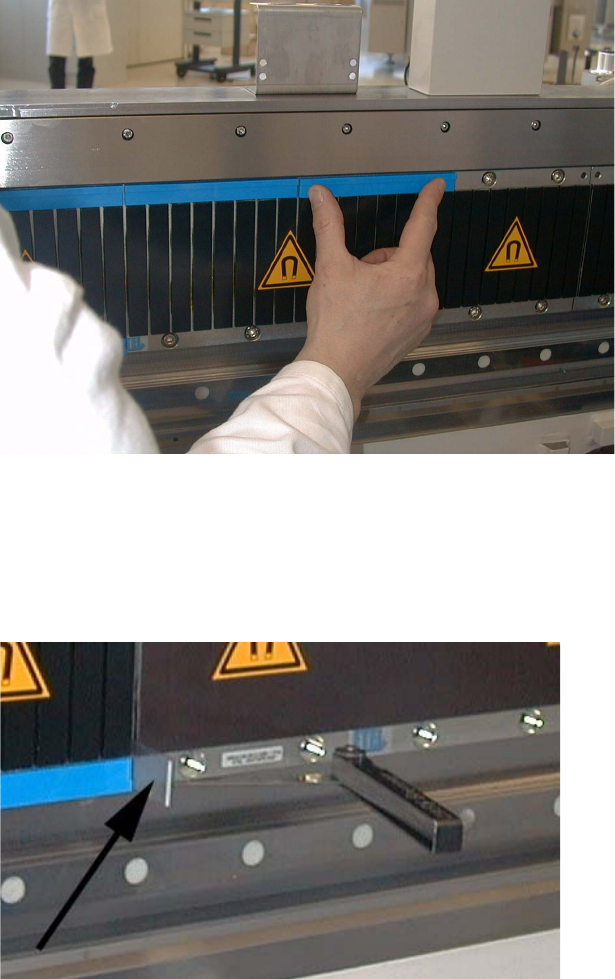

: Clip the supporting rails onto the holes in the screws in the magnetic plate.
1
1
: Before you attach the second magnetic plate (to the left), place a 0.8 mm thick non-magnetic
spacer (e.g. incremental encoder film) between the magnetic plates, otherwise they will be at-
tracted to one another and will be difficult to separate.
1
1
: Place the second magnetic plate against the spacer.
1
1
1
1 Service manual Linear motor, secondary part SIPLACE HS-50 Linear motor, secondary part, HS-50
1.4 Assembly of magnets with cover sheet 02/2009 Edition
22
: Insert the spacer block into the two holes at the top of the magnetic plates.
1
You might need to use the feeler gauges, as well. 1
1
1
1
: Use all the screws to fix the magnetic plate in position, and tighten using the torque wrench.
: Remove the spacer, spacer block and feeler gauges.
: Clip the supporting rails onto the holes in the screws in the magnetic plate.
: Place the cover sheet onto the magnetic plate, making sure that the sheet lies inside the recess
in the supporting rails.
1
1
1
Linear motor, secondary part, HS-50 1 Service manual Linear motor, secondary part SIPLACE HS-50
02/2009 Edition 1.4 Assembly of magnets with cover sheet
23
: Guide the cover sheet behind the gantries.
: Push both gantries to the left as far as they will go.
: Roll up the sheet to the right beside the gantries, and clamp tightly to prevent it unrolling again.
1
1
: Now fit the large magnetic plate to the right of the middle plate and fit the small magnetic plate
on the far right as described for the other plates.
: Place the rolled-up cover sheet over all the magnetic plates.
1
1
: Remove all tools and equipment from the placement machine.
: Fit the magnetic plates on the other side of the placement machine in the same way.
