Sleeves 2 Retrofit instructions Sleeves for the component trolleys SIPLACE D1 / D2 / D4 04/2007 Edition 15 2.4 Identification of retrofitted component trolleys T o identify the retrofitted component trolleys wit h the ne…
2 Retrofit instructions Sleeves for the component trolleys SIPLACE D1 / D2 / D4 Sleeves
04/2007 Edition
14
: Remove the sleeves from the bars.
2
Keep the detached sleeves separately to do not mix them up with the new ones. 2
2
2

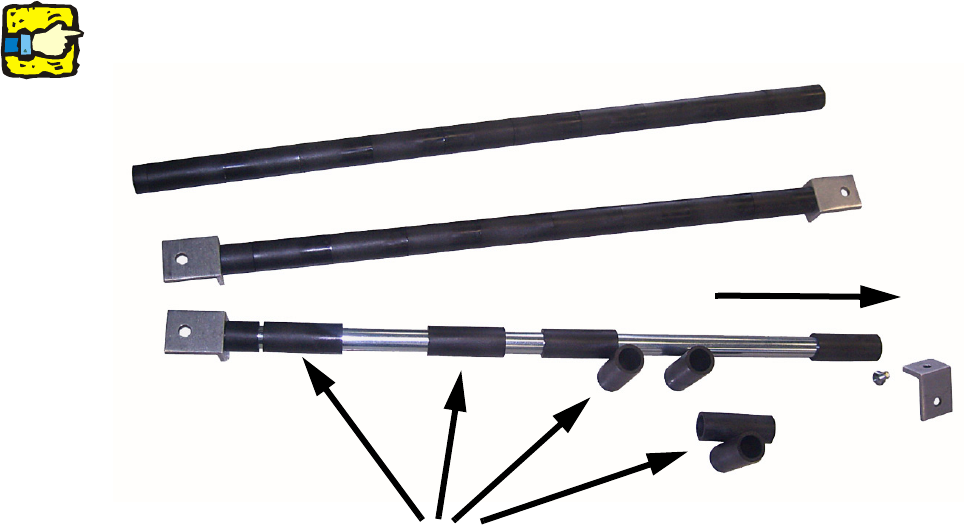

: Push the new sleeves from the retrofit kit (D1 / D2) or the two retrofit kits (D4) onto the bars.
There are long and short sleeves; use the short ones to fill space inbetween.
2
: Screw the brackets to the bars once more.
: Screw the bars to the component trolley.
2
2
2
2
2
2
2
2
2
Sleeves
Sleeves 2 Retrofit instructions Sleeves for the component trolleys SIPLACE D1 / D2 / D4
04/2007 Edition
15

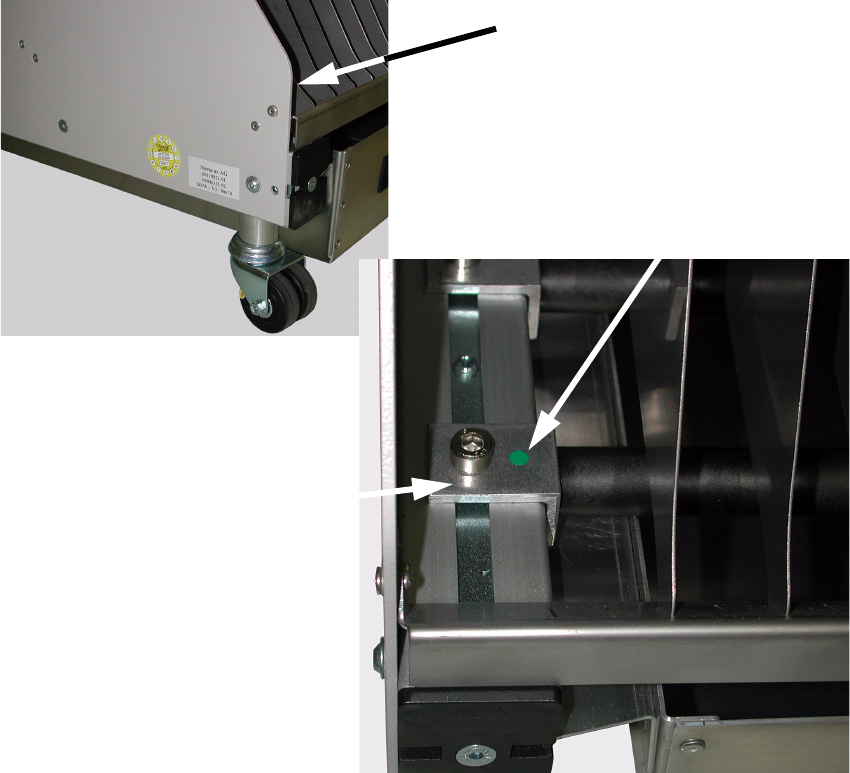

2.4 Identification of retrofitted component trolleys
To identify the retrofitted component trolleys with the new sleeves, a self adhesive green sticker
must be applied on the front left side on the trolley (ssen from the docked trolley). 2
: Remove one or more tape reel carrier to reach the glue position (if inside the trolley).
: Glue the sticker onto the front bracket of the bar.
2
2
: Insert the tape reels and carrier into the component trolley.
: Dock the component trolley into the machine.
: Carry out the tasks on all the component trolleys for the relevant placement machine.
Position for sticker
Sticker
Bracket for bar
