1 Hardware / Software Installation User’s Manual Line Computer UNIX
1.2 Hardware Installation Software Version 402.xx Edition 06/96
1 - 6
1.2.2.2 Computer - Type PCD-5H Pentium 90 MHz

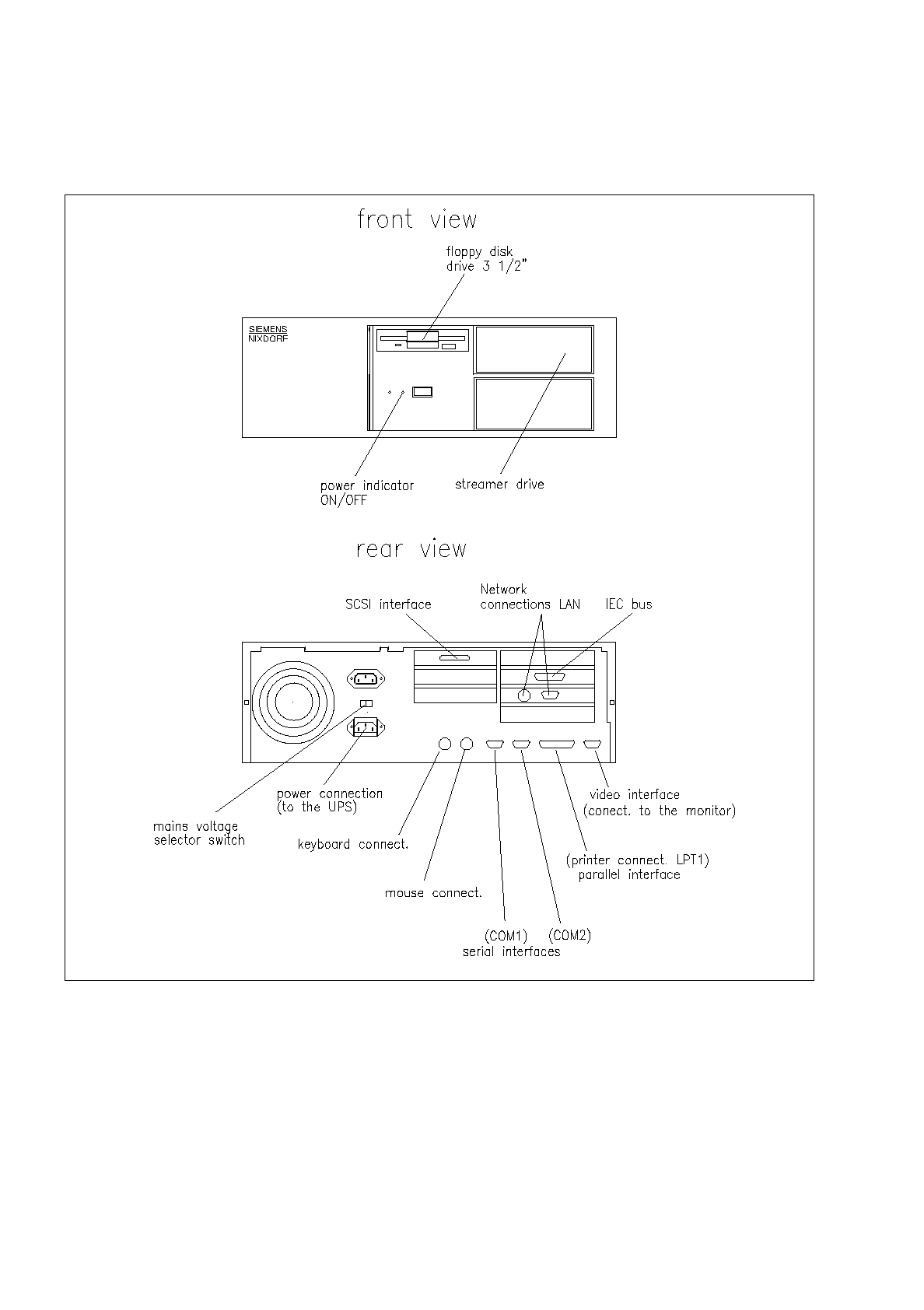

Fig. 1.2.2 Computer - indicators, control elements, connections
User’s Manual Line Computer UNIX 1 Hardware / Software Installation
Software Version 402.xx Edition 06/96 1.2 Hardware Installation
1 - 7
1.2.3 Monitor - Type SIPLACE 17" FLEXSCAN
1.2.3.1 Connections and Settings

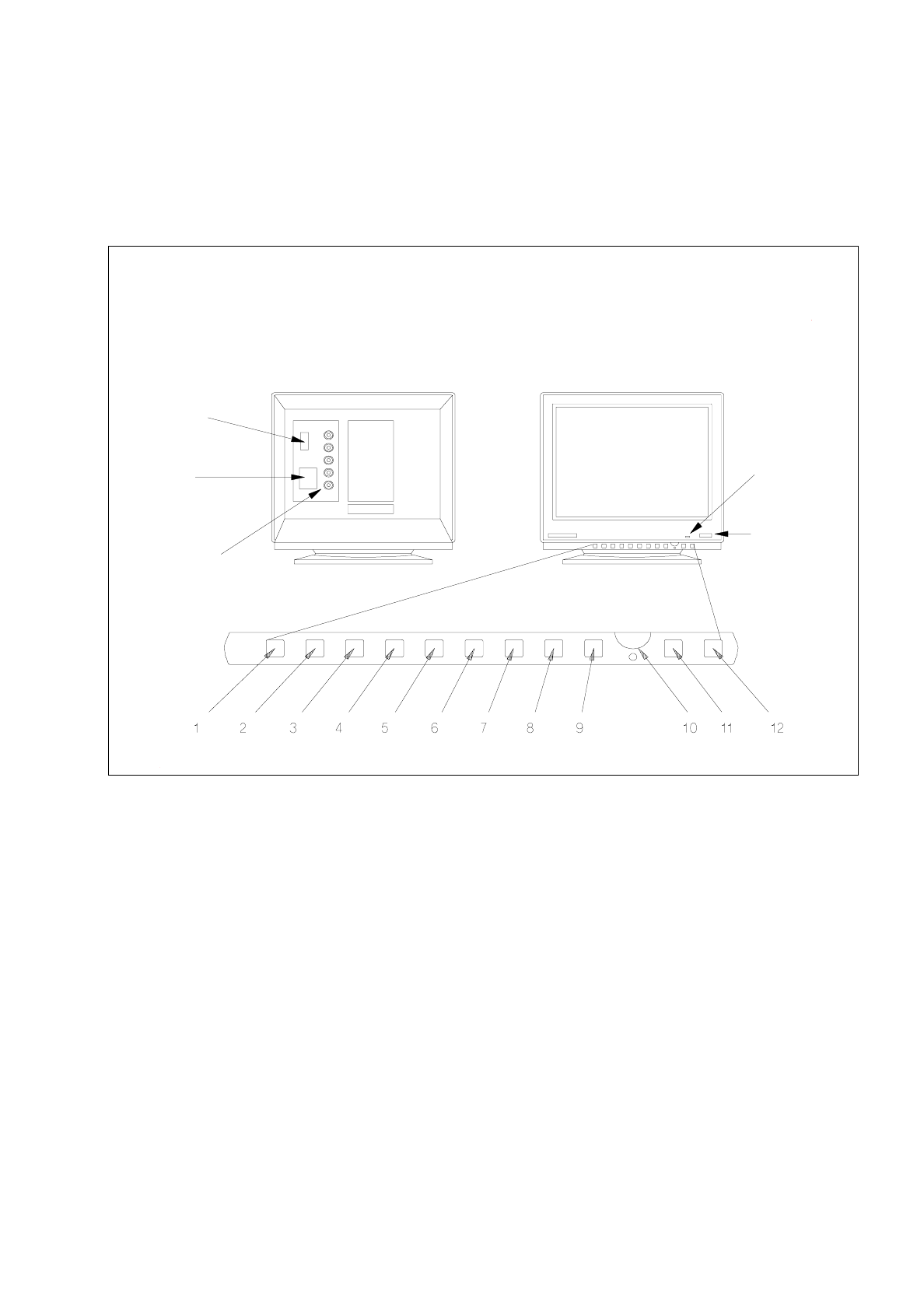

Fig. 1.2.3 Monitor - connections, control elements, setting elements
1 Function key
This key can be used to reset any adjustments made in the factory.
2 Trapezium distortion
Serves to correct any trapezium distortion so as to obtain a recatangular display area.
3 Pin-cushion distortion
The pin-cushion distortion at the left and right edge of the screen can be reduced to a minimum using
this button.
4 Vertical screen position (V-Position)
Use this control to optimally position the display vertically.
5 Horizontal screen position (H-Position)
Use this control to optimally position the display horizontally.
power
indicator lamp
power switch
video interface
(connection to
computer)
power
connection
signal inputs
(BNC connections)
rear view front view
1 Hardware / Software Installation User’s Manual Line Computer UNIX
1.2 Hardware Installation Software Version 402.xx Edition 06/96
1 - 8
6
Picture height (V-Size)
Serves to change the picture height.
7
Picture width (H-Size)
Use this control to adjust the picture width.
8
Brightness
The brightness is to be so adjusted that also dark grey scales can be clearly distinguished.
9
Save Button
Use this button to store the adjustments you may have made. If this button is not pressed, no storing
will take place.
10
Adjustment control
This control is used to adjust the functions selected via the buttons. If no selections have been made
this control is used for adjusing the contrast.
11
D-SUB/BNC button
Use this button to select the active video input, i.e. D-SUB or BNC.
The green LED is illuminated if BNC input is active.
12
Demagnetizing switch
Use this switch if color spots or slight misconvergences appear on the screen.
