11 Production Tools / Optimization User’s Manual Line Computer UNIX
11.4 Optimization Dialog Software Version 402.xx Edition 06/96
11 - 30
11.4.3.7 Starting the Restriction Editor
Clicking on the option „Starting Restriction Editor“ on the FILE menu causes the "Feeder Editor: Losplanung“
to be opened. In this editor it is possible to define for the individual lot files given allocations, restrictions, bindings
and exclusions (see chapter 9).
Procedure:
●
Click on a lot file.
●
On the SERVICES menu click on the Starting Restriction Editor option.
„Feeder Editor: Losplanung“ opens.
11.4.3.8 Checking for Producibility
Following the optimization run, a producibility check can be carried out for a lot file or for individual jobs. The
producibility check takes into account all non-productive times, gantry dependencies and vibration times of the
feeders. The results are therefore more accurate than with optimization.
Procedure:
●
Click on a lot file or a job.
●
On the SERVICES menu click on the Perform producibility check option.
A producibility check is then performed.
11.4.3.9 Displaying the Set-Up
In the Set-Up Modification Generator all set-ups and set-up changeover instructions can be displayed and
printed out (see chapter 14, section 14.5).
Procedure:
●
Click on a job.
●
On the SERVICES menu click on the Display set-up option.
The „Set-Up Modification Generator“ opens.
11.4.3.10 Displaying Result File
The complete results of the set-up optimization and the producibility check are saved to different files. These
files can be viewed by means of the file display window and printed out. They contain the data in ASCII format
and are shown in tabulated form.
Result file of set-up optimization
The results of set-up optimization of all jobs are saved to the
xx.lose/.eg
file. It contains a complete listing of all
results.
Procedure:
●
Click on a lot file.
●
On the SERVICES menu click on the Display result file option.
The file display window for the results of the selected lot file is displayed.
User’s Manual Line Computer UNIX 11 Production Tools / Optimization
Software Version 402.xx Edition 06/96 11.4 Optimization Dialog
11 - 31
Result file of producibility check
The results of the producibility check for each job are saved to a separate result file
xx.AR/.NC
. This file contains
a complete listing of all data concerning the production of the job.
Procedure:
●
Click on a lot file.
●
Click on a job.
●
On the SERVICES menu click on the
Display result file
.
The file display window for the results of the selected job is displayed.
11.4.4 Command Area „Actions“
In the "Actions" command area, the icons are displayed by means of which the optimization of a lot file can be
started and aborted, as well as the results of the optimization run displayed.
-

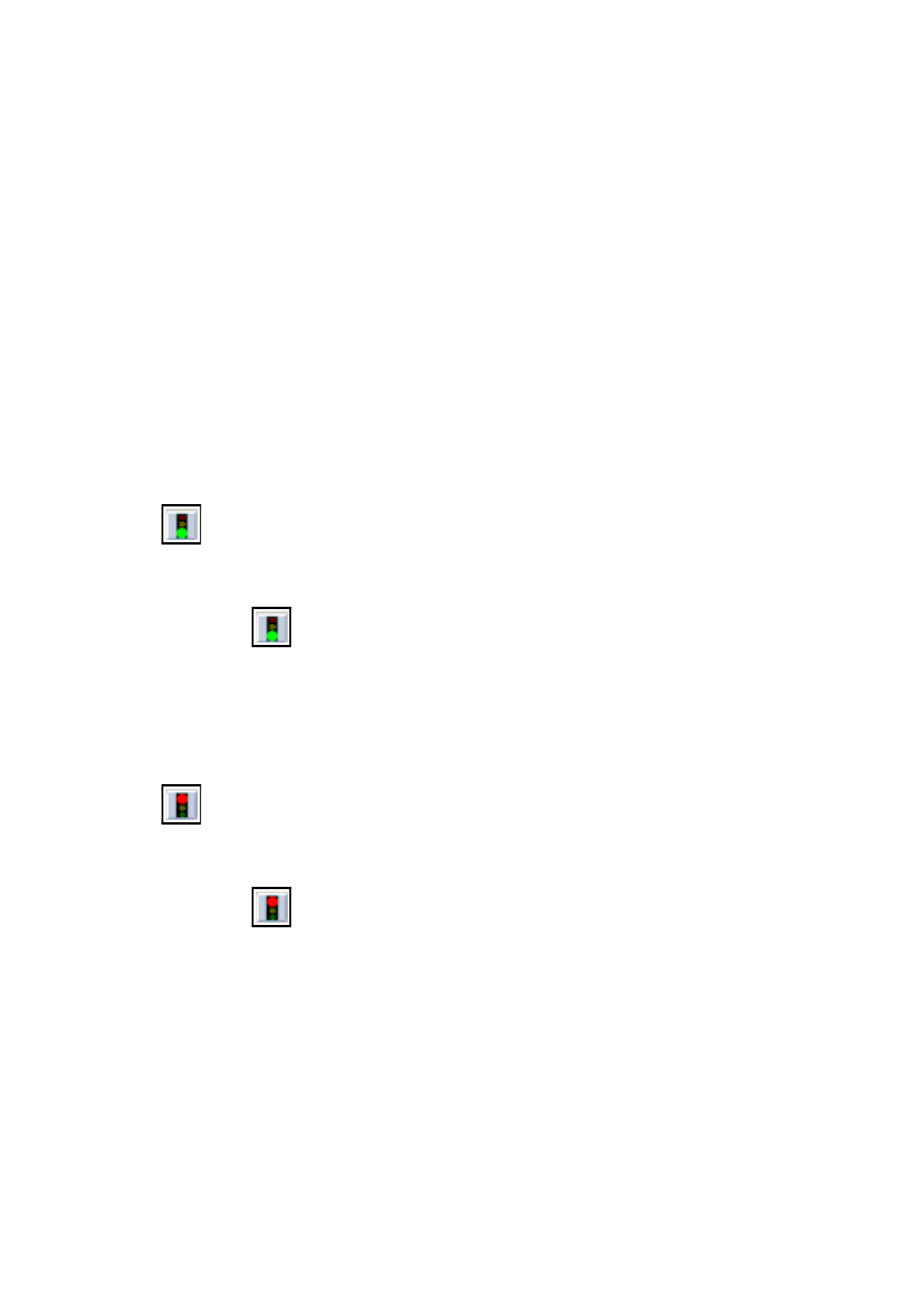

Start Optimization
Clicking on this icon causes the optimization process to be started.
●
Click on
●
Click on the lot file you wish to be optimized.
The optimization process is started. The progress of the optimization process can be monitored in
the info box. The status of the lot file is described as „In progr.“.
After optimization has been successfully completed, the state of the lot file is identified as
„Optimized“.
-
Stop Optimization
Clicking on this icon allows the current optimization process to be aborted.
●
Click on
●
Click on the lot file that is being optimized.
The optimization run in progress is aborted. The status of the lot file now changes to „Aborted“.
If optimization of this lot file was aborted, it may be restarted at any time.
11 Production Tools / Optimization User’s Manual Line Computer UNIX
11.4 Optimization Dialog Software Version 402.xx Edition 06/96
11 - 32
-
Display Results
This icon enables the results of the set-up optimization process to be displayed graphically both for the
entire lot file or for the individual jobs of a lot file. Moreover, the results of the producibility check can be
displayed for the individual jobs.
Displaying the optimization results for the entire lot file:
●
The results of optimization are displayed in the „Optimization results for xx.lose“ window
(see Fig. 11.4.3).

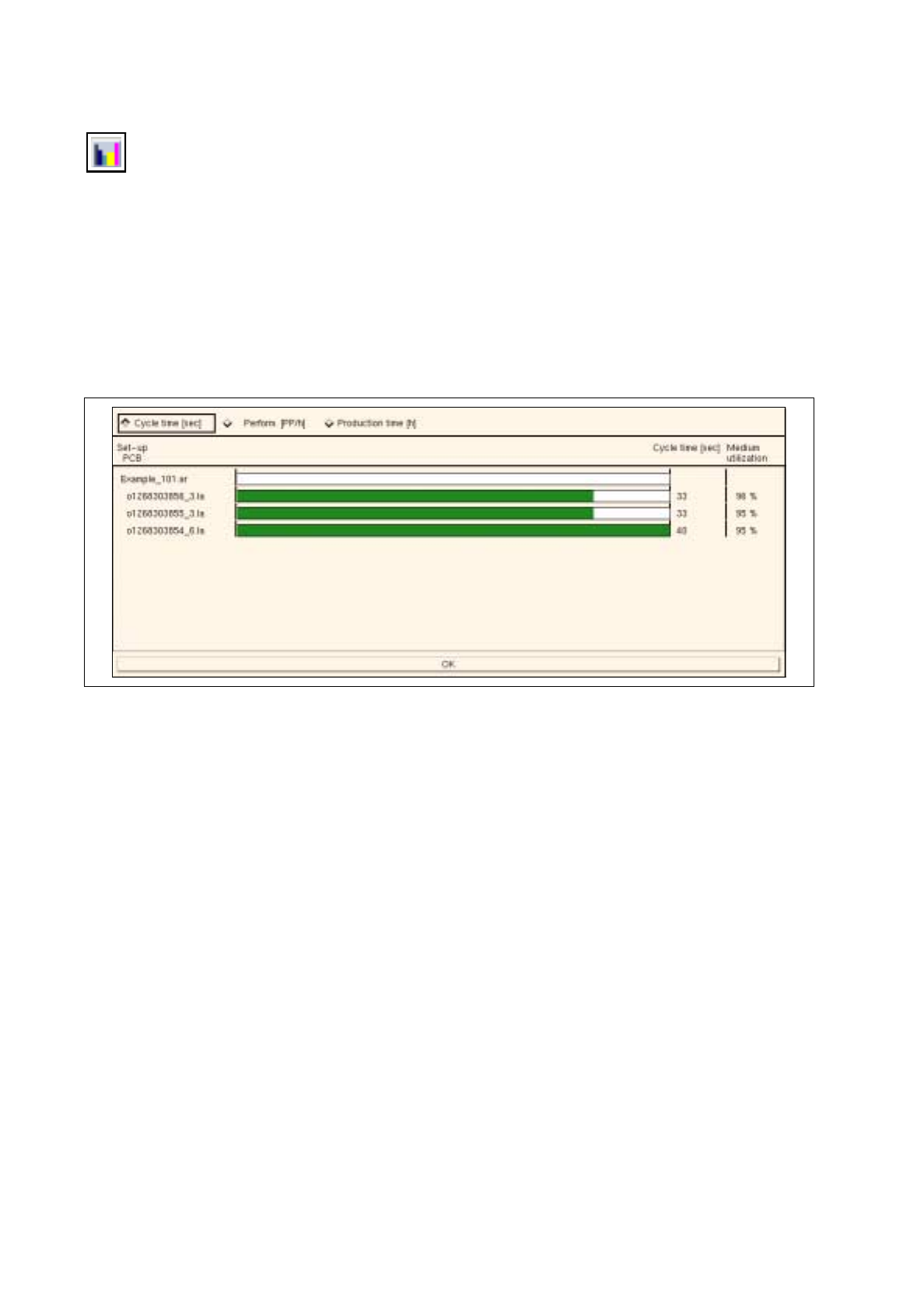

Fig. 11.4.3 „Optimization results for xx.lose“ window for a lot file
In the „Optimization results for xx.lose“ window, the following results can be called up:
-
Cycle time [sec]:
activation of this button causes the cycle time expected by Optimization, i.e. the
placement time (in seconds), to be displayed for all PCBs of the lot file.
-
Perform. [PP/h]:
activation of this button causes the performance of the line (in components per hour)
expected by Optimization to be displayed for all PCBs of the lot file.
-
Production time [h]:
activation of this button causes the production time (in hours) expected by Opti-
mization to be displayed for all PCBs of the lot file. The yellow bars represent the length of time re-
quired for the changeover to a different setup.
