User’s Manual Line Computer UNIX 13 Production Tools / Set-Up Software Version 402.xx Edition 06/96 13.1 Set-Up Edit or (Feeder Part and WPC Editors) 13 - 13 13.1.5.1 Fee der list The feed er list contains all Si emens-d…
13 Production Tools / Set-Up User’s Manual Line Computer UNIX
13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 402.xx Edition 06/96
13 - 14
-
Feeder
Clicking on the "Feeder" icon causes a list of all feeders with their designations to be displayed in the
"Feeder list" display area.
When the right scroll bar is moved downward, also those feeders can be displayed that are not visible
in the window.
When the lower scroll bar is moved to the right, the front of the feeders with their blue-colored
divisions can be displayed.
Example of the designation of the feeders:
FD~S_G_8_EL FD
: feeder
S_G_8_EL
: type designation (8mm-tape feeder, electric)
-
Waffle-pack tray
Clicking on the "Waffle-pack tray" icon causes one or several predefined waffle-pack trays with their
designations to be displayed in the display area.
The number of the divisions and the offset values for the waffle-pack trays of the customers must be
adapted in the Packaging Editor (see section 13.1.5.3).
Example of the designation of the waffle-pack trays:
FM~(5x4)~[ QFP ] FM
: waffle-pack tray
(5x4)
: spacing: divisions in X and Y
[ QFP ]
: component QFP on waffle-pack tray
-
Module
Clicking on the "Module" icon causes a list of all modules with their designations to be displayed in the
display area.
When the lower scroll bar is moved to the right, the front of the modules can be displayed.
Example of the designation of the modules:
MD~S_L_45_95 MD
: module
S_L_45_95
: type designation
User’s Manual Line Computer UNIX 13 Production Tools / Set-Up
Software Version 402.xx Edition 06/96 13.1 Set-Up Editor (Feeder Part and WPC Editors)
13 - 13
13.1.5.1 Feeder list
The feeder list contains all Siemens-defined types of feeders, modules, waffle-pack trays and waffle-pack tray
carriers.They can be selected individually and allocated to the tracks or levels in the display area of the main
window.
Clicking on the "Feeder list" option on the FILE menu causes the "Feeder list" window to be opened (see Fig.
13.1.8). Moreover, the feeder list can also be opened by clicking on the "Feeder list" icon in the command area.

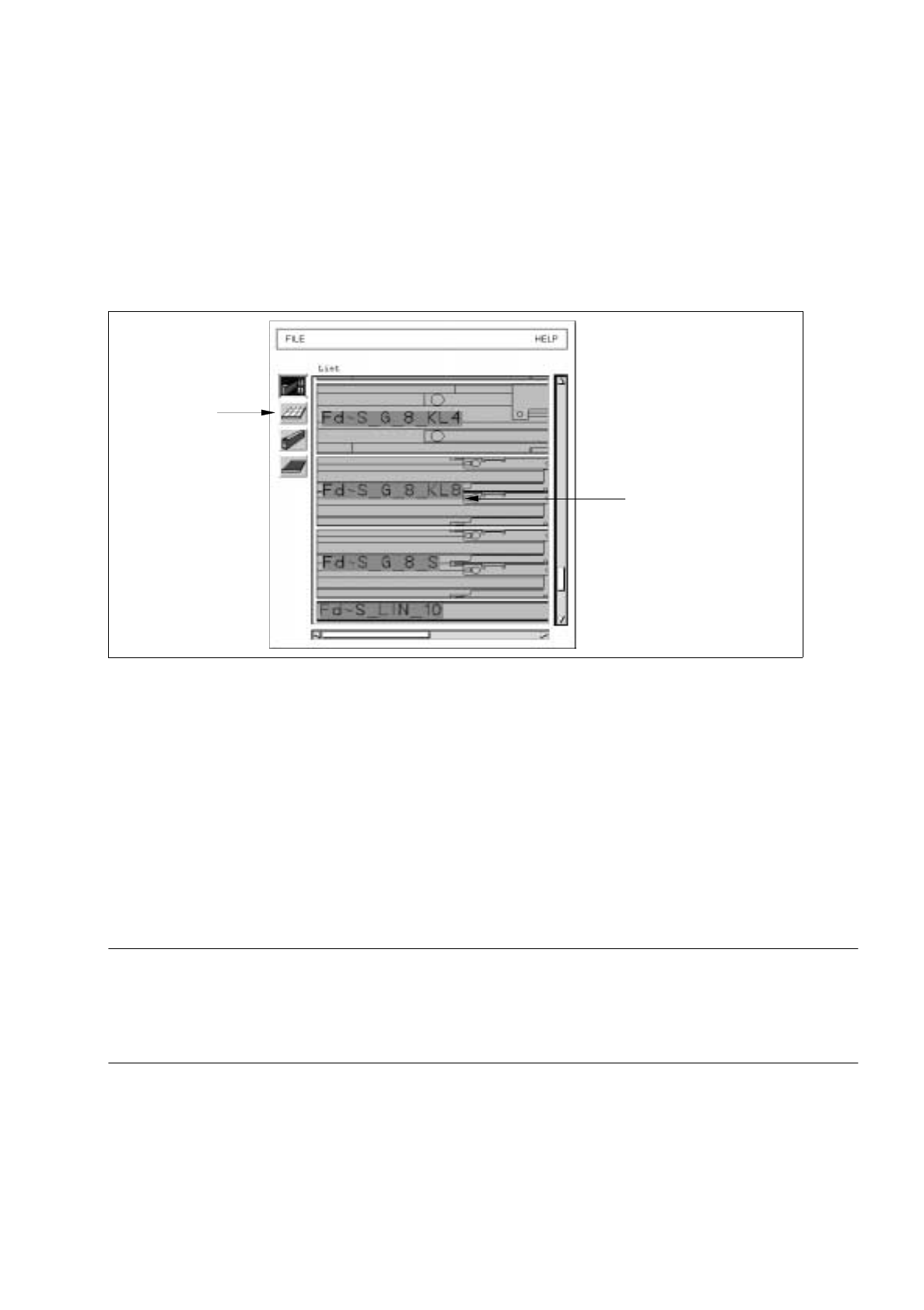

Fig. 13.1.8 Feeder list
The "Feeder list" window is subdivided into the following areas:
-
Menu bar
-
Command area "Feeders/Waffle-pack trays/Modules/Waffle-pack tray carriers"
-
Display area "Feeder list"
Menu Bar
The menu bar contains the menus "FILE" and "HELP".
☞
NOTE
The functions and the operation of the menus "FILE" and "HELP" are similar to those of other application
programs of the line computer and are described in detail in chapter 2 "General Information on Using the
Program".
Command area "Feeders/Waffle-pack trays/Modules/Waffle-pack tray carriers"
In this area the icons for the feeders, waffle-pack trays, modules and waffle-pack tray carriers are displayed.
Clicking on the icons causes the respective lists to be opened and displayed in the "Feeder list" display area.
command area
"Feeders/
Waffle-pack trays/
display area
"Feeder list"
Modules/
Waffle-pack tray
carriers"
13 Production Tools / Set-Up User’s Manual Line Computer UNIX
13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 402.xx Edition 06/96
13 - 12
Fig. 13.1.7 Virtual Level in the Feeder Part Editor
13.1.5 SERVICES Menu
The SERVICES menu on the menu bar of both editors contains the following options:
-
° Feeder list (see section 13.1.5.1 )
-
° Options list (only Feeder Part Editor, see section 13.1.5.2)
-
° Packaging box (see section 13.1.5.3)
-
° Nozzle Changer (only Feeder Part Editor, see section 13.1.5.6)
All four options are preceded by a small circle (°) indicating that the option is not activated. As soon as one
of the options is activated, the circle is displayed with an "X" through it (
¤
).
