User’s Manual Line Computer UNIX 13 Production Tools / Set-Up Software Version 402.xx Edition 06/96 13.1 Set-Up Edit or (Feeder Part and WPC Editors) 13 - 11 Fig. 13.1.6 Main Window of the WPC Editor for t he Vir tual Le…
13 Production Tools / Set-Up User’s Manual Line Computer UNIX
13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 402.xx Edition 06/96
13 - 12

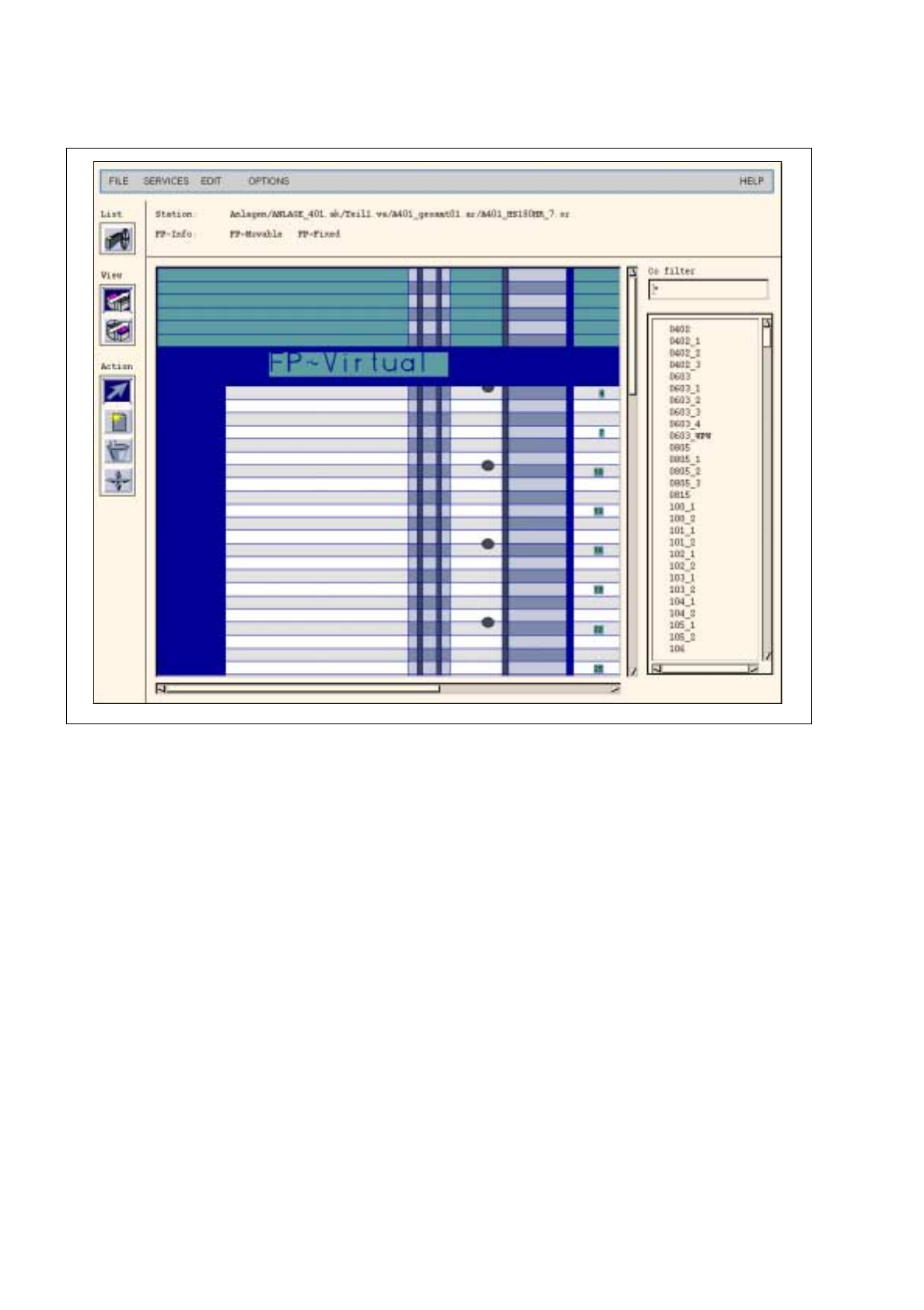

Fig. 13.1.7 Virtual Level in the Feeder Part Editor
13.1.5 SERVICES Menu
The SERVICES menu on the menu bar of both editors contains the following options:
-
° Feeder list (see section 13.1.5.1 )
-
° Options list (only Feeder Part Editor, see section 13.1.5.2)
-
° Packaging box (see section 13.1.5.3)
-
° Nozzle Changer (only Feeder Part Editor, see section 13.1.5.6)
All four options are preceded by a small circle (°) indicating that the option is not activated. As soon as one
of the options is activated, the circle is displayed with an "X" through it (
¤
).
User’s Manual Line Computer UNIX 13 Production Tools / Set-Up
Software Version 402.xx Edition 06/96 13.1 Set-Up Editor (Feeder Part and WPC Editors)
13 - 11
Fig. 13.1.6 Main Window of the WPC Editor for the Virtual Level
Structure and operation of the WPC Editor for the Virtual Level and and that of the Waffle-Pack Changer are
identical and are described in detail in section 13.1.4.
If a Virtual Level exists, the same is displayed upon opening the Feeder Part Editor. The waffle-pack trays
defined thereon are, however, not displayed (see Fig. 13.1.7).
However, no waffle-pack trays can be allocated. Allocations can only be made in the WPC Editor.
waffle-pack tray carrier
waffle-pack tray
(spacing 5x4, comp.1206)
display area "Levels"
(one level only)
13 Production Tools / Set-Up User’s Manual Line Computer UNIX
13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 402.xx Edition 06/96
13 - 10
13.1.4.1 Starting the WPC Editor for the Virtual Level of the HS180
The Virtual Level of an HS180 is located above the left feeder part. Waffle-pack trays can be placed onto a
waffle-pack tray carrier at this level.
The WPC Editor for Virtual Levels is opened from the desktop (see Fig. 13.1.5).
Fig. 13.1.5 Starting the WPC Editor for the Virtual Level
●
Click on the Virtual Level.
The FSB containing the file selection "Set-up selection" is opened.
●
Select a set-up from the list or enter a name (xx.ar), click on OK.
The WPC Editor is opened.
The WPC Editor for the Virtual Level disposes of one level only. For this level only type 1 waffle-pack trays can
be defined (see Fig. 13.1.6).
virtual level
