13 Production Tools / Set-Up User’s Manu al Line Computer UNIX 13.1 Set-Up Editor (Feeder Part and W PC Editors) Software Version 402.xx Edition 06/96 13 - 4 Menu Bar The menu bar con tains the menus "F ILE", &…

User’s Manual Line Computer UNIX 13 Production Tools / Set-Up

Software Version 402.xx Edition 06/96 13.1 Set-Up Editor (Feeder Part and WPC Editors)

13 - 5

deleting

moving

A detailed description of the icons is contained in section 13.1.7.

Display area

In the display area, the feeder part of a station with the individual tracks is displayed symbolically (see

Fig. 13.1.2).

If feeders or waffle-pack trays have already been defined for the feeder part displayed, these will be displayed

on their respective tracks when the Feeder Part Editor is opened.

The tracks are displayed in gray and white. The black dots symbolize the spherical caps of the feeder part.

The track number is indicated at the right edge of the feeder part. By moving the lower scroll bar toward the

right this area becomes visible.

The feeders are represented in gray with blue contours. The divisions are shown as small boxes.

If components have already been defined, the names of the components are displayed at the right edge.

At the upper and lower border of the feeder part six tracks each are highlighted in green, they are located outside

the normal feeder part. This area can only be assigned on HS180 machines and only to the optical component

centering option.

Filter field "Component filter"

In the "Component filter" field it is possible to limit the list of components contained in the "Components" selection

field. This may be useful when searching for a given component. When so doing, a character string is to be

entered and subsequently the Enter key to be pressed. The "*" character serves as wildcard character and

stands for any other characters, whatever they may be.

Examples: *6

Only components whose last character is a

are displayed.

13*

Only components whose first characters are

are displayed.

All components are displayed.

If a filter was entered which limits the selection too much, the result may also be an empty list. In this case,

more characters must be added to the previously entered filter.

Selection field "Components"

All defined components are listed in the selection field "Components". Moving the scroll car allows components

to be displayed that are located further down on the list. By means of the component filter the display can be

limited to given components.

If the component library is modified in the Data Manager while the Set-Up Editor is open, these changes are

not automatically transferred to the open Set-Up Editor. Only when the editor is closed and re-started, will the

changes be adopted.

13 Production Tools / Set-Up User’s Manual Line Computer UNIX

13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 402.xx Edition 06/96

13 - 4

Menu Bar

The menu bar contains the menus "FILE", "SERVICES", "EDIT", "OPTIONS" and "HELP".

The "SERVICES" menu is described in section 13.1.5, the "EDIT" menu in section 13.1.6.

☞

NOTE

The functions and the operation of the menus "FILE", "OPTIONS" and "HELP" are similar to those of other

application programs of the line computer and are described in detail in chapter 2 "General Information on

Using the Program".

Status Area

The status area contains information on the current set-up and feeder part.

Station:

Indicates the name of the station with the path "Anlagen/line/subline/set-up/station name"

FP-Info:

Names of the two feeder parts of the station

Command area "View"

In this command area, the two icons for the left and right feeder parts are displayed. By clicking on the icons it

is possible to switch from the display area of one feeder part to the other feeder part of a station.

The upper icon refers to the left feeder part, the lower icon to the right feeder part. The arrow reflects the direction

of travel.

The icon corresponding to the current feeder part is highlighted in each case.

Command area "Lists"

In this command area the "Feeder list" icon is displayed by means of which the feeder list can be opened. In

the feeder list all possible feeders, modules, waffle-pack trays and waffle-pack tray carriers are contained. They

can be selected individually and allocated to the tracks in the display area of the main window.

Moreover, the feeder list can be opened from the FILE menu by means of the "Feeder list" option.

For a detailed description refer to section 13.1.5.1.

Command area "Action"

In this command area the icons are displayed by means of which the following actions can be executed:

selecting

creating

User’s Manual Line Computer UNIX 13 Production Tools / Set-Up

Software Version 402.xx Edition 06/96 13.1 Set-Up Editor (Feeder Part and WPC Editors)

13 - 3

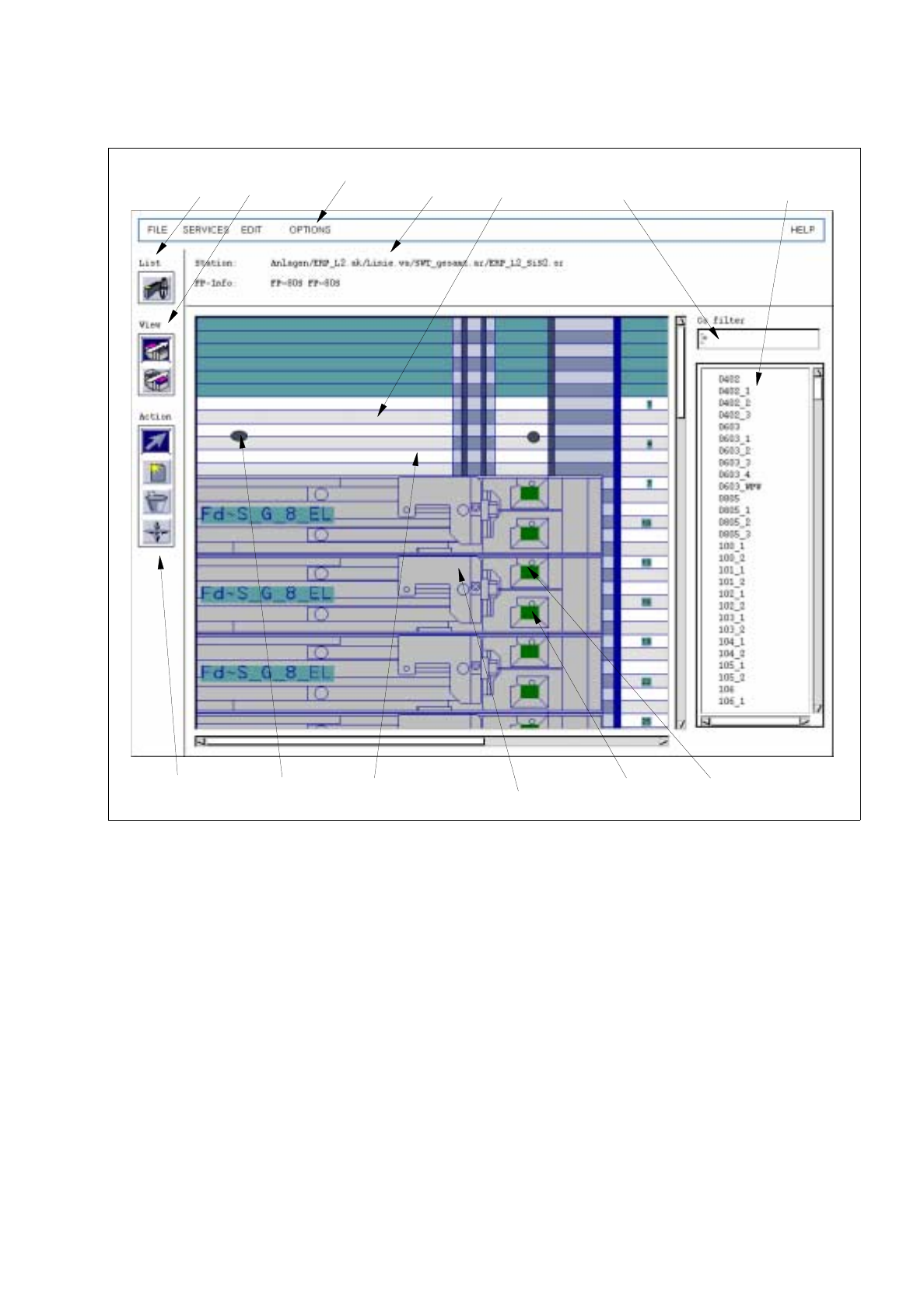

Fig. 13.1.2 Main Window of Feeder Part Editor

The main window of the Feeder Part Editor is subdivided into the following areas:

Menu bar

Status area

Command area "View"

Command area "Lists"

Command area "Action"

Display area

Filter field "Component filter"

Selection field "Components"

status filter field selection field

"Components"

menu bar

spherical

track

feeder

(8mm-tape feeder, electr.)

division 2 division 1

command

area "Lists"

command area

"Action"

area

display

area

"Component filter"

cap

command

area "View"
