14 Control / Control Modules User’s Manual Line Computer UNIX
14.5 Set-Up Modification Generator Software Version 402.xx Edition 06/96
14 - 44
●

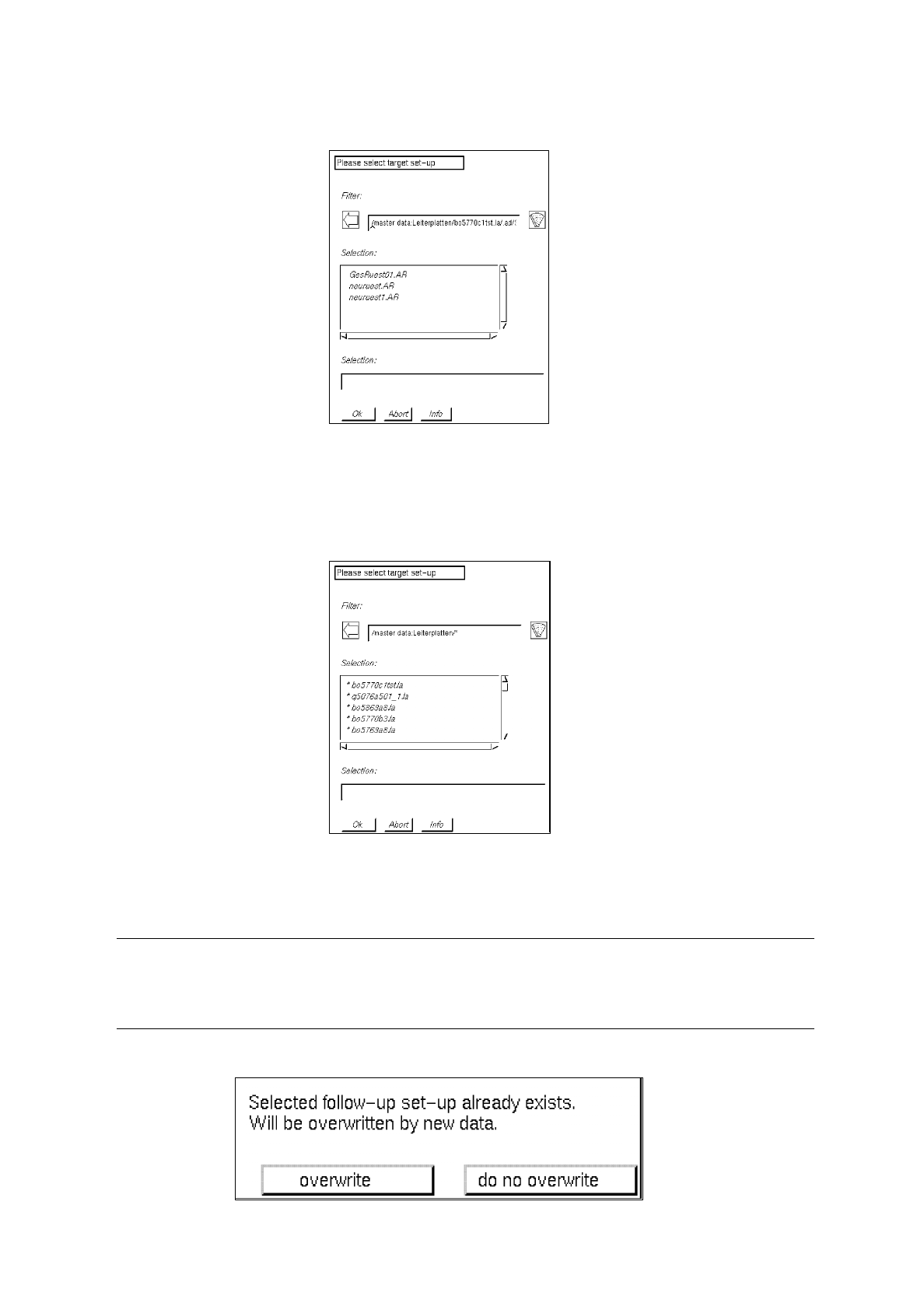

Select target set-up "xx.AR" by double-clicking.
●
Open the directory "*master data:Anlagen:xx.ak:xx.va" by double-clicking.
All existing follow-up set-ups are now displayed in the FSB.
●
Enter name xx
.ar
for the new follow-up set-up to be created and confirm with
OK
, or select
existing follow-up set-up by double-clicking.
☞
NOTE
When the setting
with confirmation
has been selected (see section 14.5.3.1) and an
existing follow-up set-up is selected, the following dialog box is displayed:
User’s Manual Line Computer UNIX 14 Control / Control Modules
Software Version 402.xx Edition 06/96 14.5 Set-Up Modification Generator
14 - 45
●
Click on
overwrite
when the data are to be overwritten.
Or else,
●
click on
do not overwrite
when the data are not to be overwritten.
●

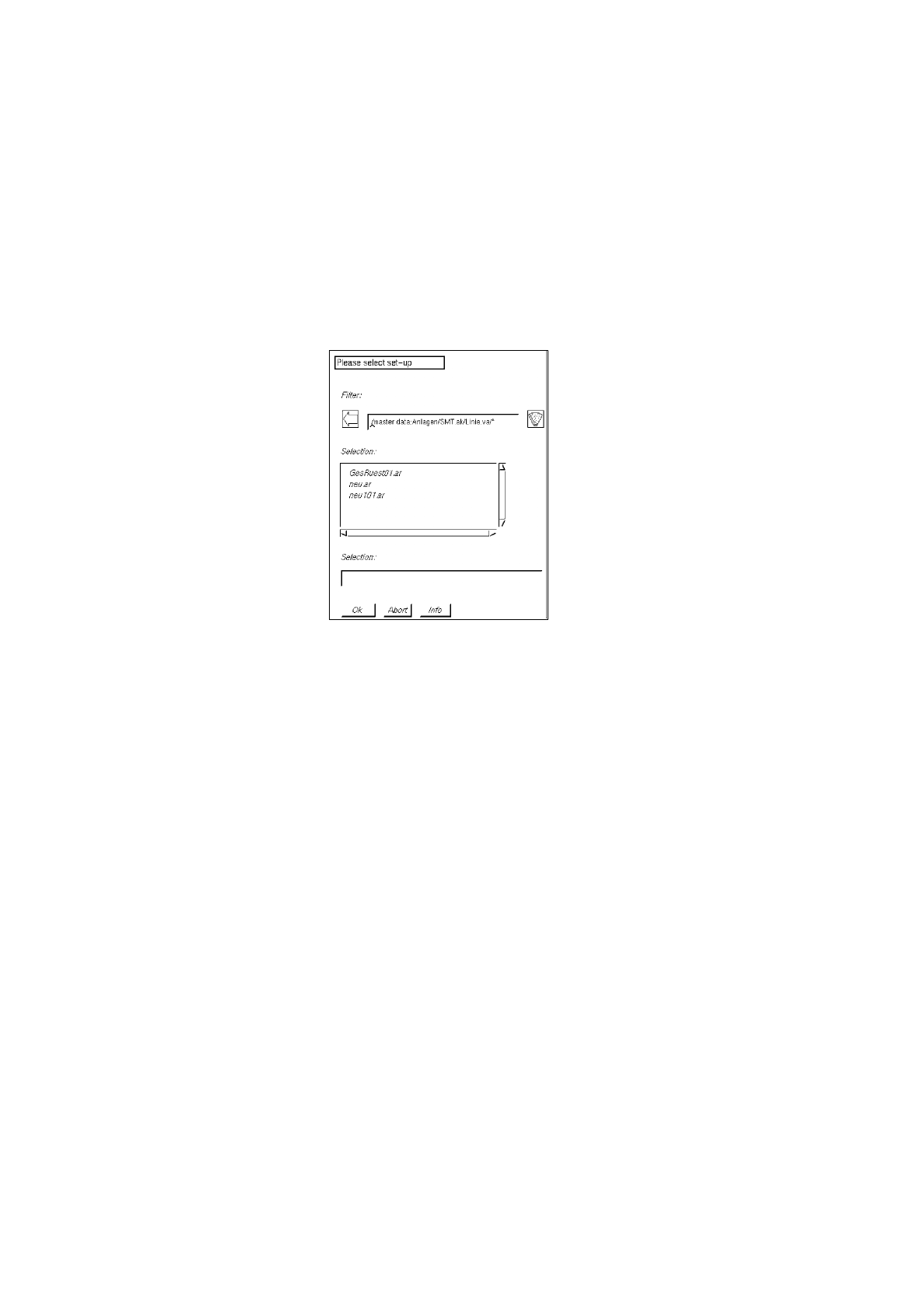

Enter new name xx
.ar
for the follow-up set-up in the FSB and confirm with
OK
.
The FSB is closed and the main window of the Set-Up Modification Generator is displayed on the
screen.
-
Set-up
-->
Set-up
This option enables the user to obtain instructions for the changeover from an initial set-up to be
specified (selected) to a follow-up set-up that must likewise be specified (selected).
●
Click on button
Set-up
-->
Set-up
.
The selection window is closed and the main window of the Set-Up Modification Generator toge-
ther with the FSB for the selection of the follow-up set-up, which is located above it, is opened.
●
Open the directory "*master data:Anlagen" by double-clicking.
●
Successively select line "*xx.ak" and subline "*xx.va" by double-clicking.
●
Select follow-up set-up "xx.ar" from the FSB (see example on page 14 - 43) by double-clicking.
In the FSB a prompt requesting the selection of an initial set-up is now displayed.
●
Open the directory "*master data:Anlagen:xx.ak" by double-clicking.
●
Successively select subline "*xx.va" and initial set-up "xx.ar" by double-clicking.
The FSB is closed and the main window of the Set-Up Modification Generator is displayed on the
screen.
-
Set-up
-->
PCB-specific set-up
This option enables the operator to obtain instructions for the changeover from an initial set-up to be
specified (selected) to a follow-up set-up for the production of a specific PCB type.
●
Click on button
Set-up
-->
PCB-specific set-up
.
The selection window is closed and the main window of the Set-Up Modification Generator
together with the FSB for the selection of the target set-up, which is located above it, is opened.
(see example on page 14 - 44).
●
Open the directory "*master data:Leiterplatten" by double-clicking.
●
Successively select PCB "*xx.la", "*.ad", line "*xx.AK" and subline "*xx.VA" by double-clicking.
The FSB now displays a list of possible target set-ups.
●
Select set-up "xx.AR" which is to serve as default set-up for the target set-up, by double-clicking.
In the FSB a prompt requesting the selection of an initial set-up is now displayed.
●
Open the directory "*master data:Anlagen:xx.ak" by double-clicking.
●
Successively select subline "*xx.va" and initial set-up "*xx.ar" by double-clicking.
●
Open the directory "*master data:Anlagen:xx.ak:xx.va" by double-clicking.
All previously defined set-ups are displayed in the FSB (see example on page 14 - 43).
●
Enter name xx
.ar
for the new follow-up set-up to be created and confirm with
OK
, or select
existing follow-up set-up by double-clicking.
The FSB is closed and the main window of the Set-Up Modification Generator is displayed on the
screen.
14 Control / Control Modules User’s Manual Line Computer UNIX
14.5 Set-Up Modification Generator Software Version 402.xx Edition 06/96
14 - 46
-
Display set-up
This option enables the operator to have a selected set-up displayed and printed out, if necessary.
●
Click on button
Display set-up
.
The selection window is closed and the main window of the Set-Up Modification Generator
together with the FSB for the selection of the set-up, which is located above it, is opened.
●
Open the directory "*master data:Anlagen" by double-clicking.
●
Successively select line "*xx.ak" and subline "*xx.va" by double-clicking.
All previously defined set-ups are displayed in the FSB.
●
Select set-up "xx.ar" by double-clicking.
The FSB is closed and the main window of the Set-Up Modification Generator is displayed on the
screen. In the display area of the main window (see Fig. 14.5.2) the set-up for the station selected
from the selection field "Stations" is displayed.
-
Display PCB-specific part of set-up
This option enables the operator to display the set-up for a given PCB type and print it out, if
necessary.
●
Click on button
Display PCB-specific part of set-up
.
The selection window is closed and the main window of the Set-Up Modification Generator
together with the FSB for the selection of the PCB, which is located above it, is opened.
●
Open the directory "*master data:Leiterplatten" by double-clicking.
●
Successively select the PCB "*xx.la", "*.ad", line "*xx.AK" and subline "*xx.VA" by double-clicking.
A list of the set-ups that can be chosen for the selected PCB type is displayed in the FSB.
