User’ s Manual SIPLACE Line Computer UNI X 17.2 Description of Components and PCBs Software V e rsion 402.xx Edition 06/96 17.2.2 PCB 2: Focus on Pac kage Form Descr iption 17 - 2 7 To enter the dimensional data of the P…
17.2 Description of Components and PCBs User’s Manual SIPLACE Line Computer UNIX
17.2.2 PCB 2: Focus on Package Form Description Software Version 402.xx Edition 06/96
17 - 26

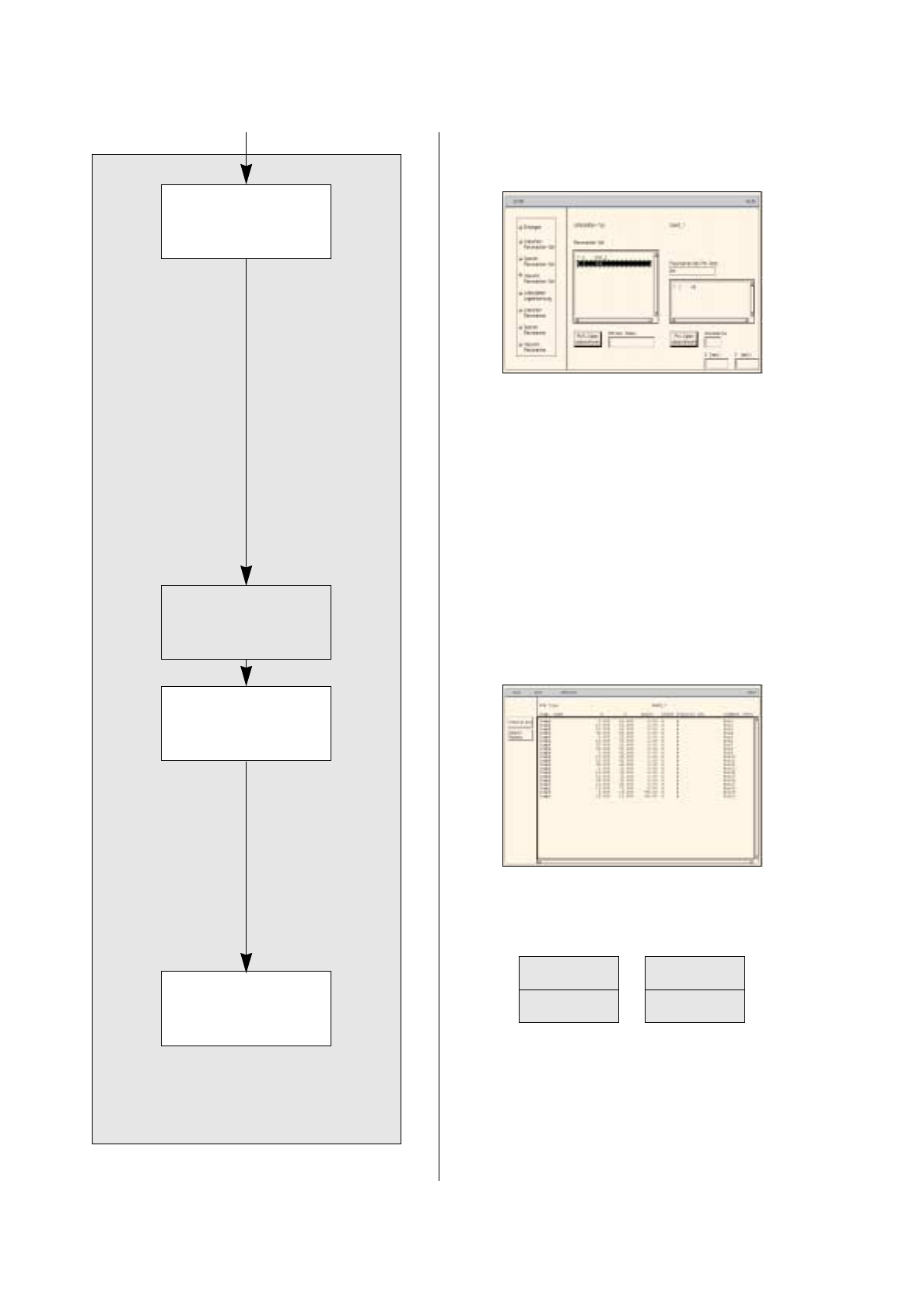

PCB description
Defining fiducials
continued from page 17-24
Entering dimensions
of the PCB
continued on page 17-28
Cluster Editor
Fiducial Editor
User’s Manual SIPLACE Line Computer UNIX 17.2 Description of Components and PCBs
Software Version 402.xx Edition 06/96 17.2.2 PCB 2: Focus on Package Form Description
17 - 27

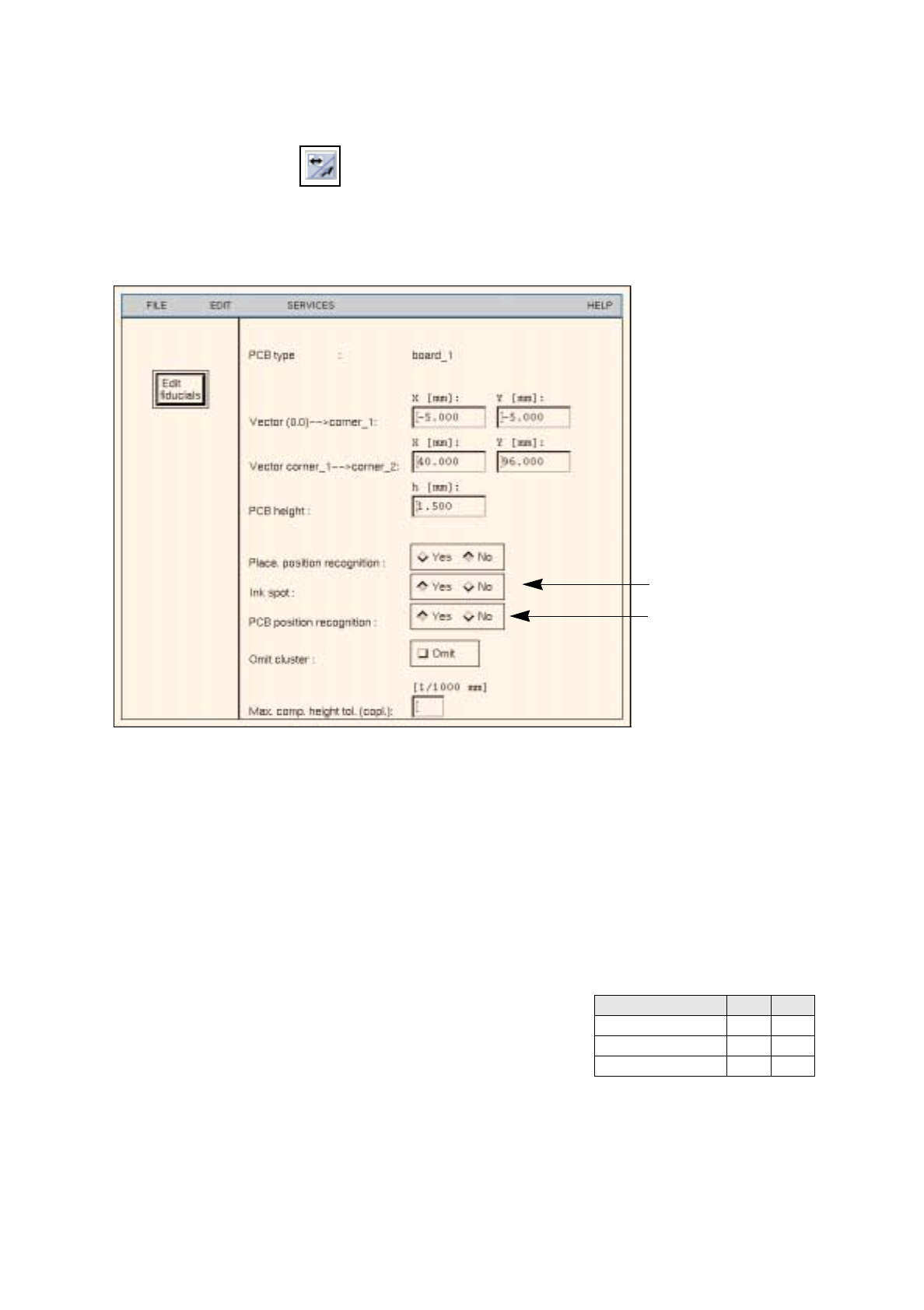

To enter the dimensional data of the PCB, proceed as follows:
135.Click on the Menu icon .
136.Click on the PCB (rectangle).
137.Click on the
Cluster Editor
option on the
SERVICES
menu.
The Cluster Editor is opened.
138.Enter the dimensions of the PCB. See Fig. 17.2.4 on pages 17-10 and Fig. 17.2.5 .
Fig. 17.2.5 Cluster Editor for PCB 2
To define the fiducials, proceed as follows:
139.In the Cluster Editor click on the
Edit fiducials
button.
The Fiducial Editor is opened.
140.Activate the
Insert
button.
141.Click on the
Fiducial set name
editing field.
142.Enter a name for the new fiducial set, here:
Set_1
.
143.Click on the
Accept fiducial set
button.
The fiducial set Set_1
appears on the fiducial list.
144.Click on fiducial set Set_1 on the fiducial list.
145.Click on the
Fiducial
editing field.
146.Enter the fiducial number for the first fiducial, here:
48
.
147.Click on the editing fields for the coordinates, enter coordinates
(do not confirm with Enter key!), here: see chart:
148.Click on the
Accept fiducial data
button.
The data of the fiducial are transferred to the list of the fiducials of the fiducial set.
149.Define the remaining fiducials accordingly, here:
fiducials
48
and
48
.
150.Activate the
PCB position recognition
button.
151.Click on the fiducial set Set_1 on the fiducial list.
The fiducial set
Set_1
is marked by a preceeding
L
for PCB position recognition.
Fiducial number X Y
48 30 0
48 0 86
48 30 86
Activate ink spot
Activate PCB pos. recognition
17.2 Description of Components and PCBs User’s Manual SIPLACE Line Computer UNIX
17.2.2 PCB 2: Focus on Package Form Description Software Version 402.xx Edition 06/96
17 - 28
No clusters and single circuits are present.
FILE
Save
FILE
Quit
Saving PCB data
continued from page 17-26
Entering placement
positions
Defining ink spot
Creating clusters and
single circuits
PCB description
