User’s Manual Line Computer UNIX 18 Ap pendix Software Version 402.xx Edition 06/96 18.1 General Specifications Concerning LC Data 18 - 3 18.1.3 Adhesive P attern Code
18 Appendix User’s Manual Line Computer UNIX
18.1 General Specifications Concerning LC Data Software Version 402.xx Edition 06/96
18 - 2
18.1.2 Adhesive Pattern
18.1.2.1 Adhesive Pattern Coordinates
Pattern Coordinates
Dot 1 Dot 2 Dot 3
# x 1y 1x 2y 2x 3y 3
100- - - -
2--2,20-2,20
3 - - 4,0 0 - 4,0 0
4 - - 7,0 0 - 7,0 0
5 0 0 2,2 0 - 2,2 0
6 0 0 4,0 0 - 4,0 0
7 0 0 7,0 0 - 7,0 0
8 - - 2,2 - 2,2 - 2,2 2,2
9 - - 4,0 - 4,0 - 4,0 4,0
10 - - 7,0 - 7,0 - 7,0 7,0
11 - - 2,2 2,2 - 2,2 -2,2
12 - - 4,0 4,0 - 4,0 - 4,0
13 - - 7,0 7,0 - 7,0 -7,0
14 0 0 2,2 - 2,2 - 2,2 2,2
15 0 0 4,0 - 4,0 - 4,0 4,0
16 0 0 7,0 - 7,0 - 7,0 7,0
17 0 0 2,2 2,2 - 2,2 - 2,2
18 0 0 4,0 4,0 - 4,0 - 4,0
19 0 0 7,0 7,0 - 7,0 - 7,0
20
User’s Manual Line Computer UNIX 18 Appendix
Software Version 402.xx Edition 06/96 18.1 General Specifications Concerning LC Data
18 - 3

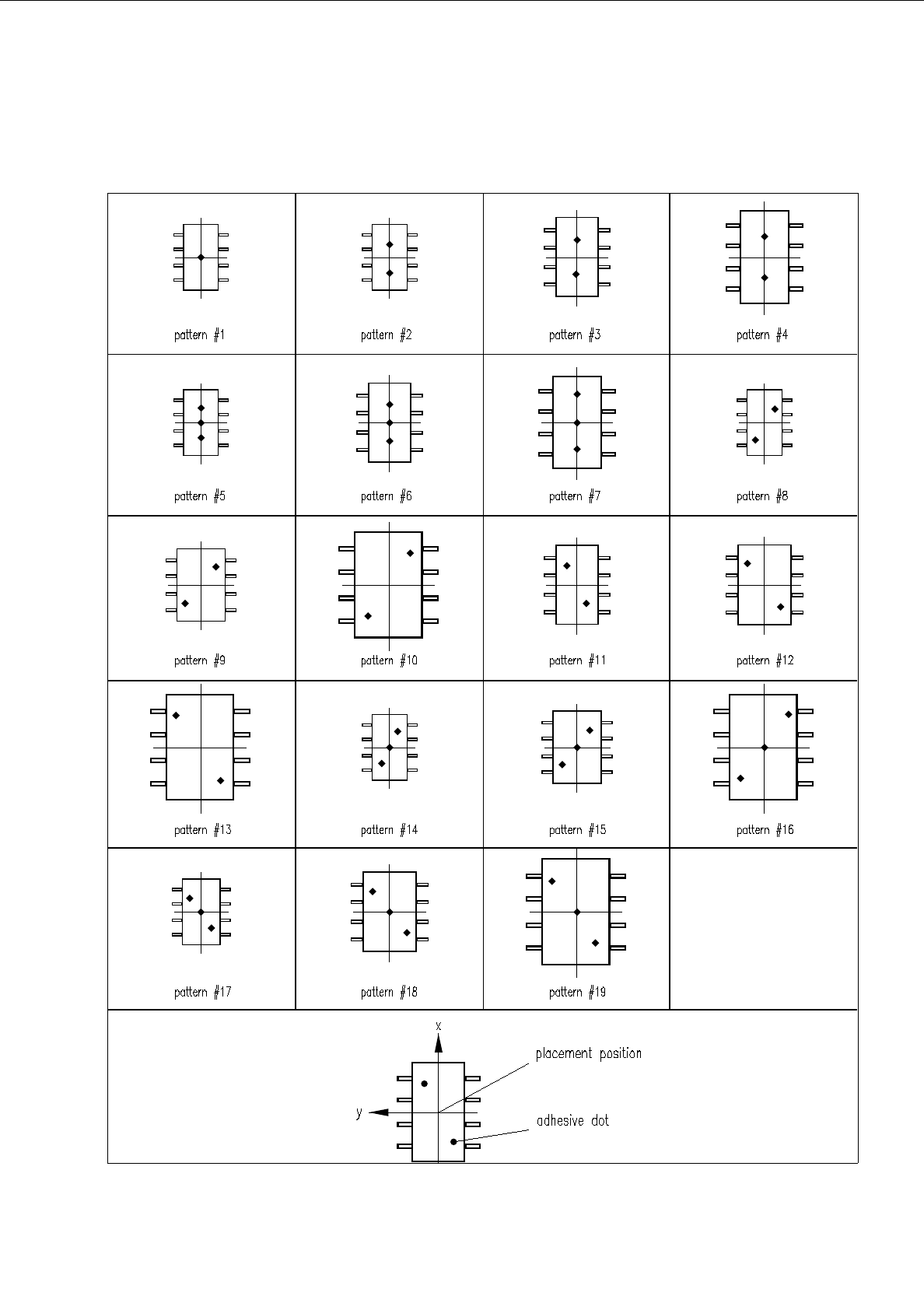

18.1.3 Adhesive Pattern Code
18 Appendix User’s Manual Line Computer UNIX
18.1 General Specifications Concerning LC Data Software Version 402.xx Edition 06/96
18 - 4
18.1.4 Allocation Package Form Numbers, Adhesive Patterns and Dispense Settings
Package Form Designation GF No.
Adhesive
Pattern
Dispense
Setting
0402 100 1 1
0603 102 1 2
0805 103 1 4
1206 105 1 9
1210 106 1 9
1812 110 1 12
2010 111 1 14
2220 112 1 14
DPACK, T0252 404 1 9
DIL4 570
DIL6 571
DIL8 572
DO214_AA, SOD6 421
DO214_AB, SOD15 422
DO214_AC 420
ECS14*6.25*7 360
ECV A d3*h5.7 340
ECV B d4*h5.7 341
ECV C d5*h5.7 342
ECV D d6.3*h5.7 343
ECV d8*h6.5 351
ECV d8*h10.6 350
ECV d10.2*h10.5 352
KALIB_01_4x4_080894 1
KALIB_02_SO20 2
KALIB_03_SO14 3
KALIB_11_PLCC68 11
KALIB10 176 COPLAN 10
KALIB10 60 COPLAN 12
Ceramic resonator 1200 1 12
MAXIMELF 202 1 20
