Check others and replace exhausted parts
Chapter 6
Advanced Chip Shooter
DECAN S2 Operation Handbook
6-4
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Checking Feeder > Checking part reel (Electrically Driven)
Checking Feeder
Check others and replace exhausted parts
4. Checking part reel (Electrically Driven)

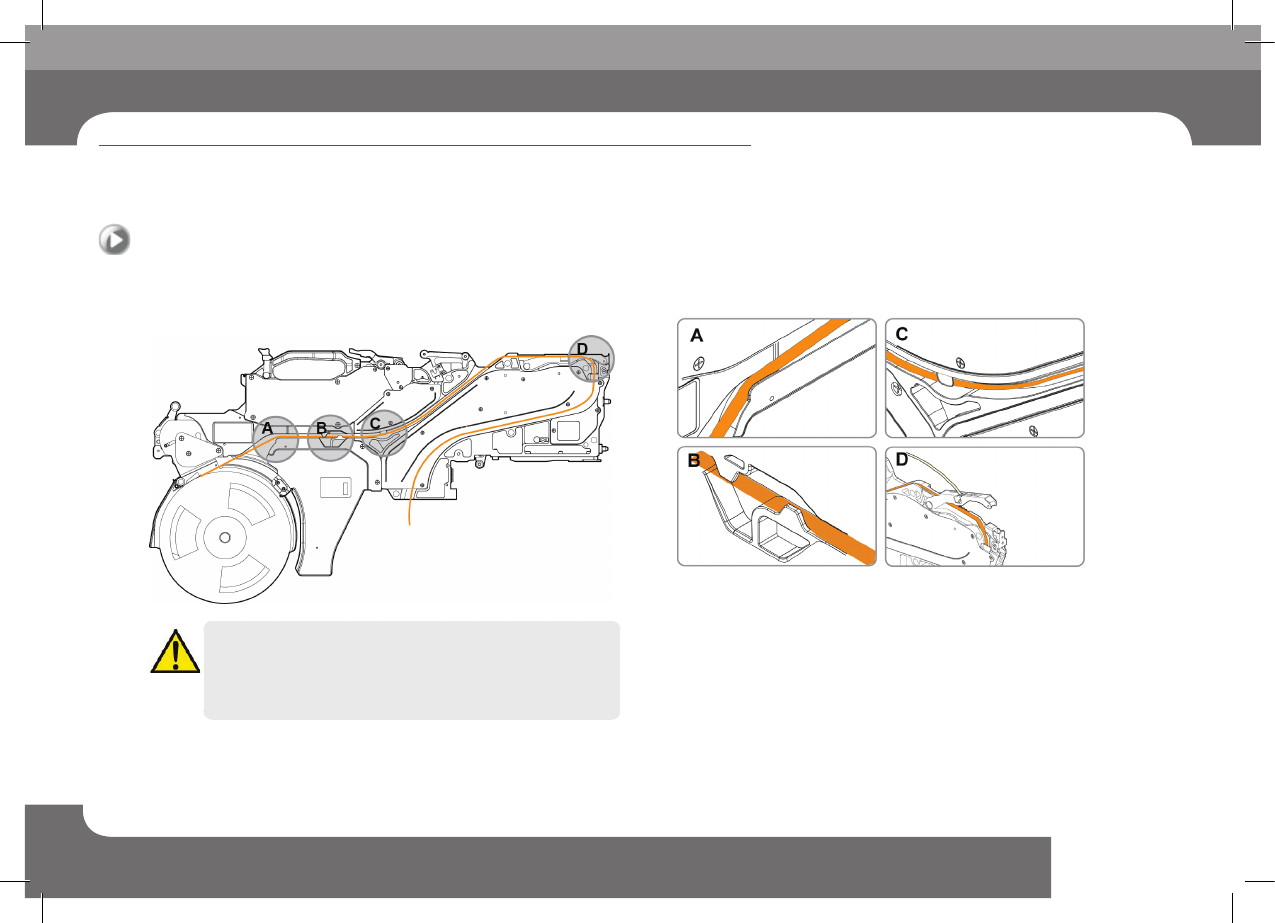

Pass the tape through groove A, B, C as shown in the figure below.
Caution
If the length from the pickup point of the carrier tape to the front
end of the tape is short, problems including tape jamming may
occur. Therefore, use tape long enough to pass the curved section
as shown in Figure D.
Check others and replace exhausted parts
Chapter 6
Advanced Chip Shooter
DECAN S2 Operation Handbook
6-5
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Checking Feeder > Checking locker
Checking Feeder

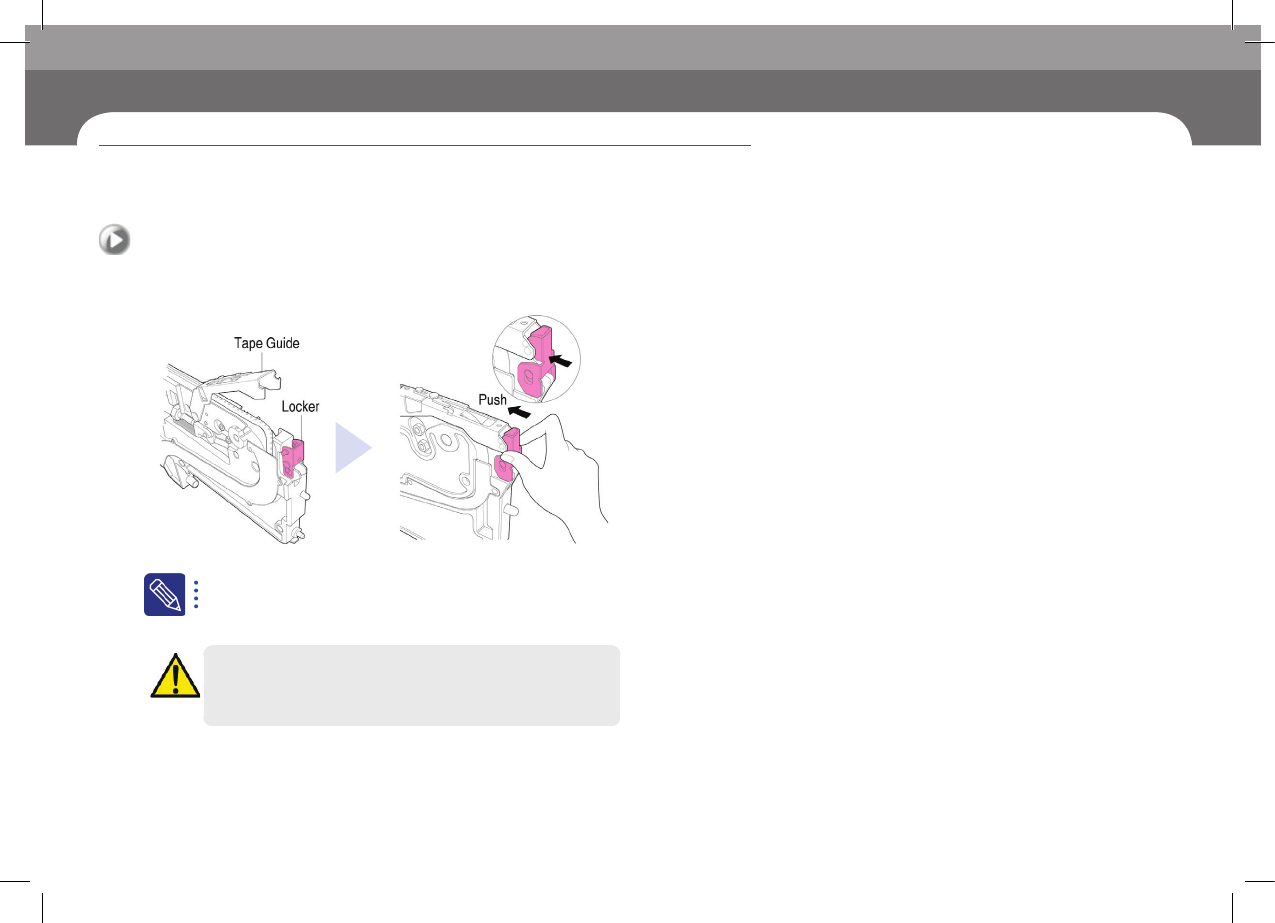

5. Checking locker
Check Points
ㆍ After mounting the part reel on the feeder, make sure the locker
is properly locked.
Caution
If the tape guide and the locker are not locked properly, it may
collide with the head during operation.
Check others and replace exhausted parts
Chapter 6
Advanced Chip Shooter
DECAN S2 Operation Handbook
6-6
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Checking Feeder > Tape Guide Vinyl Setting (Electrically Driven)
Checking Feeder
Check others and replace exhausted parts
6. Tape Guide Vinyl Setting (Electrically Driven)

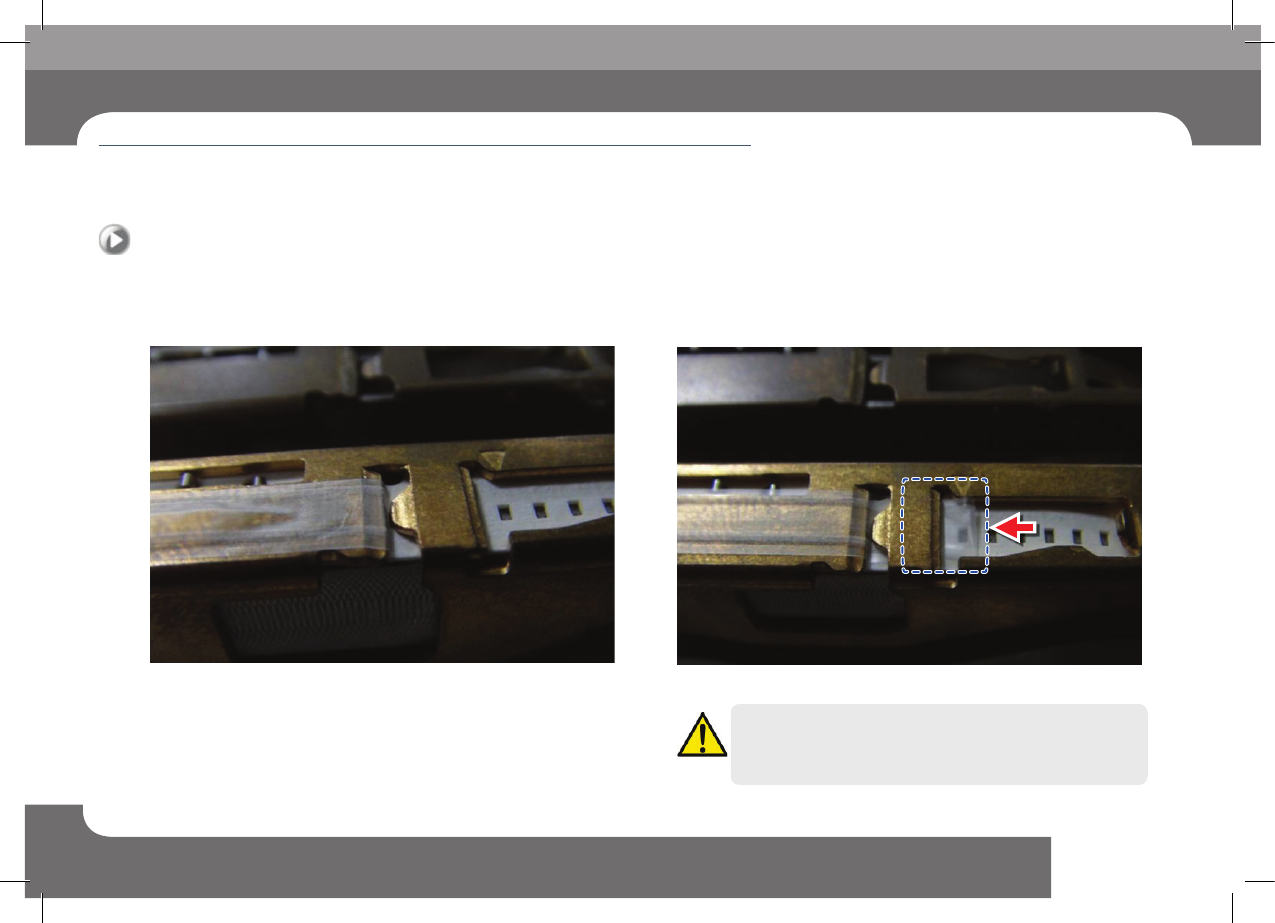

1. Install tape at the upper cover of the feeder
ㆍ Vinyl tape is installed normally
ㆍ Vinyl tape is curled
Caution
Exercise care so that the vinyl tape is not curled when setting the
tape at the front/rear slit
