Check others and replace exhausted parts
Chapter 6
Advanced Chip Shooter
DECAN S2 Operation Handbook
6-13
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Arranging Backup Pins > Checking the flatness of the PCB
Arranging Backup Pins

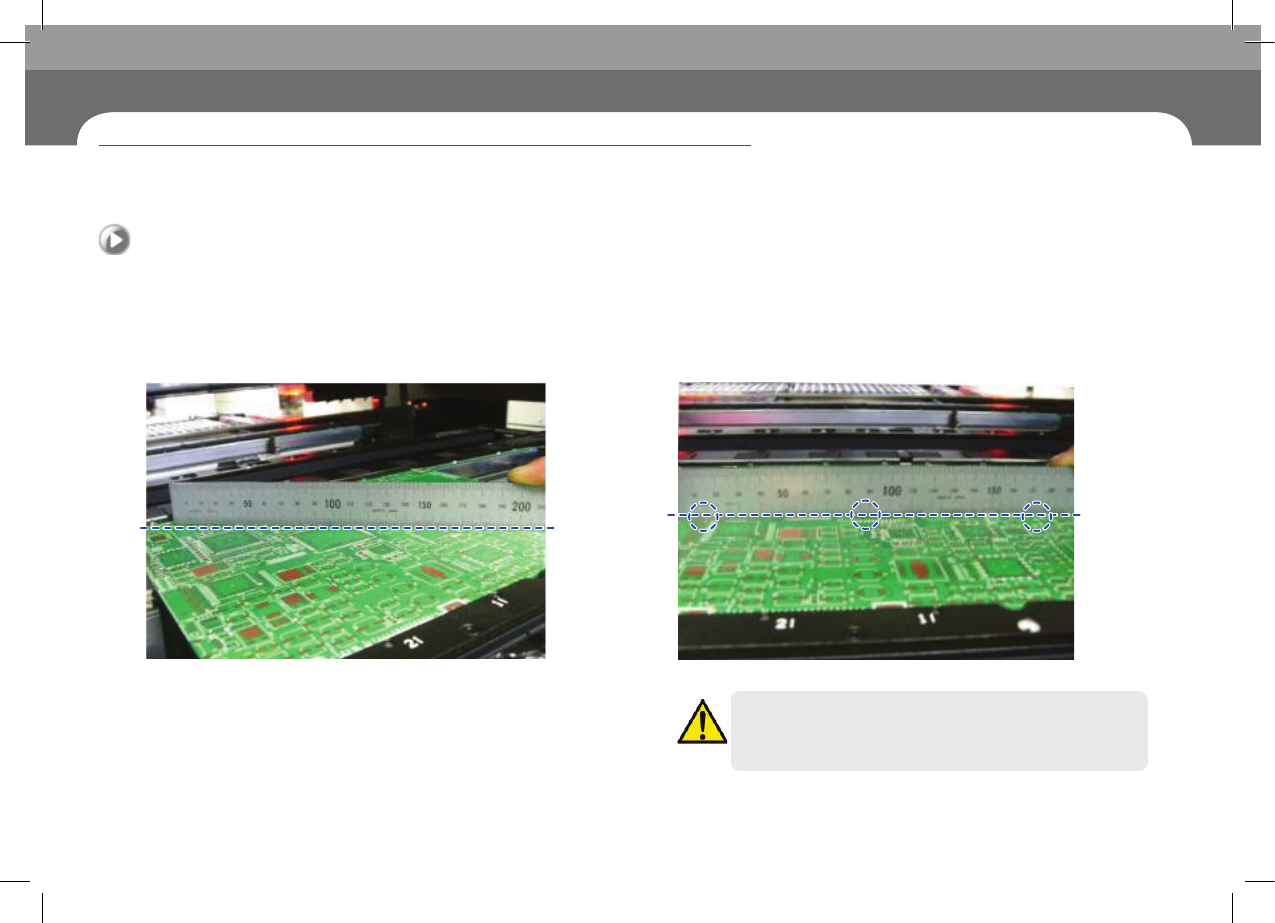

3. Checking the flatness of the PCB
Place and secure the PCB in the conveyer. Then, check if
the PCB is flat using a ruler.
Step 1.
Checking the flatness of the PCB in a diagonal direction
Use a ruler to check if the PCB is flat diagonally.
Step 2.
Checking the flatness of the PCB in a horizontal direction
Use a ruler to check if the PCB is flat in three horizontal positions.
Caution
If the PCB is not flat, the parts may not be properly placed. If the
PCB is not flat, reset the height of the backup pins.
Check others and replace exhausted parts
Chapter 6
Advanced Chip Shooter
DECAN S2 Operation Handbook
6-14
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Replace exhausted parts > Change the part reel
Replace exhausted parts
Check others and replace exhausted parts

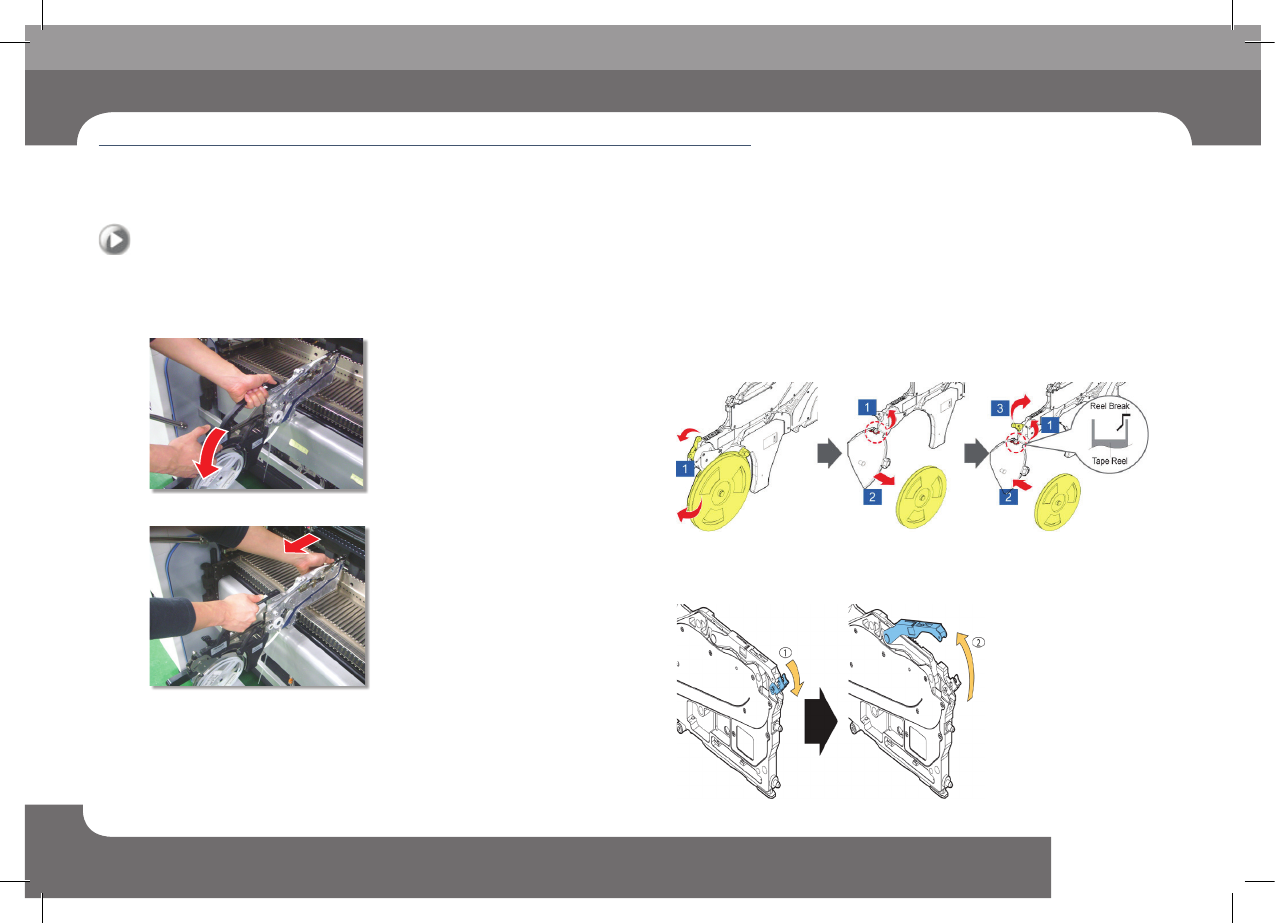

1. Change the part reel
Step 1.
Pull the grip back.
Step 2.
Remove the feeder.
Step 3.
After removing the part reel, install a new reel. (Secure the
reel on the reel brake paying careful attention to the reel
winding direction.)
Step 4.
Open the tape guide referring to the following figure. (Handle
it in the order of the numbers.)
Replace exhausted parts
Check others and replace exhausted parts
Chapter 6
Advanced Chip Shooter
DECAN S2 Operation Handbook
6-15
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Replace exhausted parts > Change the part reel
Replace exhausted parts

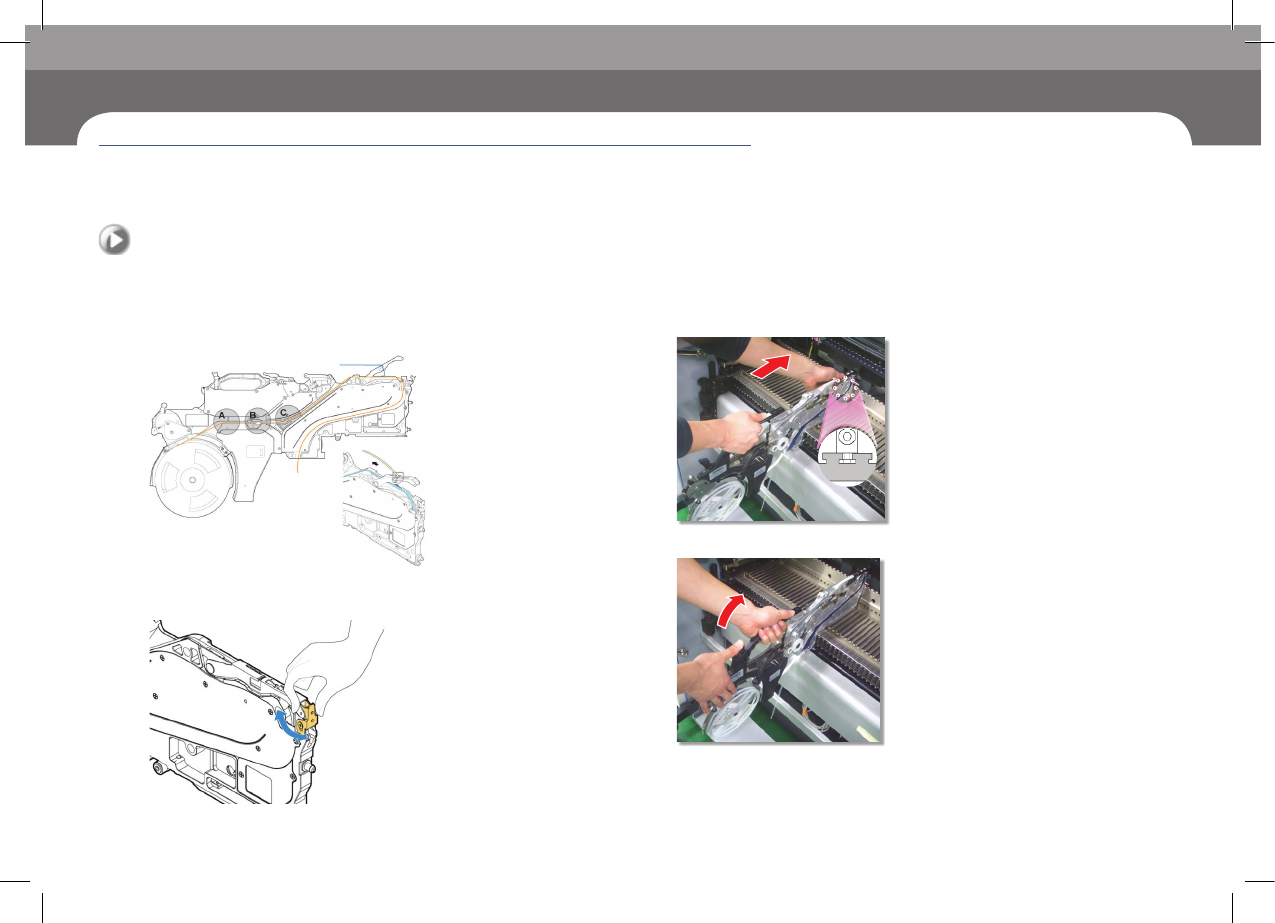

Step 5.
Install and discharge the tape referring to the figure. (Install
the tape so that it passes through 'A' and 'B'.)
Step 6.
Secure the locker after closing the tape guide. (Secure the
locker referring to the following figure.)
Step 7.
Secure the feeder in the orresponding slot.
Step 8.
Secure the grip.
