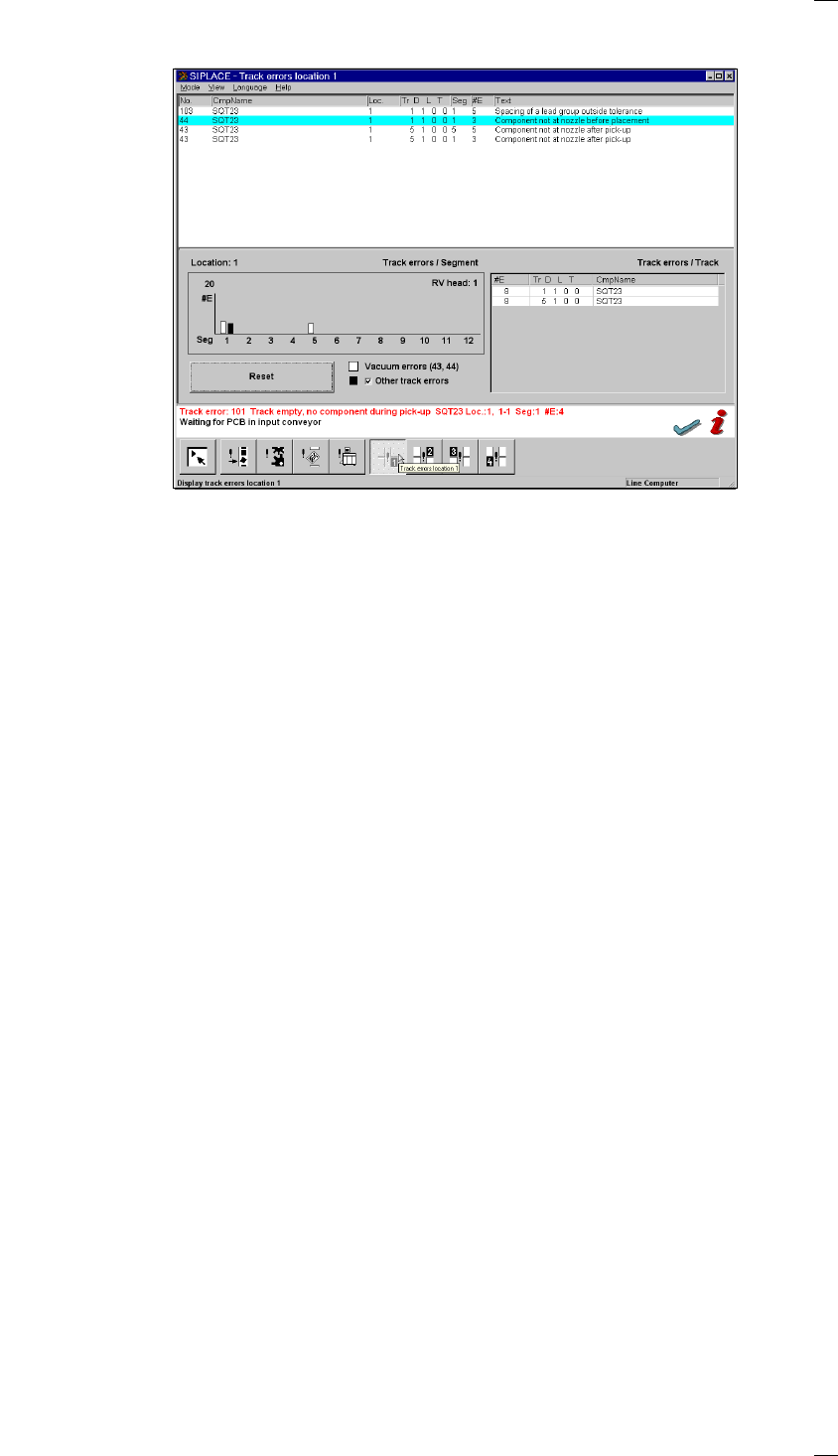

’Track errors location X’ menu
The “Track errors view” menu contains a general overview of all the track
errors. The “Track errors location X” menu also displays the errors sepa-
rately for locations 1 – 4. This list contains all track errors, apart from
‘Track empty’. The errors are also totaled and then displayed in the “Track
errors / Segment’ bar chart, sorted by segment number.
Vacuum errors 43 and 44 take the form of white bars. All other errors are
shown as black bars. The black error bars can be hidden, as required.
The track errors are not deleted when tracks or locations are filled,
although they can be deleted using the “Reset” button. The counter is
reset when a new set-up is loaded.
The tracks are displayed, sorted in ascending frequency of errors, in the
table beside the “Track errors / Segment” bar chart. This provides the rele-
vant data in a format suitable for error analysis.
’Feeders’ menu
The Feeders menu has four submenus for querying or checking the status
of all feeder modules:
– Displaying empty tracks and setting them full
– Omit components. (This menu can only be accessed from the ’Line engi-
neer’ operator control level or higher).
– Displaying magazines and changing inventory levels
Displaying and vibrating linear feeders
Type S-25 HM machine with an MTC (matrix tray changer) installed also
have a Matrix tray changer location 1 and/or Matrix tray changer location 3
submenu.
32
’Display and refill empty tracks’ menu
The empty tracks of feeder modules are displayed in this menu. After fill-
ing, you can set the tracks to full. Depending on the option which has been
activated, the following submenus will be called:
’Display empty tracks without component verification’
When you click on the button for location 1, 2, 3 or 4, the entire location
which you selected will be set to full.
When you select a particular feeder module in the list section and then
click on the Selected track button, the individual track will be set to full.
’Display empty tracks with component verification’
If the Component verification with barcode option has been configured
and activated, the following menu will appear:
Within this menu, locations 1 to 4 or individual tracks which have been
given a barcode cannot be set to full. Apart from displaying the empty
tracks, this menu also allows to individually set to full those empty tracks
which have not been provided with a barcode. Tracks which do not have a
component barcode are indicated by a dash in the CO-BC column. The
Selected track button is activated here.
33
’Display trays and change component levels’ menu
In this menu you can display the component levels of flatpack magazines
and update the component levels of individual trays.
Update component levels
Click on this button and the current status of all flatpack magazines will be
displayed.
NOTE
During the placement process itself the component levels are not updated.
New component level ...Mark the desired track in the list by moving the cyan bar over it. Click on
the New component level ... button.
Enter the current number of components into the New level field of the dia-
log box. The maximum permissible value for the number of components is
displayed in the Max. level field.
Click on the OK button to confirm your entry.
Magazine full Confirms that the selected magazine has been filled.
