YGP_(KGY)_mpl_e - 第13页
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level 1 KGY -M2256-00X DUCT COVER,SZ FRAME 1 / 39 2 KGY -M2257-01X COVER,SZ HEAD I/O 1 / 40 3 KV7-M2256-00X GRIP 1 / …
6
16
12
8
13
11
18
3
4
15
1
5
14
7
16
2
17
10
9
KGY-081209
3
2

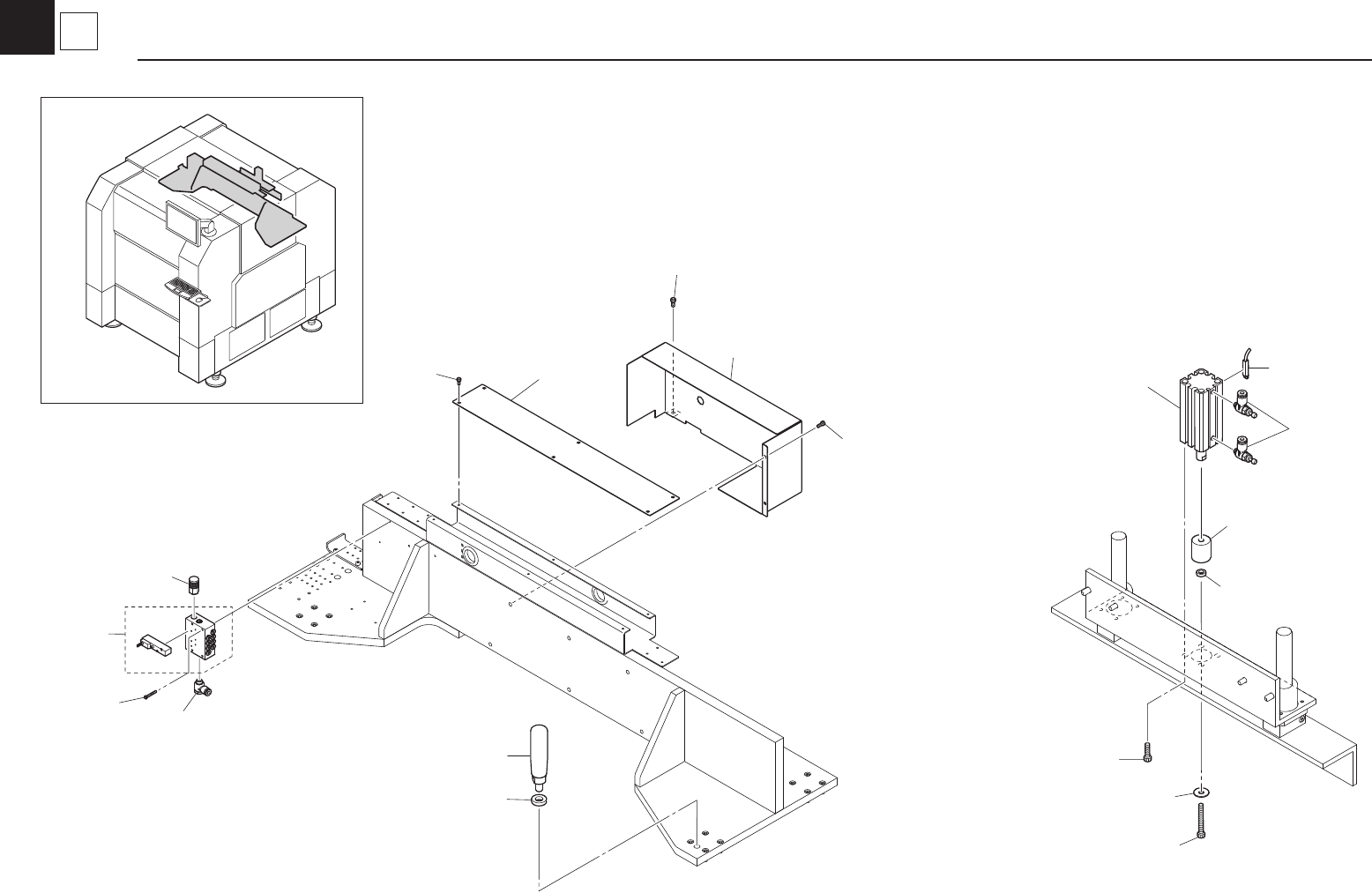

SZ-Frame Assy & Stencil Stopper Assy
Moving-axis
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1 KGY-M2256-00X DUCT COVER,SZ FRAME 1 /
39
2 KGY-M2257-01X
COVER,SZ HEAD I/O 1
/
40
3 KV7-M2256-00X GRIP 1 /
41
4 KV7-M2257-00X SPACER,GRIP 1 /
42
5 KW3-M2256-00X VALVE 1 B
43
6 $KM-11 MUFFLER 1 /
44
7 $SL6-01 JOINT 1 /
45
8 KGY-M2273-00X CYL.,STENCIL STOPPER 1 B
46
9 KGY-M2276-00X WASHER 1,STENCIL STO 1
47
10 90990-28J016 WASHER, PLAIN 1 /
48
11 90990-28J017 WASHER, PLAIN 1 /
49
12 KGY-M653T-00X SENSOR,MASK STOPPER 1 B
×
50
13 $SC4-M5A SPEED CONTROLLER 2 /
51
14 91317-03030 BOLT HEX.SOCKET HEAD 2 M3X30 52
15 91317-04006 BOLT HEX.SOCKET HEAD 6 M4X6 53
16 91317-04008 BOLT HEX.SOCKET HEAD 3 M4X8 54
17 91317-05035 BOLT HEX.SOCKET HEAD 4 M5X14 55
18 91317-05014 BOLT HEX.SOCKET HEAD 1 M5X35
56
19
57
20 58
21
59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
KGY-081209
3
2
SZ-Frame Assy & Stencil Stopper Assy
Moving-axis
22
3
1
22
10
21
9
20
5
7
6
25
13
12
18
19
11
17
8
2
4
23
23
25
15
14
18
24
16
KGY-081209
3
3

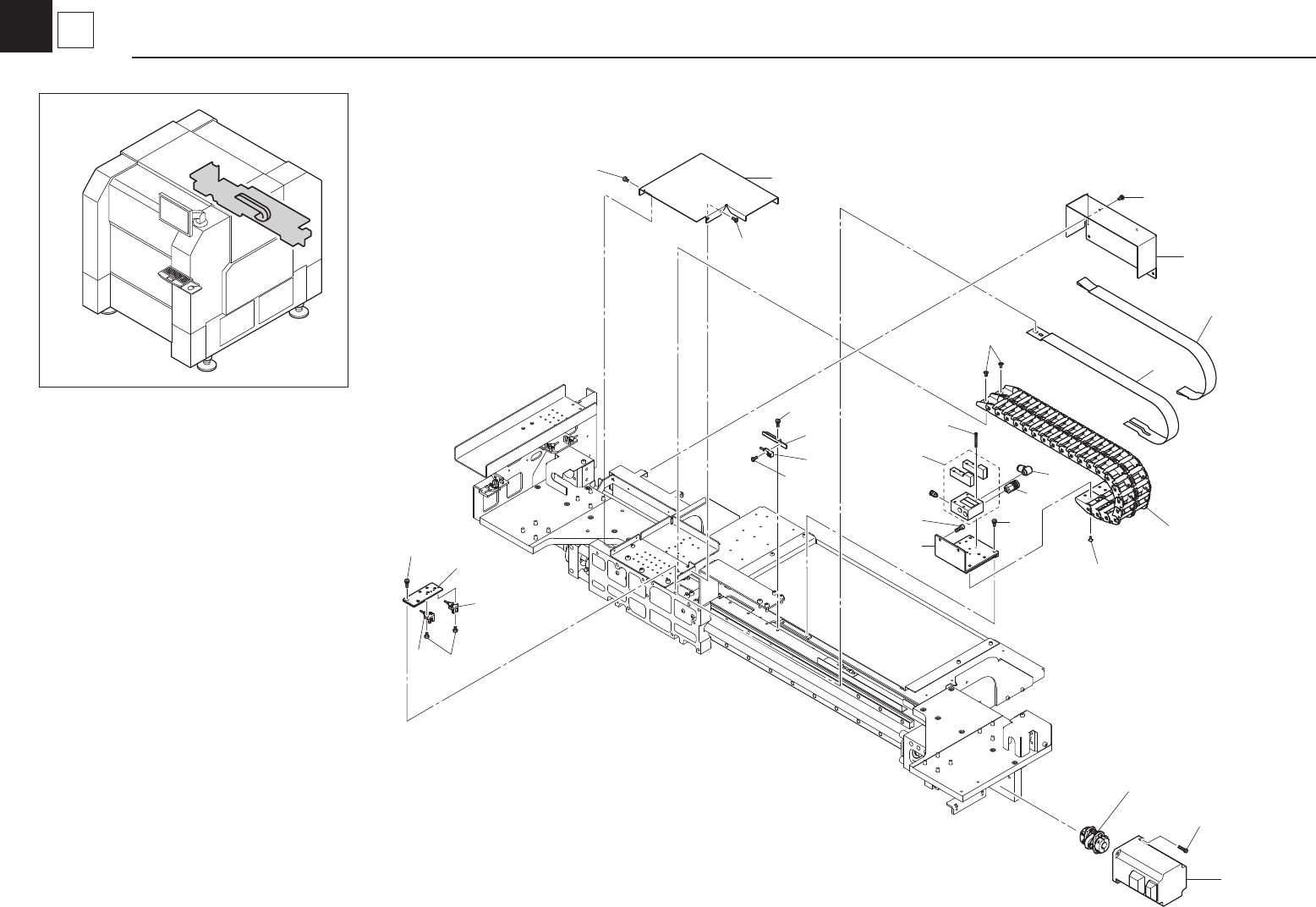

CX-axis Assy
Moving-axis
