YGP_(KGY)_mpl_e - 第67页
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level 1 KGN-M5840-04X SER VO BOARD ASSY 2 B r 38 2 KGS-M4209-A0X SP ARE SYSTEM UNIT ASSY 1 Spare B r 39 3 KGK-M5810-1 1X D…
13
5
2
6
4
3
7
1
8
9
10
11
12
12
12
12
12
KGY-081209
7
1

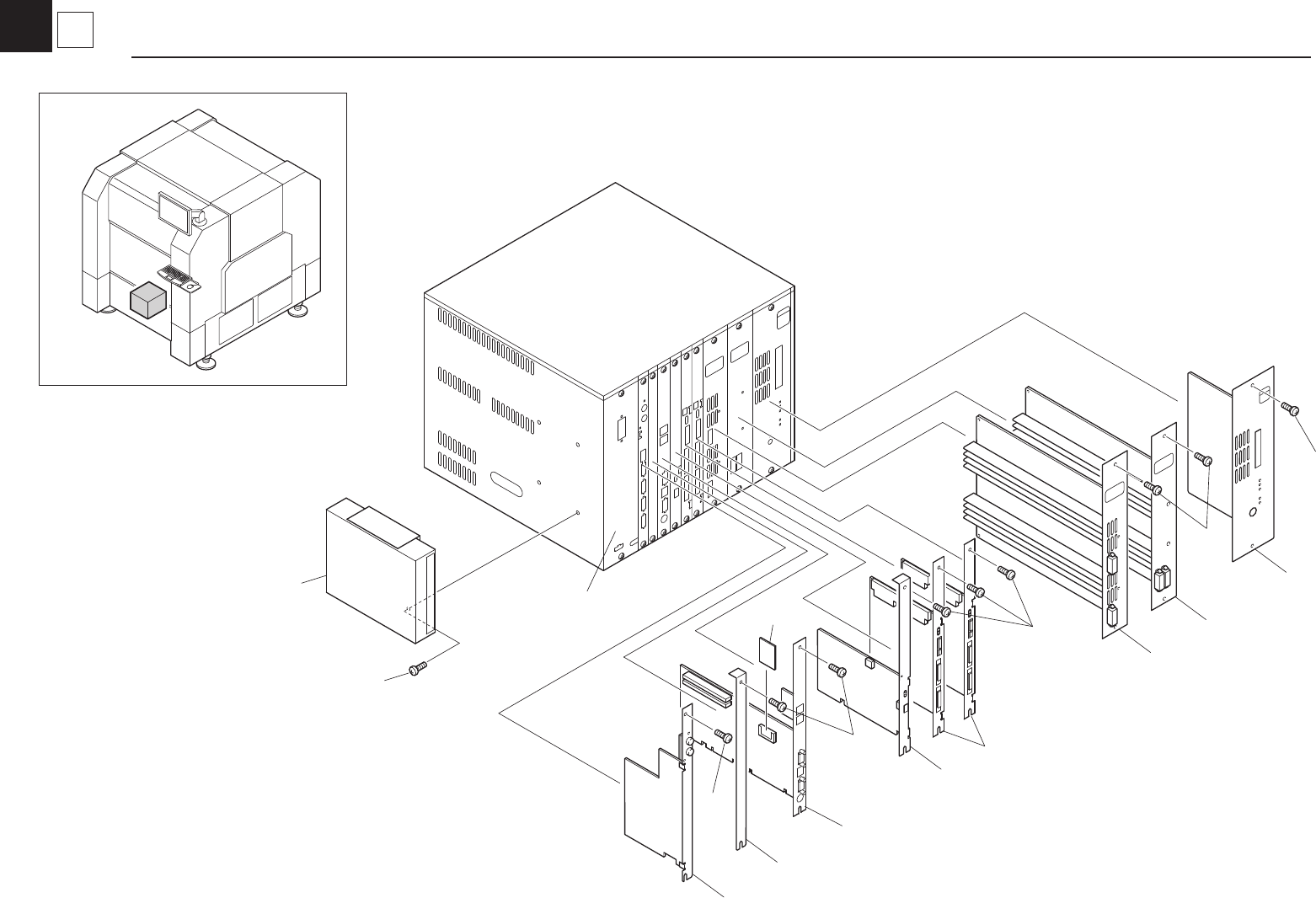

Control Box
Control Box
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1 KGN-M5840-04X SERVO BOARD ASSY 2 B
r
38
2
KGS-M4209-A0X SPARE SYSTEM UNIT ASSY
1
Spare B
r
39
3 KGK-M5810-11X DRIVER BOARD ASSY 1 B
r
40
4 KGN-M5810-50X DRIVER BOARD ASSY 1 B
r
41
5
KGJ-M441H-03X VISION BOARD ASSY 1 With Inspection B
r
42
KGJ-M441H-12X VISION BOARD ASSY 1 B
r
43
6 KGR-M4530-11X INTERFACE BOARD ASSY 1 B
r
44
7 KGN-M5880-00X D.POWER BOARD ASSY 1 B
r
45
8 KGK-M4136-10X PANEL NO VISION 1 B
r
46
9 KW3-M4256-00X CD-ROM DRIVE 1 B
47
10 KHL-M4255-00X FLASH DISK 1 B × 48
11 KGY-M4118-01X PANEL LEFT 2 1 /
r
49
12 90990-11J003 SCREW,PAN HEAD W/W 21 50
13 97602-03306
SCREW,PAN HEAD W/W 26 51
14 52
15 53
16 54
17 55
18 56
19 57
20 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
KGY-081209
7
1
Control Box
Control Box
25, 26
28
40
35
27
29
38
30
31
34
33
32
42
41
36
37
22
4
13 5
19
20
21
1011
9
8
18
8
9
1
24
23
6 6
8
9
17
12
7
7
2
3
16
15
14
39
43-48
KGY-090901
8
1

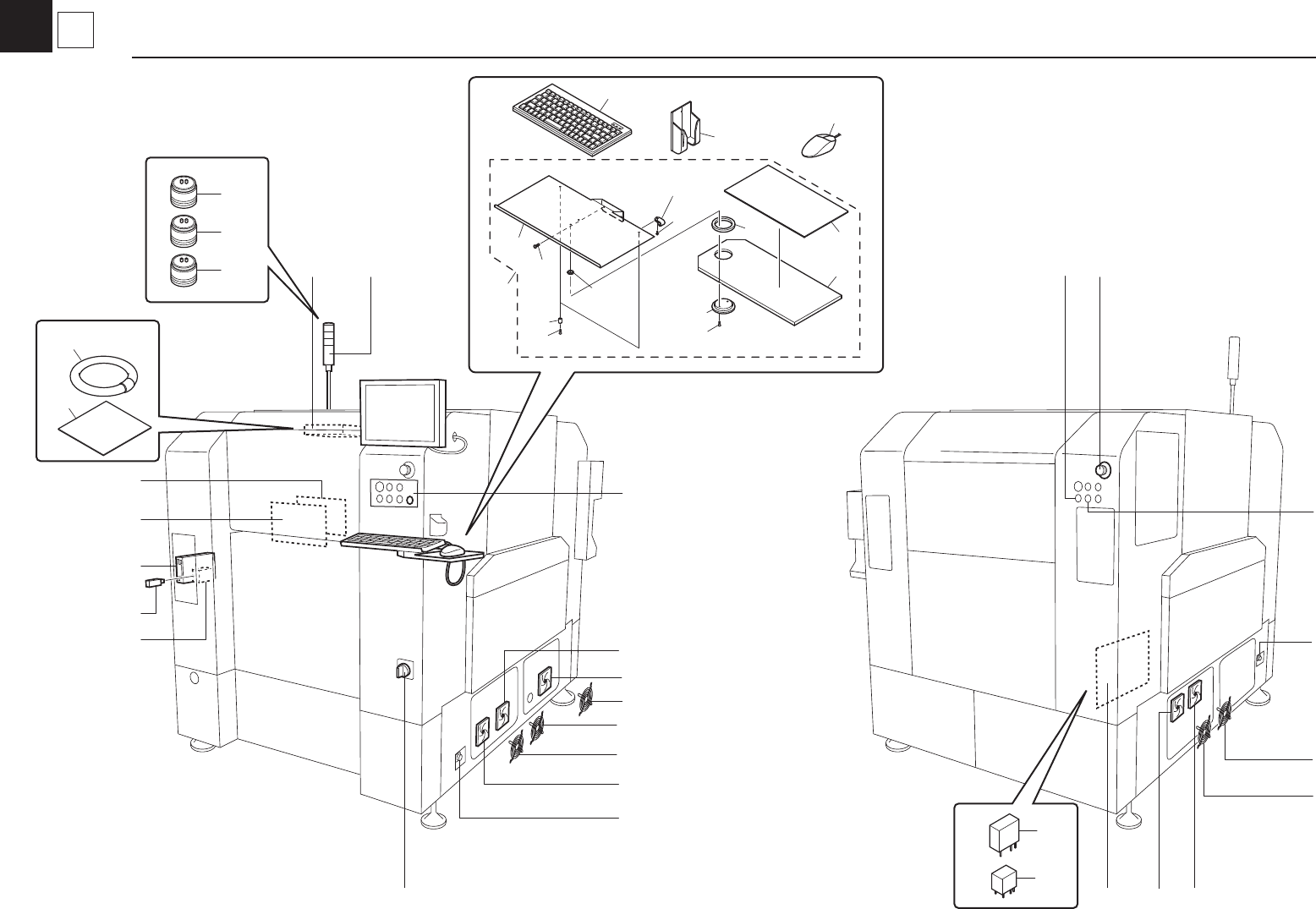

Exterior, etc.
Exterior, etc.
