Electronic Assembly Equipment
Momentum II
Fresh look and
innovative new features
for further enhancement
in ease of use, yield,
quality, productivity, and
versatility.

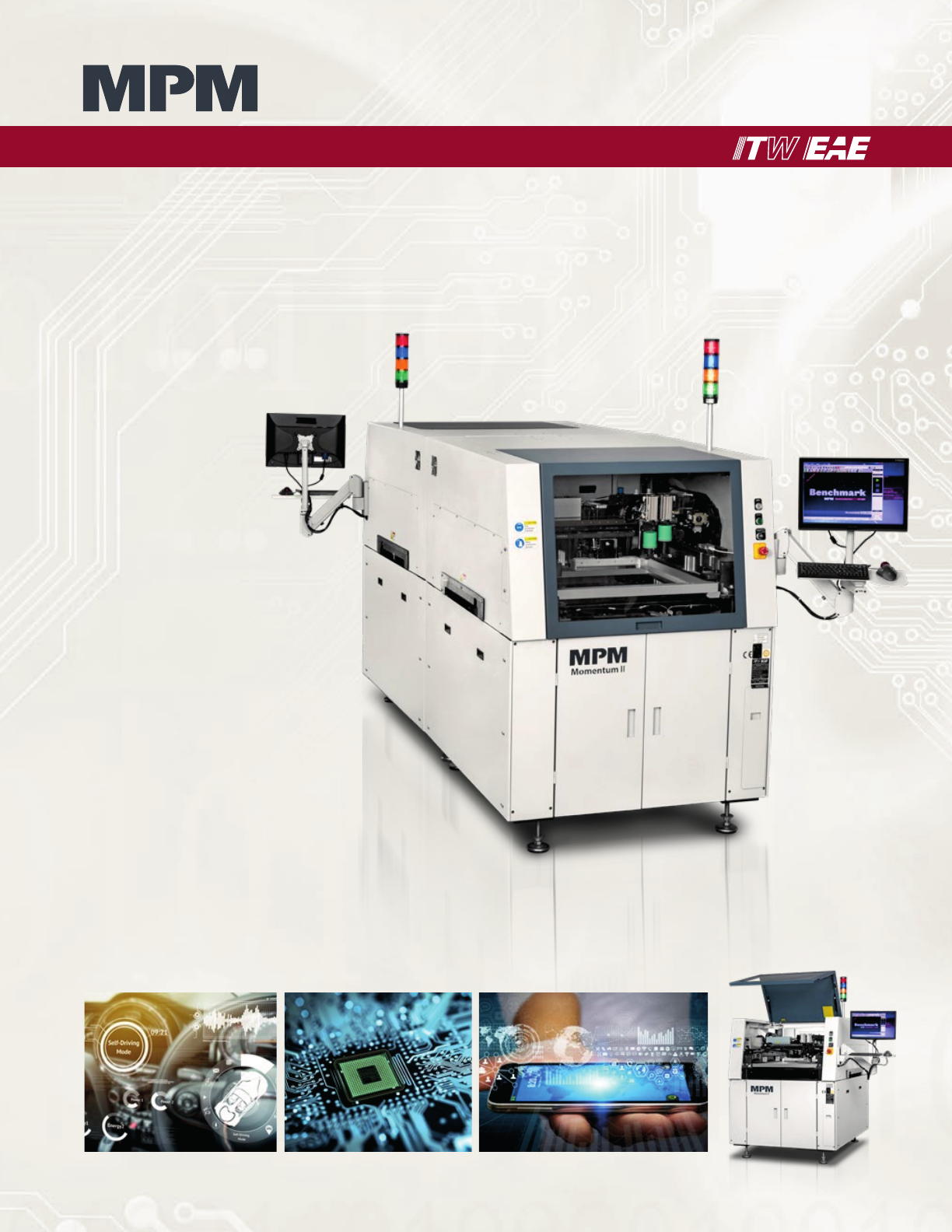

Momentum® II BTB
Back-to-Back Printing System
Higher Productivity from an Optimized Footprint
Momentum® II
BTB gives Momentum® II
users greater flexibility
in line configuration.
Now you can leverage
Momentum’s superior print
performance capabilities
into dual lane output with
an overall smaller footprint.
Momentum’s
Patented Technology
• EnclosedFlow™ Print System
• Paste Management System
• EdgeLoc™ Board Clamping
• RapidClean™
• StencilVision™
• Closed-loop
SPI Print Optimizer
• Benchmark™ 5.0
Momentum® II BTB
Get More Throughput with Less Space and Less Investment
Momentum® II BTB features a smaller footprint than the standard
Momentum platform. Back-to-Back configuration allows dual lane
processing for higher throughput without increasing line length or capital
investment. Dual lane provides the flexibility to print multiple products
in a single SMT line, such as top and bottom side, same side, or mother/
daughter boards making the BTB the most flexibile model in the proven
Momentum platform.
With the MPM® Momentum® II BTB, you get all the accuracy and
performance that the proven Momentum platform is known for. Most
of the features and options available for Momentum series printers are
available with the Momentum II BTB. MPM Momentum II BTB printers
are offered in two different throughput configurations for optimum
flexibility in line balancing.
Precision and Performance in a
Compact and Flexible Configuration
Space-saving Configuration without Compromise
The MPM Momentum® II BTB is a space-saving 200 mm shorter than the standard Momentum.
Configured for Back-to-Back (BTB) processing, it enables dual lane processing with two machines,
conserving floor space and creating a shorter manufacturing line length, but without sacrificing
volume or yields. Momentum® II BTB is also designed with all-front access to the entire electrical
system, solvent reservoirs, etc. so that no extra space is required for accessibility between the
machines in BTB setup. MPM Momentum® II BTB printers feature the same ±11 micron alignment
repeatability, with wet print accuracy of ±17 microns @ 6 sigma, Cpk ≥2.0, designed in and
independently verified. MPM Momentum printers are fast, precise, and highly reliable, with
performance unmatched by any other printer in their class.
Optimizing Productivity through Flexibility
Momentum® II BTB optimizes operator utilization rates for dual lane lines, and utilization of
factory floor space. What’s more, individual units can be easily redeployed as needs change.
Available with optional shuttle conveyors.
Momentum® II BTB New Features
¡ Newly designed cover set with larger
window and wider access inside the printer.
¡ Quick release squeegee for faster changeover.
¡ Adjustable stencil shelf
for exibility handling board varieties.
¡ EdgeLoc II and EdgeLoc+
for precise board clamping.
¡ New jar paste dispenser
for increased productivity.
¡ Solder paste roll height monitoring and
paste temperature monitoring
for yield improvement and traceability.
¡ Upgraded Benchmark GUI with
customizable production page and
Quickstart program.
¡ Windows 10 operating system.
