4.1.2.3 Refilling an Empty Track With "Refill track"

As soon as a feeder in an empty track has been refilled with components, this fact must be con-

firmed so that the placement head can access this track again. This is done with the help of the

"Refill track" function. 4

Procedure

Å The track barcode of the corresponding track is read in.

Å The component barcode of the corresponding component reel is read in.

The "Refill track" button is active when the barcodes match (see the following figure).

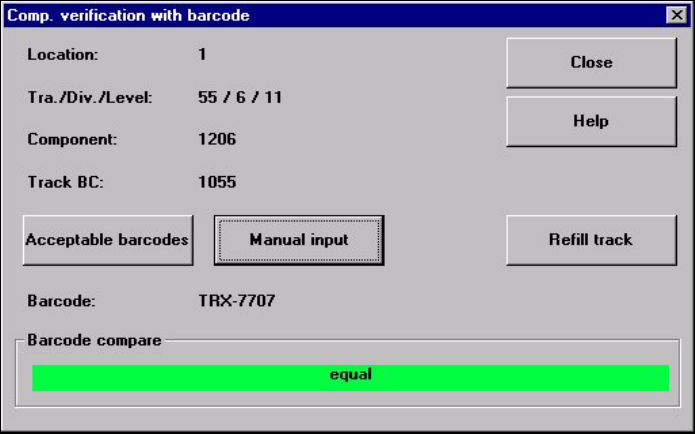

Fig. 4.1 - 3 "Component verification with barcode" window, matching barcodes

Å If the feeder in the current track is full, then click on the Refill track button to confirm this or

read in the return barcode on the barcode bar.

Å Close the window with Close.

4 Placement Functions User Manual SIPLACE S-23 HM

4.2 Error Display Software Version SR.406.xx 02/00 US Edition

136

4.2 Error Display

The errors are listed in tabular form according to their type, and each type has its own view con-

taining its list of errors.

Å Click on the icon in the toolbar in the Main view.

The user interface switches to the error display (see Fig. 4.2 - 1, Track errors, for example). All

errors of the current error type that have occurred are displayed in the display area.

Å If you want to switch the display area to a different type of error, then click on the icon for the

desired error type in the toolbar.

The display area switches to the selected error type.

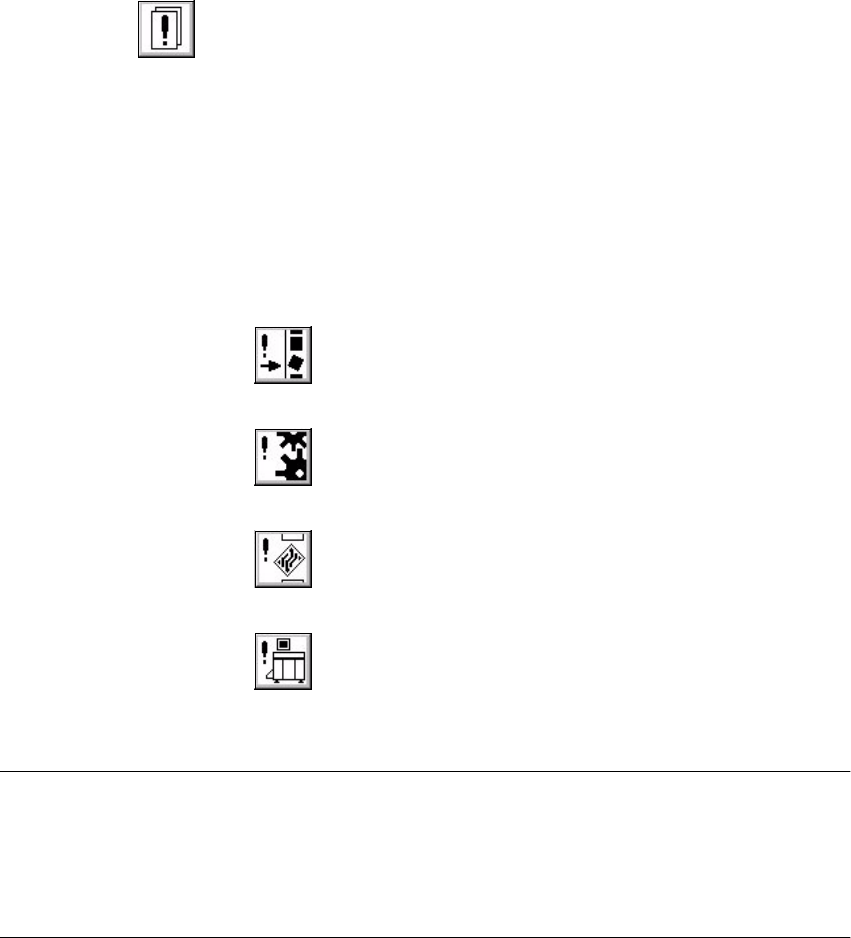

Error type icon

– Track error

– Machine error

– Transport error

– General error

NOTE

The error that occurred last is always displayed in the top position in the table.

The error counter is incremented whenever the same error arises ("#E" column).

Information and an error diagnostics can be called up for every error displayed

(see Section 4.2.1 for this procedure). 4

User Manual SIPLACE S-23 HM 4 Placement Functions

Software Version SR.406.xx 02/00 US Edition 4.2 Error Display

137

4.2.1 Functions

The following functions described below can be executed by selecting the corresponding buttons

in the views for the corresponding error type. 4

Delete all 4

All entries in the table for the error type currently displayed are deleted with this function. 4

Å Click on the Delete all button

The error table is emptied.

Error information 4

This starts a help system that displays information on the possible causes of error for the selected

error as well as corrective measures. 4

Å Select the entry in the table for the error for which you require additional information. The line

selected is highlighted in light blue in the table. The "Error information" button is now active

(see Fig. 4.2 - 1, for example).

Å Click on the Error information button

The help system window is opened.

The further procedure is described in Chapter 8 "Error information".

Diagnostics 4

This starts the diagnostics system. You use this system to attempt to recognize the cause of the

current error and to correct this error together with the operator. 4

Å Select the entry in the table for the error for which you want to start the error diagnostics.

Å Click on the Diagnostics button.

The user interface switches to the Main view of the diagnostics system.

NOTE

The diagnostics system is not available in the current software version. 4
