6 Vision functions User M anual SIPLACE S -23 HM 6.6 Test Component Software Version SR.406.xx 02/00 US Edition 250 The Load GF dat a button will, for ex ample , only be ac tive if you have pr evious ly clic ked on a pac…
User Manual SIPLACE S-23 HM 6 Vision functions
Software Version SR.406.xx 02/00 US Edition 6.6 Test Component
249
6.6.3 Select Package Form Menu
If you select the Test component option in the Main view menu, the following actions will occur: 6
– The functions for the vision system are activated in the station computer
– The Select package form menu will drop down.
– The station computer will determine the package form numbers list with commentaries from
the set-up.

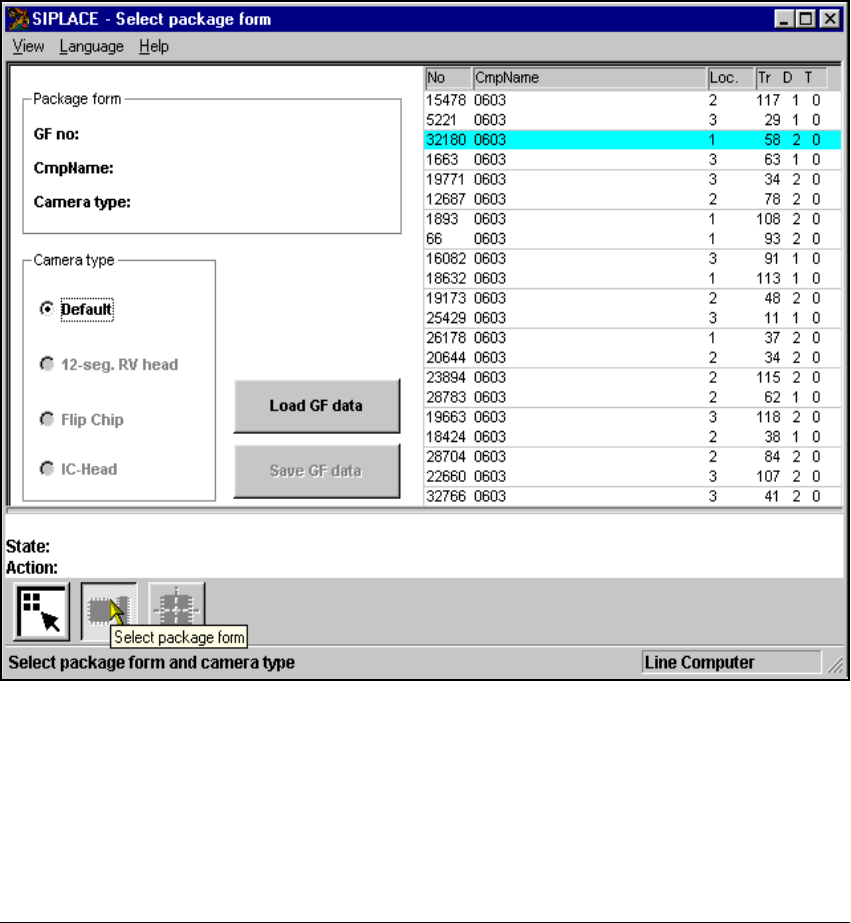

Fig. 6.6 - 9 Select package form menu
The menu allows you to choose between the following options, as the diagram shows: 6
– Selection of the camera types (80F machines only).
– Load GF data
– Save GF data
NOTE 6
Buttons are active when the text on the button is black (rather than gray). This means that you can
launch the associated function by clicking on the button with the mouse.
6 Vision functions User Manual SIPLACE S-23 HM
6.6 Test Component Software Version SR.406.xx 02/00 US Edition
250
The Load GF data button will, for example, only be active if you have previously clicked on a pack-
age form in the lists field.
The Save GF data button will only be active if you have changed the package form parameters. 6
You can switch from the ’Test component ’ menu to the Main menu at any time in order to start
actions such as "Fill track" etc. The settings in the ’Test component’ menu will be retained, which
means that the same conditions will be set up when you return to the ’Test component’ menu. 6
However, if you have changed the fiducial data or taught a new fiducial, and then switch from the
Main menu to the ’Test component’, ’Single functions’, ’SITEST’ or ’Continue placement’ menu,
the ’Save fiducial data’ selection box will appear when you leave the ’Teach fiducial’ option. You
can then either save the modified or new data or delete it. 6
By selecting the Save GF data option you cause the station computer to send the package form
data to the line computer, where it is saved. The modified package form data is updated in the
remaining stations as well. The next time a cluster is loaded the modified GF data is sent to all
stations in the line. 6
6

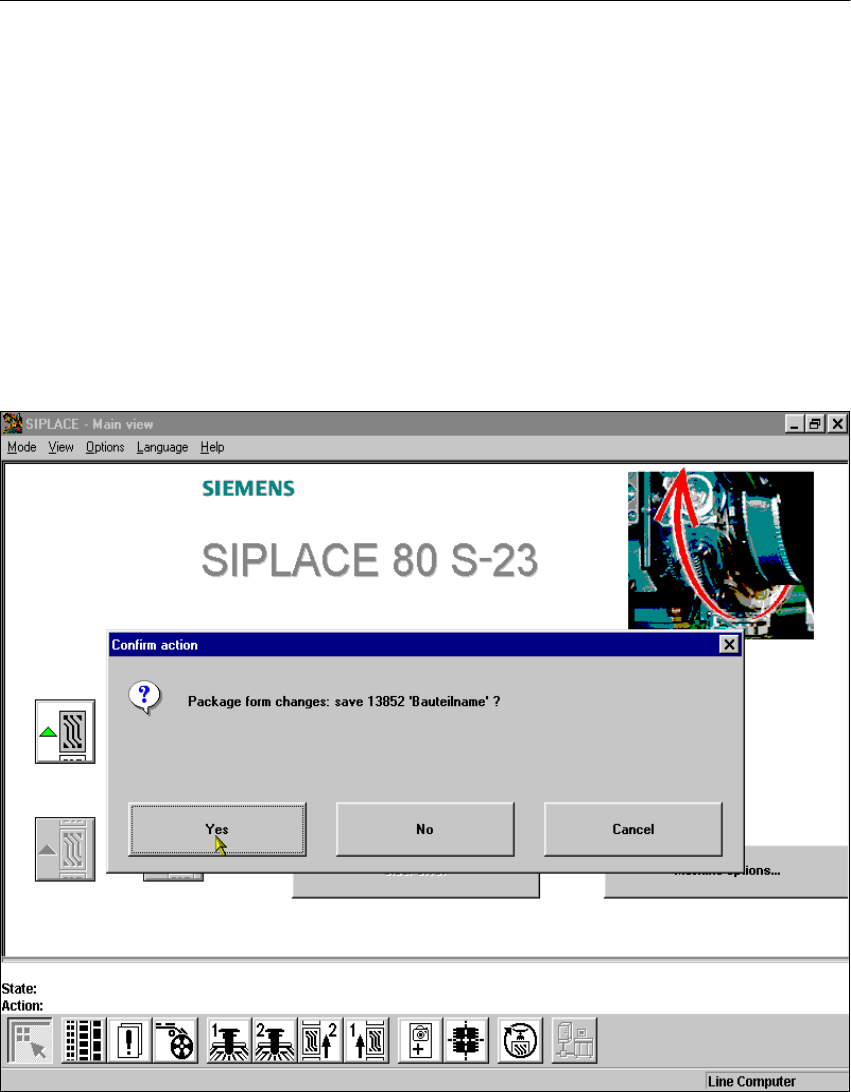

Fig. 6.6 - 10 Save GF data option box
User Manual SIPLACE S-23 HM 6 Vision functions
Software Version SR.406.xx 02/00 US Edition 6.6 Test Component
251
6.6.3.1 Camera Type Option
NOTE 6
The buttons for selecting the different camera types can only be used with the 80F
machines. 6
With the S-23 HM machine each gantry only has a single camera type used for optically centering
the components. For this reason the allocation of the Default button cannot be changed. 6
6

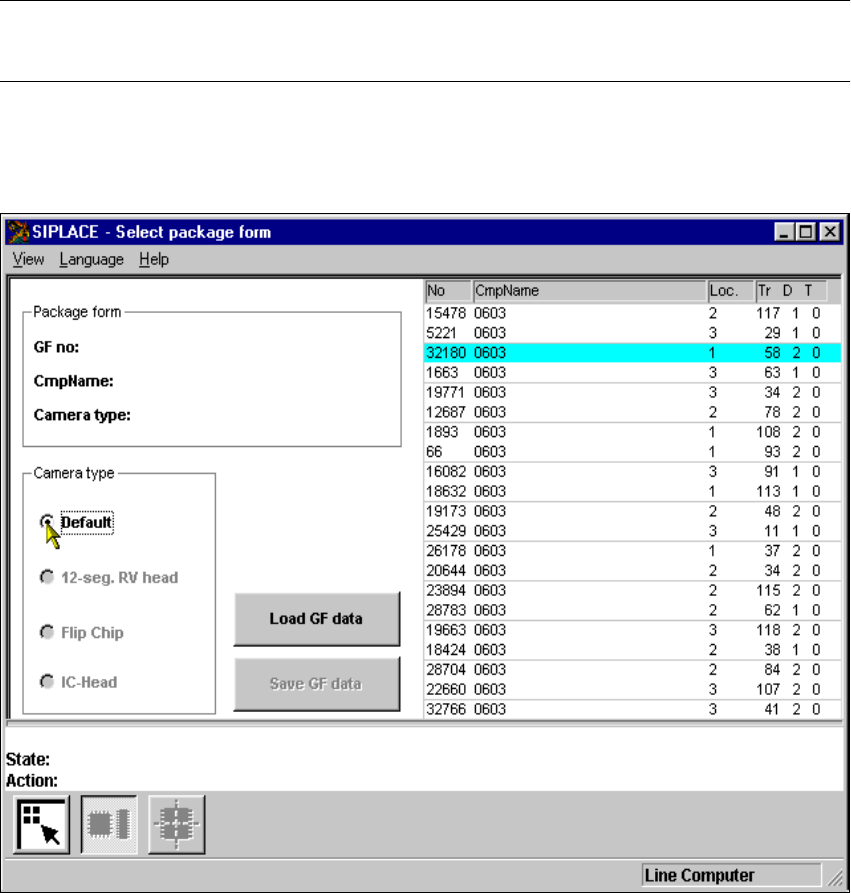

Fig. 6.6 - 11 Select package form menu, Camera type option
