User Manual SIPLAC E S-23 HM 6 Vision functions Software Version SR.406.xx 02/00 US Edition 6.6 Test Component 277 6.6.4.9 Package Di mension Option There is pot ential for the occ urrence of an effect c alled im age red…
6 Vision functions User Manual SIPLACE S-23 HM
6.6 Test Component Software Version SR.406.xx 02/00 US Edition
276
Å You can use the arrow keys to increase or decrease the brightness of the rows of LEDs in the
component camera system which illuminate the component. The brightness can be set within
a range of 256 steps with 255 being the maximum value.
Å Use the spacebar to toggle the step size for changing the brightness from 1 to 10 µm and back.
Å Use the tab key to move between the three illumination levels: steep and medium and flat cam-
era lighting.
Å Press the Return key to execute the individual measurement steps which are included in the
measurement conditions.
Å With Esc you can quit the option. You will then be returned to the Test component menu.
6
NOTE 6
Section 6.7.6 from page 309 contains instructions for selecting the illumination parameters. 6
User Manual SIPLACE S-23 HM 6 Vision functions
Software Version SR.406.xx 02/00 US Edition 6.6 Test Component
277
6.6.4.9 Package Dimension Option
There is potential for the occurrence of an effect called image reduction mainly with cylindrical
components, with PLCCs, BGAs and µBGAs. The reduction is caused by the round features of
the components that deflect incident light away from the camera sensor. Typically, the round
edges then become invisible to the camera. To remedy this problem, use the Package Dimension
option to change the optical package width and length to accommodate for the loss. 6
6

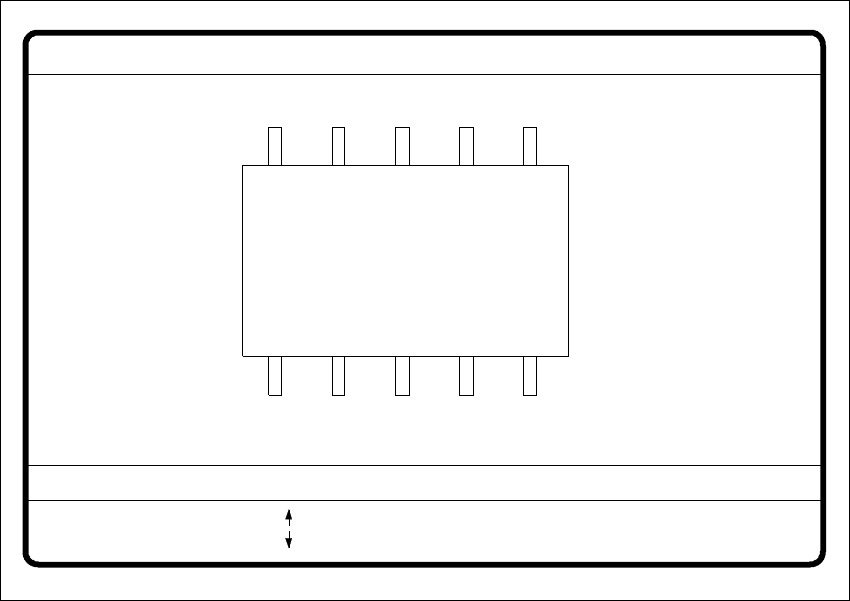

Fig. 6.6 - 27 Test component menu, Package dimension video image
Å With the arrow keys you can change the length and width of the component. The current geo-
metric data will be displayed (see description on page 274).
Å Use the spacebar to select different sides of the component.
Å With the Return key you can trigger the individual measurement steps which are specified in
the measurement conditions.
Å Press Esc to quit the option.
GF No. = 5
: larger
: smaller
RET: Test component
Blank: Pack. side
Pack. side = opt. l.[mm] = ... opt. w.[mm] = ...
Package dimension
6 Vision functions User Manual SIPLACE S-23 HM
6.6 Test Component Software Version SR.406.xx 02/00 US Edition
278
6.6.4.10 Pin Dimension Option
Use this option to change the optical pin width and length. In addition, the pin contrast can be
changed if imaging reduction results in the pins not being dependably recognized. 6
6

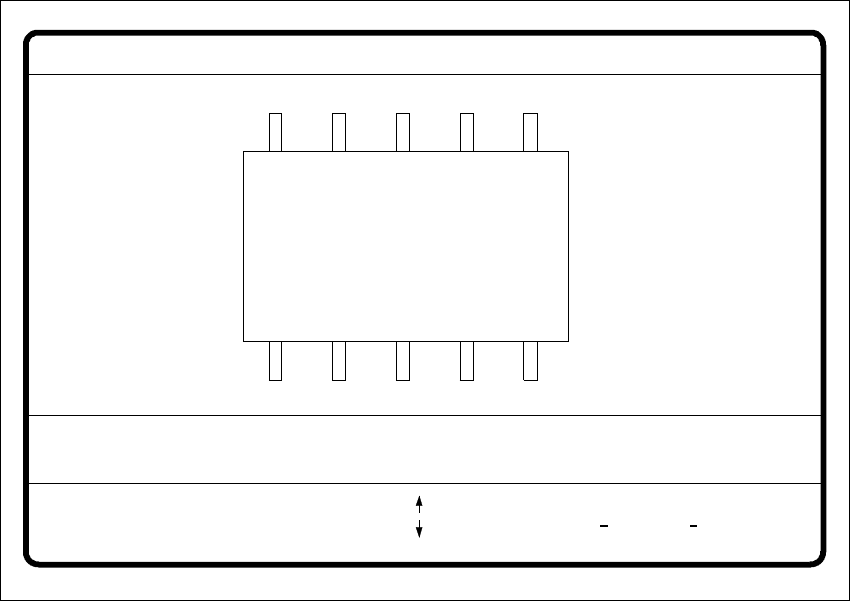

Fig. 6.6 - 28 Test component menu, Pin dimension option
Å Use the tabulator key to select the pin model.
Å With the spacebar select the side of the pin.
Å Use the + and - keys to raise or lower the pin contrast.
Å The arrow keys are used for changing the pin width and length. The component will appear as
a silhouette on the screen together with the updated geometric pin data.
Å With the Return key you can trigger the individual measurement steps which are specified in
the measurement conditions for the specified component.
6
Press Esc to cancel the option, even if not all measurement steps have been carried out. You will
then be returned to the Test component menu. 6
GF No. = 5Pin dimension
+ : contrast +
opt. l. [mm] = ... opt. w. [mm] = ...
Pin side =
Pin definition = 1..n
RET: Test component
Tab: Pin model
Blank: pin side
Pin contrast =
: larger
: smaller
: contrast
