1 Introduction, technical data User Manual SIPLACE S-23 HM
1.9 Dimensions and weight of the placement system Software Version SR.406.xx 02/00 US Edition
32
1.9 Dimensions and weight of the placement system
1.9.1 Dimensions of the placement system
1
Fig. 1.9 - 1 Dimensions of the placement system
1.9.2 Technical data - dimensions, weight
1
Length 1587 mm including conveyor belts
Width 2.455 mm including brackets
Height with warning lamp 1836 mm standard height
Ground clearance 120 mm standard height
Weight of basic module 1500 kg
Weight fully equipped approx. 2000 kg
Admissible load per unit area on foundation 1000 kg/m² min.
Load per unit area on mounting feet 4.42 kg/cm²
User Manual SIPLACE S-23 HM 1 Introduction, technical data
Software Version SR.406.xx 02/00 US Edition 1.9 Dimensions and weight of the placement system
33
1.9.3 The placement system’s center of gravity
1
Fig. 1.9 - 2 The placement system’s center of gravity
X coordinate -80 mm 1
Y coordinate 0 mm 1
Z coordinate 350 mm high 1
T PCB transport direction 1
1
These center of gravity coordinates relate to placement systems with a PCB transport height of
830 mm. 1
1 Introduction, technical data User Manual SIPLACE S-23 HM
1.10 Setting up the placement system Software Version SR.406.xx 02/00 US Edition
34
1.10 Setting up the placement system
1.10.1 Transport dimensions
1

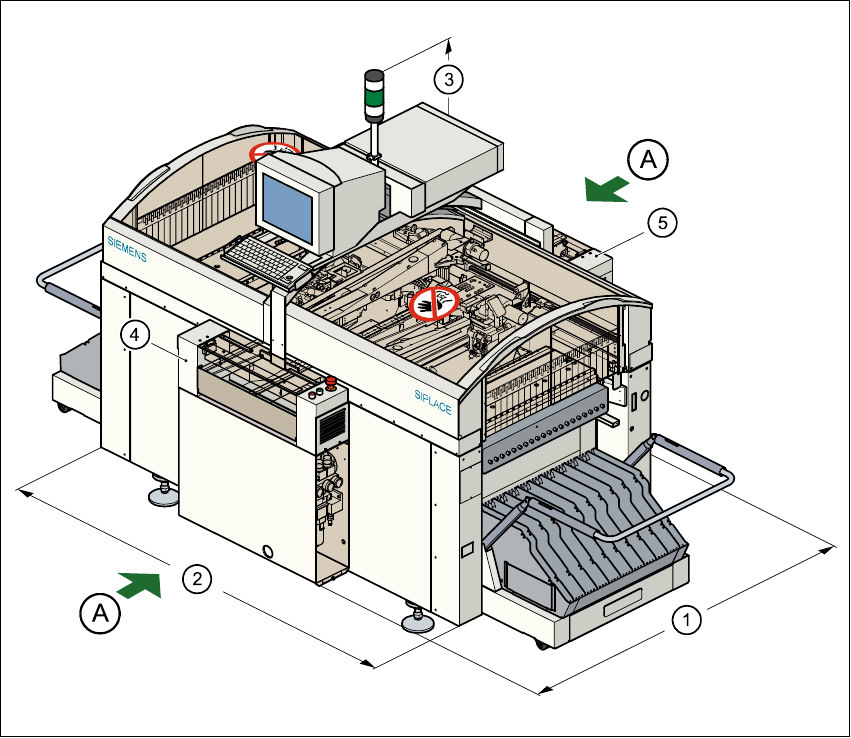

Fig. 1.10 - 1 Dimensions of the placement system during transportation and setting up
A Points for attaching the fork-lift truck (fork length 1600 mm) 1
(1) Length 1587 mm
(2) Width 1921 mm
(3) Height 1836 mm
(4) Input conveyor
(5) Output conveyor
1
The PCB conveyor height is 830 mm ± 15 mm. 1
