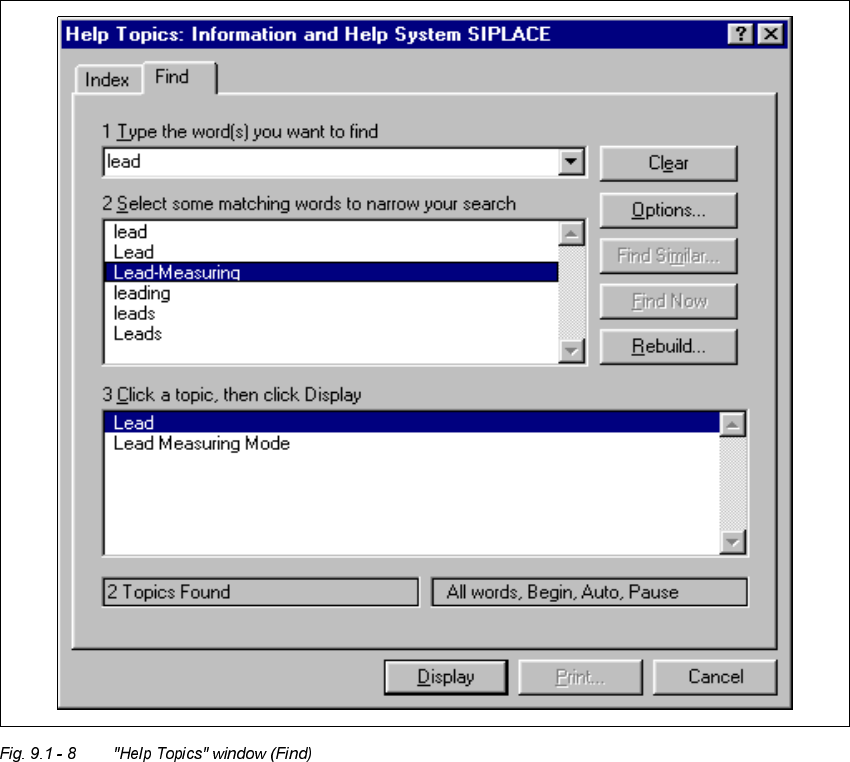

9 Online Help System User Manual SIPLACE S-23 HM
9.1 General Software Version SR.406.xx 02/00 US Edition
366
User Manual SIPLACE S-23 HM 10 Component handling
Software Version SR.406.xx 02/00 US Edition 10.1 Overview
367
10 Component handling
10.1 Overview
The following feeder modules are currently available for supplying various component types to the
placement system: 10
– 8 mm SII module
– 3 x 8 mm S module
– 3 x 8 mm S module for 0201/0402 components
– 12/16 mm S module
– 24/32 S module
– Linear vibratory feeder, type 3
– Bulk case feeder
These feeder modules can be used to process the latest package forms of all components, such
as bulk cases, stick steel magazines and taped components. 10
The most important feature of the modular component feeding system is its great flexibility. For
example, the feeding intervals can be set on the module. The tape feeder modules can handle
both paper and blister tapes. In this way, just a small selection of modules is sufficient for inserting
a wide range of component types. 10
The position detection (vision) system on the feeder modules enables the precise component
pick-up position to be determined. The position is determined automatically whenever the feeder
module or component table is changed. 10
Feeder modules can thus be changed quickly and easily, even by inexperienced personnel. 10
PLEASE NOTE 10
Detailed information on the feeder modules is contained in the component feeder module operat-
ing instructions. 10
10 Component handling User Manual SIPLACE S-23 HM
10.2 Technical data for the feeder modules Software Version SR.406.xx 02/00 US Edition
368
10.2 Technical data for the feeder modules
The following pages contain diagrams of all the feeder modules, technical data and the module
setting options on the placement system. 10
10.2.1 8 mm S II module
10

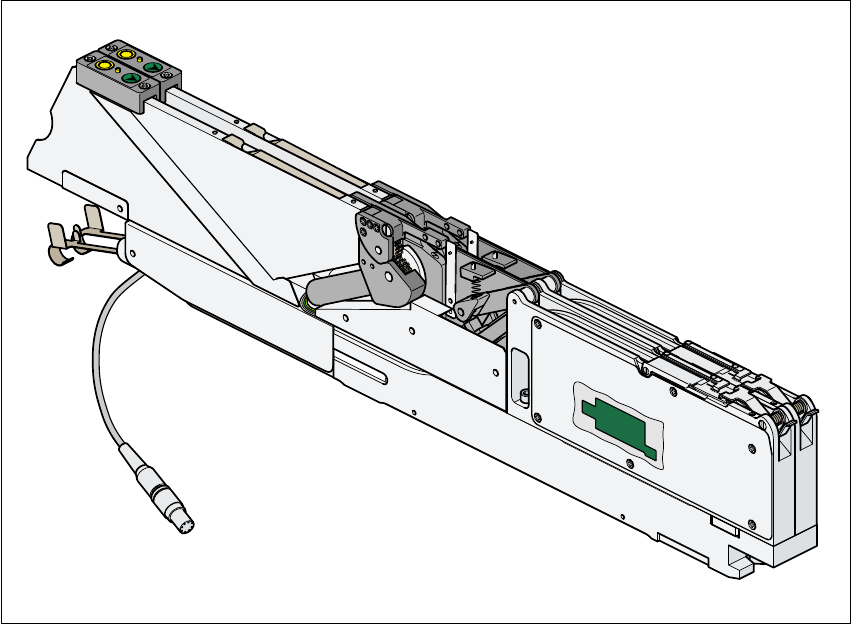

Fig. 10.2 - 1 8 mm S II module
Item no. 00141096-xx
Width 30 mm
Tracks per module 2
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 10000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 2mm / 4mm
Cycle time 60 ms
Main power supply 30 VDC
