User Manual SIPLACE S-23 HM 10 Component handling
Software Version SR.406.xx 02/00 US Edition 10.2 Technical data for the feeder modules
369
10.2.2 3 x 8 mm S module
10

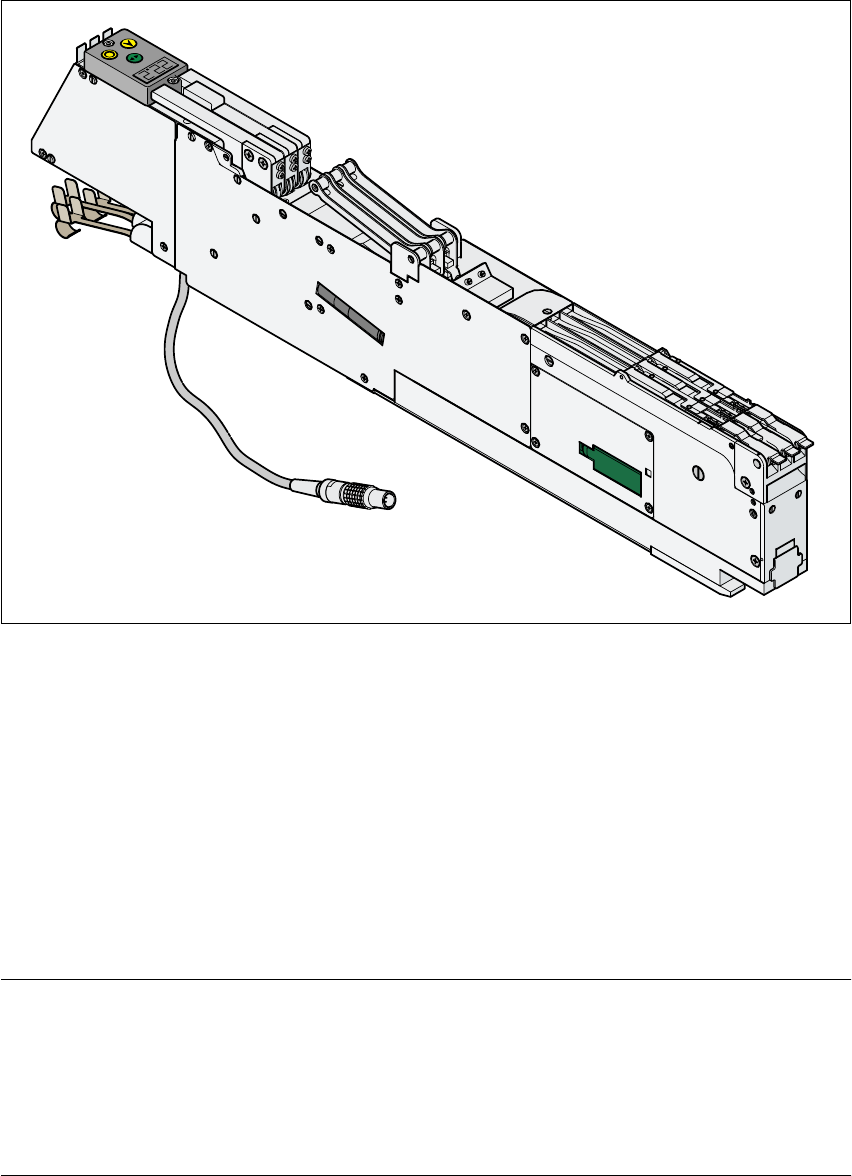

Fig. 10.2 - 2 3 x 8 mm S module
Item no. 00141098-xx
Width 30 mm
Tracks per module 3
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 10,000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 2mm / 4mm
Cycle time 60 ms
Main power supply 30 VDC
LIMITED COMPONENT PICK-UP OPTIONS:
If the following combination of track, location and conveyor track is used, components cannot be
picked up from triple conveyors.
Location/Track Conveyor track
1/115 3
3/1 1 10
10 Component handling User Manual SIPLACE S-23 HM
10.2 Technical data for the feeder modules Software Version SR.406.xx 02/00 US Edition
370
10.2.3 3 x 8 mm S module for 0201/0402 components

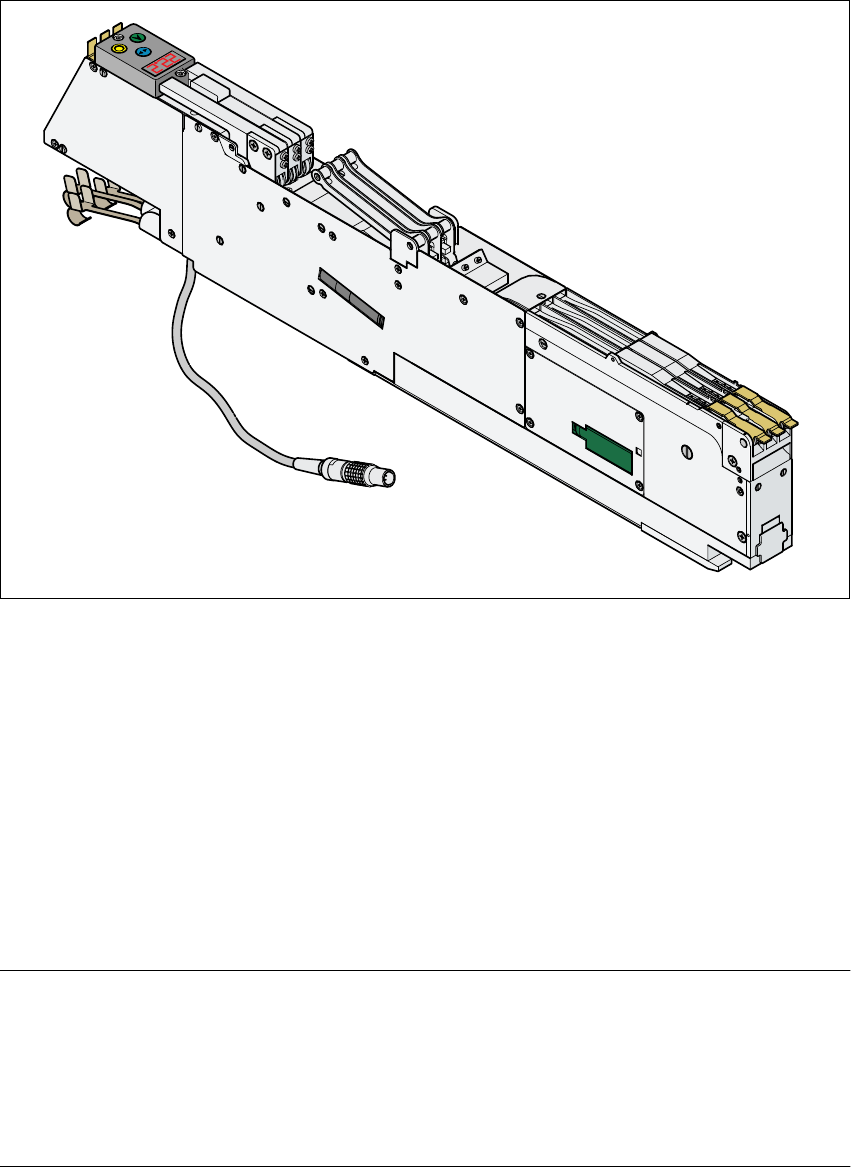

Fig. 10.2 - 3 3x8mm S module for 0201/0402 components
Article number 00141099-xx
Width 30 mm
Component range 0201, 0402
Tracks per module 3
Maximum number of modules (DCA) 2 x 20
Stock of components for 7” reels approx. 10,000 – 15,000
Data specific to reel diameter 7” – 15”, maximum 381 mm
Transport distance (adjustable) 2mm ( 4mm)
Cycle time 60 ms
Power supply 30 V DC
LIMITED COMPONENT PICK-UP OPTIONS:
If the following combination of track, location and conveyor track is used, components cannot be
picked up from triple conveyors.
Location/Track Conveyor track
1/115 3
3/1 1 10
User Manual SIPLACE S-23 HM 10 Component handling
Software Version SR.406.xx 02/00 US Edition 10.2 Technical data for the feeder modules
371
10.2.4 12/16 mm S module
10
Fig. 10.2 - 4 12/16 mm S module
Item no. 00141092-xx
Width 30 mm
Tracks per module 1
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 4 mm, 8 mm, 12 mm, 16 mm
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC
