10 Component handling User Manual SIPLACE S-23 HM
10.3 Setting up the feeder modules Software Version SR.406.xx 02/00 US Edition
376
10

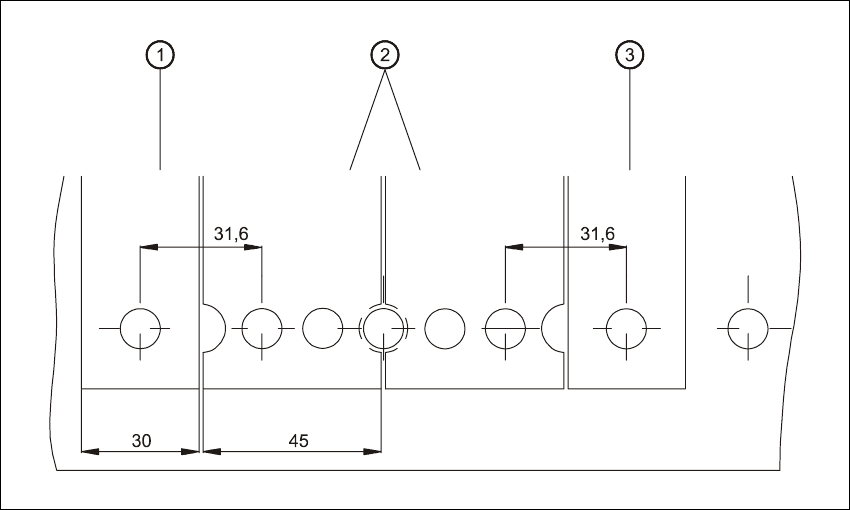

Fig. 10.3 - 1 Inserting 30 or 45 mm wide feeder modules on the component table
Key to Fig. 10.3 - 1
(1) Feeder module, 30 mm wide
(2) Feeder module, 45 mm wide
(3) Feeder module, 30 mm wide
User Manual SIPLACE S-23 HM 10 Component handling
Software Version SR.406.xx 02/00 US Edition 10.4 Tape container
377
10.4 Tape container
10.4.1 Overview
Reels up to 15" in diameter may be used, although for 15" reels you should use spindles as well.
Insert the spindles into the partitions as shown in Fig. 10.4 - 1. 10
PLEASE NOTE 10
We recommend that you use spindles if the tape reel diameter exceeds 5". This will ensure that
the feeder modules operate reliably. 10

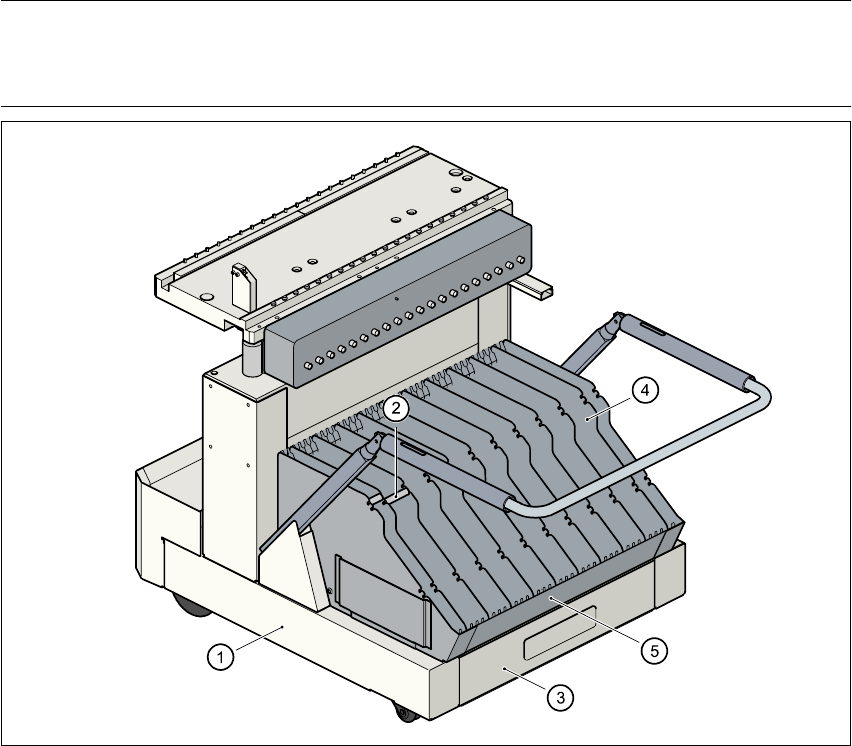

Fig. 10.4 - 1 Component table and tape container
(1) Component changeover table (2) Spindle
(3) Waste tape container (4) Partition
(5) Tape container 10
10 Component handling User Manual SIPLACE S-23 HM
10.5 Used tape cutter Software Version SR.406.xx 02/00 US Edition
378
10.5 Used tape cutter
10.5.1 General
The placement system has a used tape cutter at each of the two component table locations. It is
used to cut off the waste tape. The cut pieces of tape drop into the waste tape container in the
component table. 10
Å Empty the waste tape container every day.

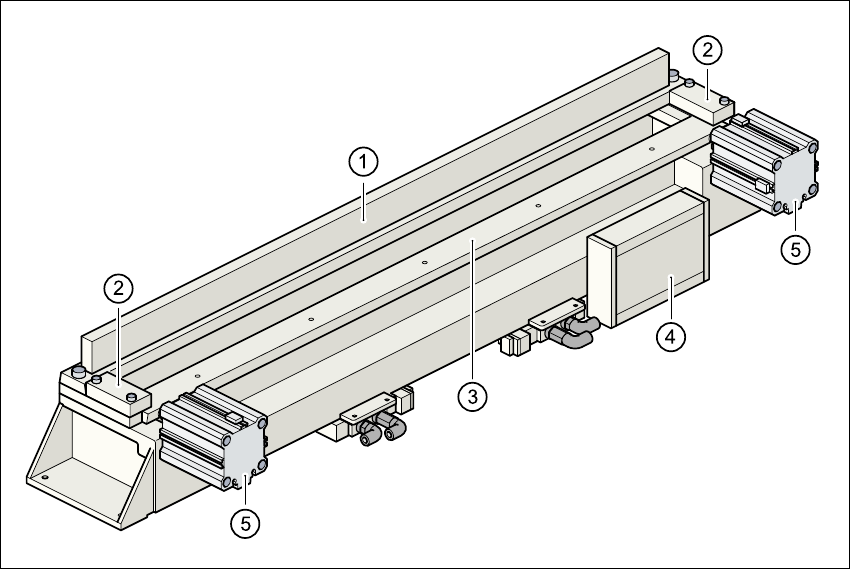

Fig. 10.5 - 1 Used tape cutter
Key to Fig. 10.5 - 1
(1) Stationary cutting blade
(2) Retainer
(3) Moving cutting blade
(4) Electronic control unit
(5) Short stroke cylinder
