11 Station extensions / hardware User Manual SIPLACE S-23 HM
11.4 PCB barcode Software Version SR.406.xx 02/00 US Edition
402
11.4.5 Assembly options for the PCB barcode reader

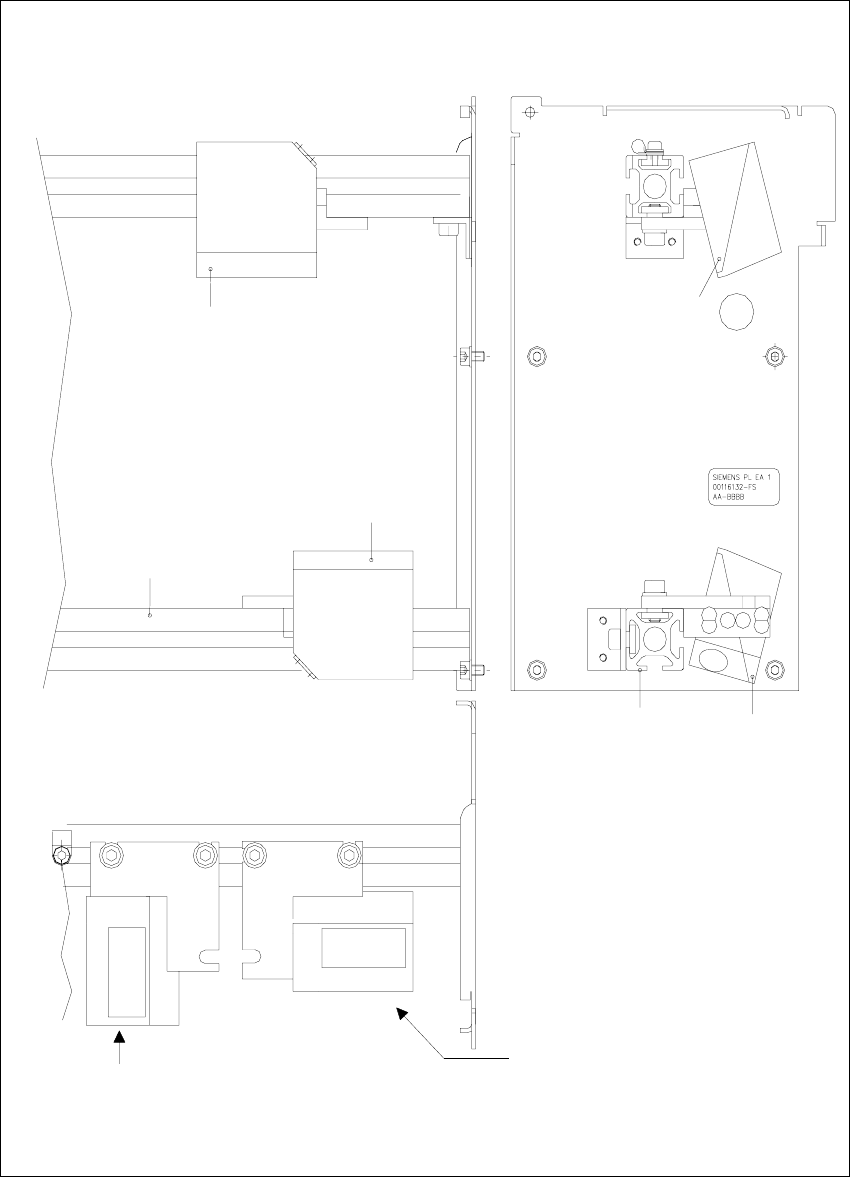

Fig. 11.4 - 3 Assembly options for the PCB barcode reader
Front view 11 Side view 11
Assembly for
PCB barcode on
the PCB topside
Assembly for
PCB barcode on
the PCB underside
Plan view 11
Position of the PCB barcode
reader if the barcode strip
is aligned parallel to
the PCB transport direction.
Position of the PCB barcode
reader if the barcode strip
is aligned perpendicular to
the PCB transport direction.
Profiled rail
PCB barcode
reader ‘topside’
PCB barcode
reader ‘underside’
Profiled rail
User Manual SIPLACE S-23 HM 11 Station extensions / hardware
Software Version SR.406.xx 02/00 US Edition 11.4 PCB barcode
403
11.4.6 Configuring the PCB barcode reader
The PCB barcode reader is configured using barcode labels. The retrofit kit contains the program
for defining these labels. 11
11.4.7 Displaying the PCB barcode
This menu is used to display in a list box the last barcode to be read by the PCB barcode reader.11
The box also indicates if the barcode was read incorrectly, a start signal was received, the wrong
format was identified or no data was available. 11
Å Select the PCB barcode submenu under Options from the menu bar.
. 11

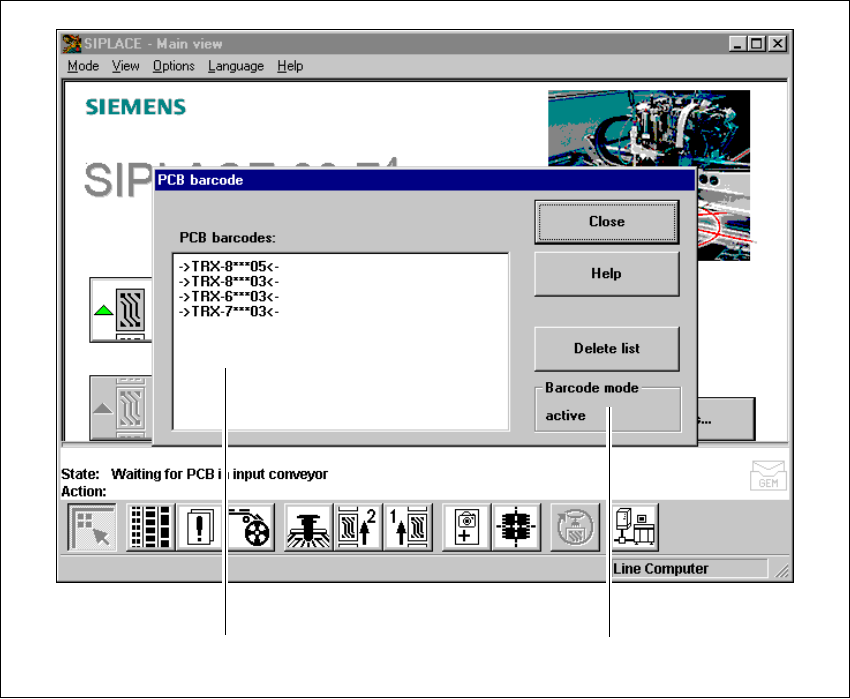

Fig. 11.4 - 4 Displaying the PCB barcode
(1) List box
(2) Status display
Å To delete the list, click on the Delete list button.
111
211
11 Station extensions / hardware User Manual SIPLACE S-23 HM
11.4 PCB barcode Software Version SR.406.xx 02/00 US Edition
404
Å The barcode mode operating state is shown in the status display of the menu window. This op-
erating state is activated and deactivated by the line computer.
PLEASE NOTE
This menu is only active if the PCB barcode option is installed, and has been activated in the ma-
chine options. 11
