11.7 PCB data transfer

11.7.1 Functional description

The ’Machine options’ menu contains a ’PCB data transfer’ option. The aim of this function is to

increase the placement system’s performance on the line. To do this, an entire PCB is measured

at the

first

placement station and the associated fiducial, single circuit, ink spot, etc. data is deter-

mined, saved and sent to the next station. At subsequent stations, the data is then determined for

two fiducial positions only. These two fiducial positions are then used to correct the position for the

PCB to be processed at each station. It is thus not necessary to measure the entire PCB again,

together with its single circuits, ink spots etc. 11

11.7.2 Activating the ’PCB data transfer’ option

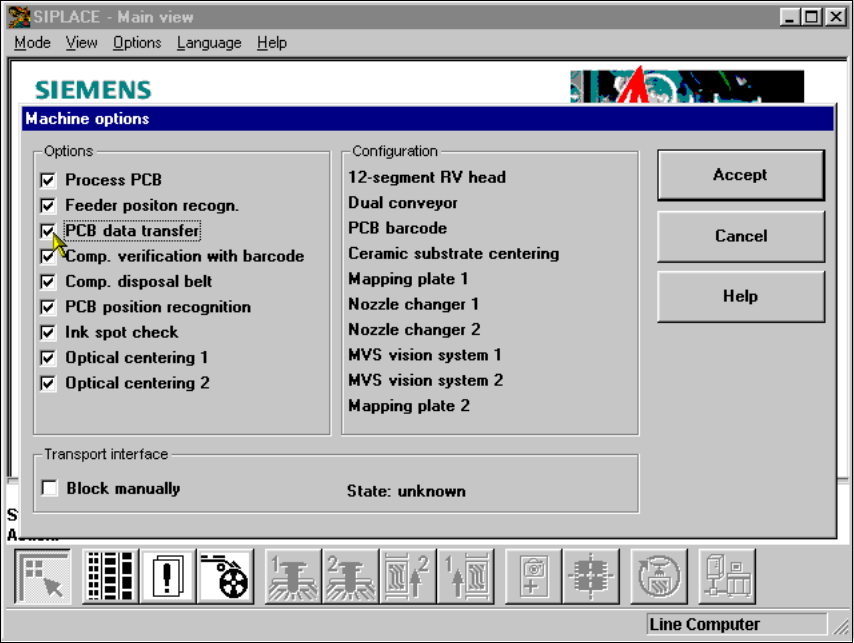

Fig. 11.7 - 1 Machine option: PCB data transfer

User Manual SIPLACE S-23 HM 11 Station extensions / hardware

Software Version SR.406.xx 02/00 US Edition 11.7 PCB data transfer

413

Å Click on the ’Machine options’ button in the basic view.

The ’Machine options’ window opens.

Å In the ’Options’ box, check the ’PCB data transfer’ option for the station concerned.

Å Click on the ’OK’ button. The ’PCB data transfer’ option is now active.

PLEASE NOTE: The ’PCB data transfer’ option can only be used in conjunction with a PCB bar-

code reader. 11

11 Station extensions / hardware User Manual SIPLACE S-23 HM

11.8 Fine calibration Software Version SR.406.xx 02/00 US Edition

414

11.8 Fine calibration

11.8.1 Overview

Fine calibration involves measuring the machine’s placement offset and determining the required

correction from this value. The ‘Fine calibration’ measuring program is integrated into the SITEST

program, and a detailed description of the measuring procedure is given in the ‘Fine calibration’

instructions (article no. 00191655-01). 11

CAUTION

The SITEST program is password-protected. It must only be called up and used by Siemens en-

gineers or appropriately trained personnel. 11

11.8.2 System requirements

The following system requirements must be fulfilled in order to use the fine calibration program:11

Machine type S2x, F

4 or later

Station computer software version 406.xx or later

SITEST version 406.xx or later

11.8.3 Measuring equipment and tools

The following are supplied as standard: 11

– Mapping plate (glass plate in a metal frame)

– Double-sided transparent adhesive film

– Lighting unit

– Magazine with glass components for the revolver head and Pick&Place head with fine-pitch

vision module.

The following items must be ordered: 11

– Manual tray (waffle tray holder) to hold the magazine for the glass components

(article number 00116430-xx)
