User Manual SIPLACE S-23 HM 12 Station Extensions / Software
Software Version SR.406.xx 02/00 US Edition 12.1 Remote Support
419
12.1.4 Functions
The following components can be accessed remotely from the service centers in Munich, Sin-
gapore and Norcross. When this is done, the corresponding functions are operated and moni-
tored. 12
Line computer (SCO UNIX)
– "Remote" log-in
–Chat
– Sending commands to the customer’s line computer
– Starting and stopping programs at the customer’s line computer
– "Remote" editing
– File transfer
12
Station computer
– "Remote" log-in
– "Remote" operation of programs (user interface, SITEST, diagnostics)
– Sending messages to the customer’s station computer ("chat mode“)
– File transfer
– "Remote" editing
12
Machine controller
– "Remote" log-in
– File transfer
12 Station Extensions / Software User Manual SIPLACE S-23 HM
12.1 Remote Support Software Version SR.406.xx 02/00 US Edition
420
12.1.5 Overview
The following configurations are possible for the customer’s placement line: 12
– Connection of the ISDN router to the local SIPLACE-LAN
– Connection of the ISDN router to the customer’s site LAN
12.1.5.1 Connecting the ISDN router to the local SIPLACE-LAN
This possibility is used when there is no site LAN available at the customer’s premises.
The customer will not need to implement any additional data security measures. 12
12

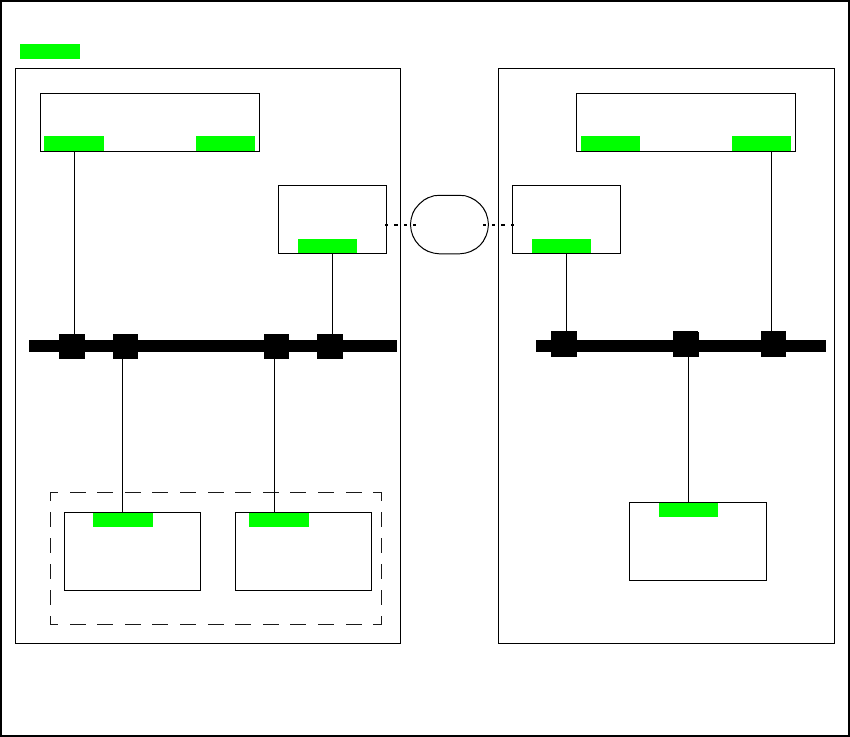

Fig. 12.1 - 1 Connection of ISDN router to the local SIPLACE-LAN
Line computer
Router
Station
computer
Machine
controller
SIPLACE
LAN
Router
Station
computer
LAN
Line computer
Customer‘s placement line Service center
ISDN
network
= LAN card
User Manual SIPLACE S-23 HM 12 Station Extensions / Software
Software Version SR.406.xx 02/00 US Edition 12.1 Remote Support
421
12.1.5.2 Connecting the ISDN router to the customer’s site LAN
The advantage of this alternative is that several placement lines can be addressed via a single
router. 12
12
Fig. 12.1 - 2 Connection to the customer’s site LAN
12.1.6 Procedure and Operation
Å Contact our service center (Munich, Norcross or Singapore).
Å Follow the instructions given by the engineer.
12
Line computer
(LC)
Router
Station
computer
Machine
controller
SIPLACE
LAN
Router
Station
computer
LAN
Line computer
(LC)
Service center
Customer‘s central site network
= LAN card
ISDN
network
Customer‘s placement line
