User Manual SIPLACE S-23 HM 2 Operational Safety
Software Version SR.406.xx 02/00 US Edition 2.1 Safety instructions
67
2.1.8 Safety instructions for coupling and uncoupling the mobile changeover
table
WARNING 2
Å Never reach into the gaps between the component changeover table and the placement sys-
tem frame while the machine is running (item 1).
Å Always check that the component table is docked on the placement system before connecting
or disconnecting the power cable for the component changeover table at the socket on the
placement system (item 2).
Å NEVER connect the connecting cable for the component table to the socket on the placement
system and then operate the component table outside the machine via the compressed air
control unit (item 3).

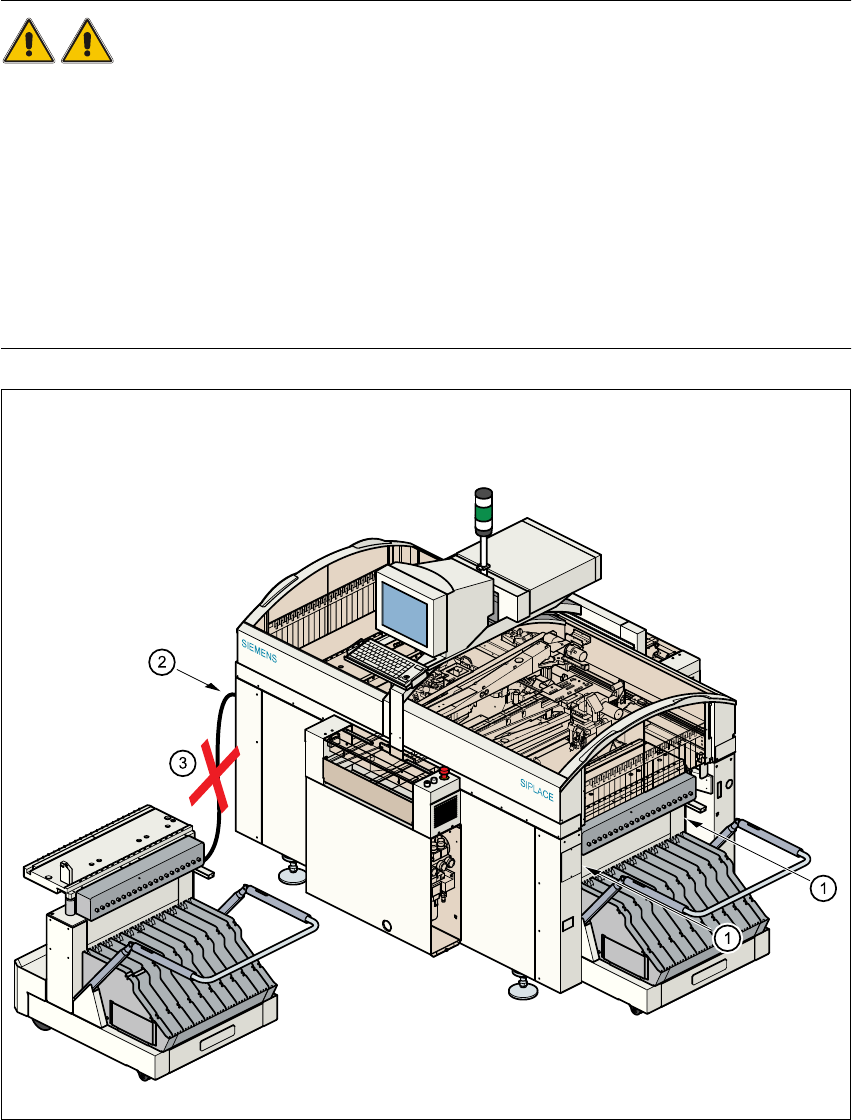

Fig. 2.1 - 8 Safety instructions for coupling and uncoupling the mobile changeover table
2 Operational Safety User Manual SIPLACE S-23 HM
2.1 Safety instructions Software Version SR.406.xx 02/00 US Edition
68
 6DIHW\LQVWUXFWLRQVIRUFKDQJLQJWKHKHL JKWRIFRPSRQHQWWDEOH V
WARNING 2
The component table must only be converted to modify the default
height by trained Service personnel.
Act with considerable care during the conversion process since
the system contains large weights or compression springs (potential
energy).
&RQYHUWLQJWKHFRPSRQHQWWDEOHWRVXLWDGLIIHUHQWOLQHKHLJKW
Å Use the placement system’s pneumatic controller to raise the table bed. Then insert a 120mm
spacer block between the table bed and cross-beam, and lower the bed onto the block.
Å Dismantle the internal paneling.
Å Swivel the handle down. The latching disk swivels down as well.
Å Set the screw to the desired dimension and lock in place with the locknut.
3/($6(127(
,I\RXFDQQRWORRVHQWKHDGMXVWLQJVFUHZIDUHQRXJKWKHFURVVEHDPPXVWEHUDLVHG
Å Fix the lifting device to the cross-beam.
Å
Carefully
open the cross-beam clamp.
Å Raise the cross-beam until the end of the tube projects approx. 1mm out of the clamp.
Å Tighten the cross-beam clamp.
Å Then turn the adjusting screw to the desired dimension and lock in place with the locknut.
Å Swivel the component table handle up. The latching disk will also swivel up.
3/($6(127(
,I\RXFDQQRWVZLYHOWKHODWFKLQJGLVNXSWRLWVHQGSRVLWLRQWKHFURVVEHDPPXVWEHUDLVHG
Å )L[WKHOLIWLQJGHYLFHWRWKHFURVVEHDP
Å &DUHIXOO\RSHQWKHFURVVEHDPFODPS
Å 5DLVHWKHFURVVEHDPXQWLOWKHHQGRIWKHWXEHSURMHFWVDSSUR[PPRXWRIWKHFODPS
Å 7LJKWHQWKHFURVVEHDPFODPS
Å Then turn the adjusting screw to the desired dimension and lock in place with the locknut.
User Manual SIPLACE S-23 HM 2 Operational Safety
Software Version SR.406.xx 02/00 US Edition 2.1 Safety instructions
69
Å Then
carefully
open the cross-beam clamp.
Å Lower the cross-beam until the adjusting screw comes into contact with the latching disk.
Å Tighten the cross-beam clamp.
Å Then check the distance between the cross-beam and floor.
Å Refit the internal paneling.
Å Raise the table bed and remove the spacer block.
2.1.10 Safety instructions for the changeable component feeder table
If you use a changeable component feeder table rather than a mobile changeover table, then fol-
low these safety instructions to prevent injury or damage to machines. 2
WARNING 2
If you have installed a changeable component feeder table, do not forget to secure it with the two
M10 hexagon socket-head bolts (see item 1 and 2 in fig. 2.1 - 9). If you do not do this, the com-
ponent feeder table could tip over and the placement head could collide with the feeder as it ap-
proaches the feeder area. 2
