Specification SIPLACE CF-Medium - 第15页
14 Desc ription The manual tr ay feeder is one option f or picking up components from waffle packs and m atrix trays. A nu m ber of “ manual trays ” can b e placed on the component changeover tables (right- hand table fo…
13
Description
Some local safety requirements
dictate that all feeder locations
must be equipped with feeders.
If the feeder set-up does not fill
all feeder locations, guards may
be used in place of the modules.
SAFETY
WARNING
Component Supply:
Guard for Feeder Locations
The following guard-variants can be used:
1 SIPLACE guard for 1 location
2 SIPLACE guard for 6 - 10 locations
3 SIPLACE guard for 11 - 20 locations

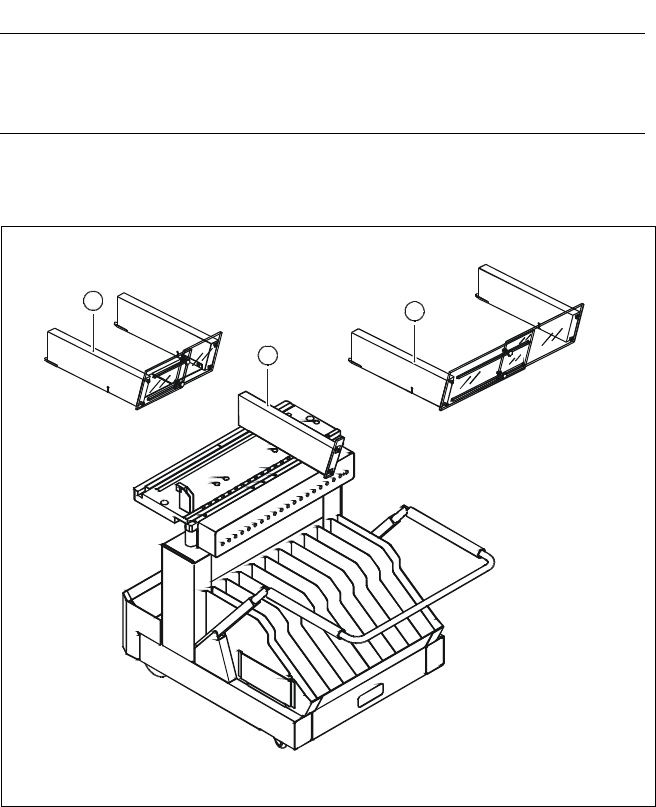

Various Guards for Feeder Locations
3
2
1
14
Description
The manual tray feeder is one
option for picking up components
from waffle packs and matrix
trays. A number of “manual trays”
can be placed on the component
changeover tables (right-hand table
for Fine Pitch components). This
option is recommended if only a
few component types are supplied
in trays.
Component Supply:
Manual Trays
Technical Data
Sizes
136 x 360 mm
2
;
requires 5 feeder locations
260 x 360 mm
2
;
requires 9 feeder locations
Max. tray height 12.5 mm including component
Parts
Manual tray
Carrier tray
JEDEC Waffle Packs
Directly in the manual tray
136 mm wide

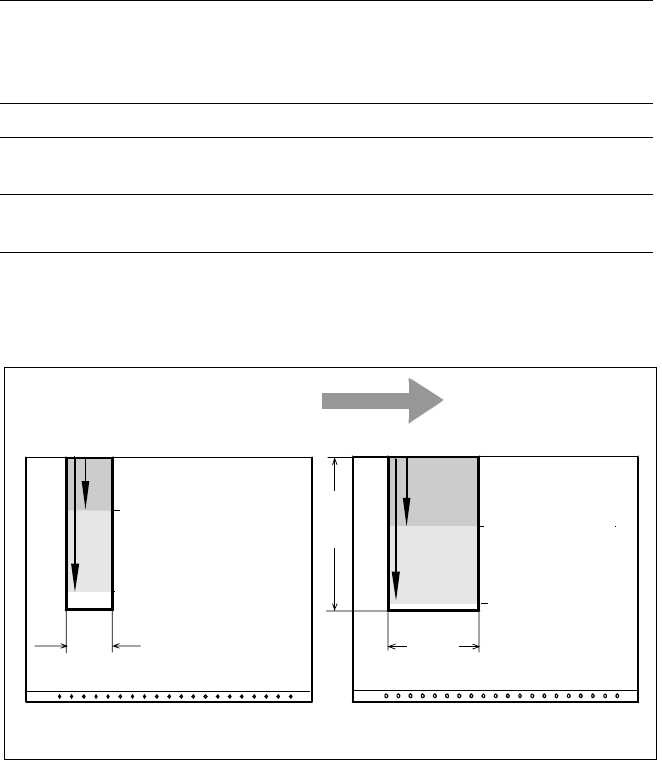

Pick & Place Head and Collect & Place Head Access to Manual Tray
Transport Direction
Collect & Place Head
Pick & Place Head
Feeder Table
136
JEDEC Magazine
119 mm
301 mm
Collect & Place
Head
Pick & Place Head
Feeder Table
260
(136)
360
Carrier Tray
157 mm
339 mm
15
Description
If a number of Waffle Packs are
required during a placement proc-
ess, the use of the automatic
Waffle Pack Changer (WPC) is
recommended. The set-up of the
WPC is exactly coordinated with
the sequence of placement for a
work process optimized in terms
of path and time. An elevator
automatically brings the correct
magazine into the access range of
the placement head. The magazine
for the first component is changed
as soon as a PCB moves into the
placement conveyor and valid data
for cluster and set-up are available.
The remaining magazine changes
are made in slack time during
placement. The magazines can be
replenished without any machine
idle time. The placement head
puts faulty components back
where it picked them up.
A narrow component table with
10 locations for feeder modules is
also available on the tray changer
(sample capacity: 20 tracks of
8 mm each).
Component Supply:
Waffle Pack Changer
Technical Data
Contents of storage 28 carrier trays for Waffle Packs
Max. magazine size 240 x 340 mm
2
Max. tray size
6-Nozzle Collect & Place Head
Pick & Place Head
≤ JEDEC Tray
≤ 240 x 340 mm
2
Magazine height 15 mm including component
Max. number of
component types 200 per Waffle Pack Changer
Changing time
per magazine
< 3 s
parallel to other substeps during a
placement cycle

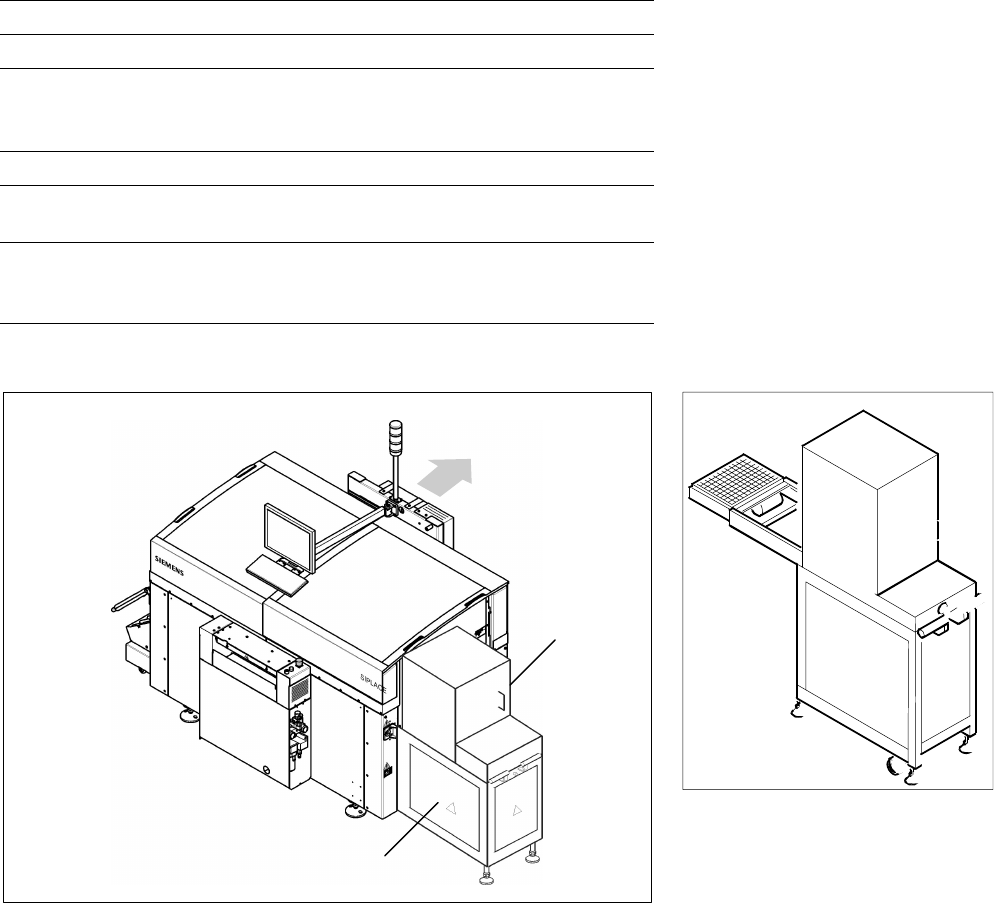

Waffle Pack Changer
SIPLACE CF with Waffle Pack Changer
Waffle Pack
Changer
PCB
Transport
Direction
10 Feeder
Positions
