How to Use Mark Follow to Dispense Along a Curved Line (continued)
To Use Mark Follow and / or Mark Follow Adjust in a Program (continued)
# Click Step Reference Image
2
>

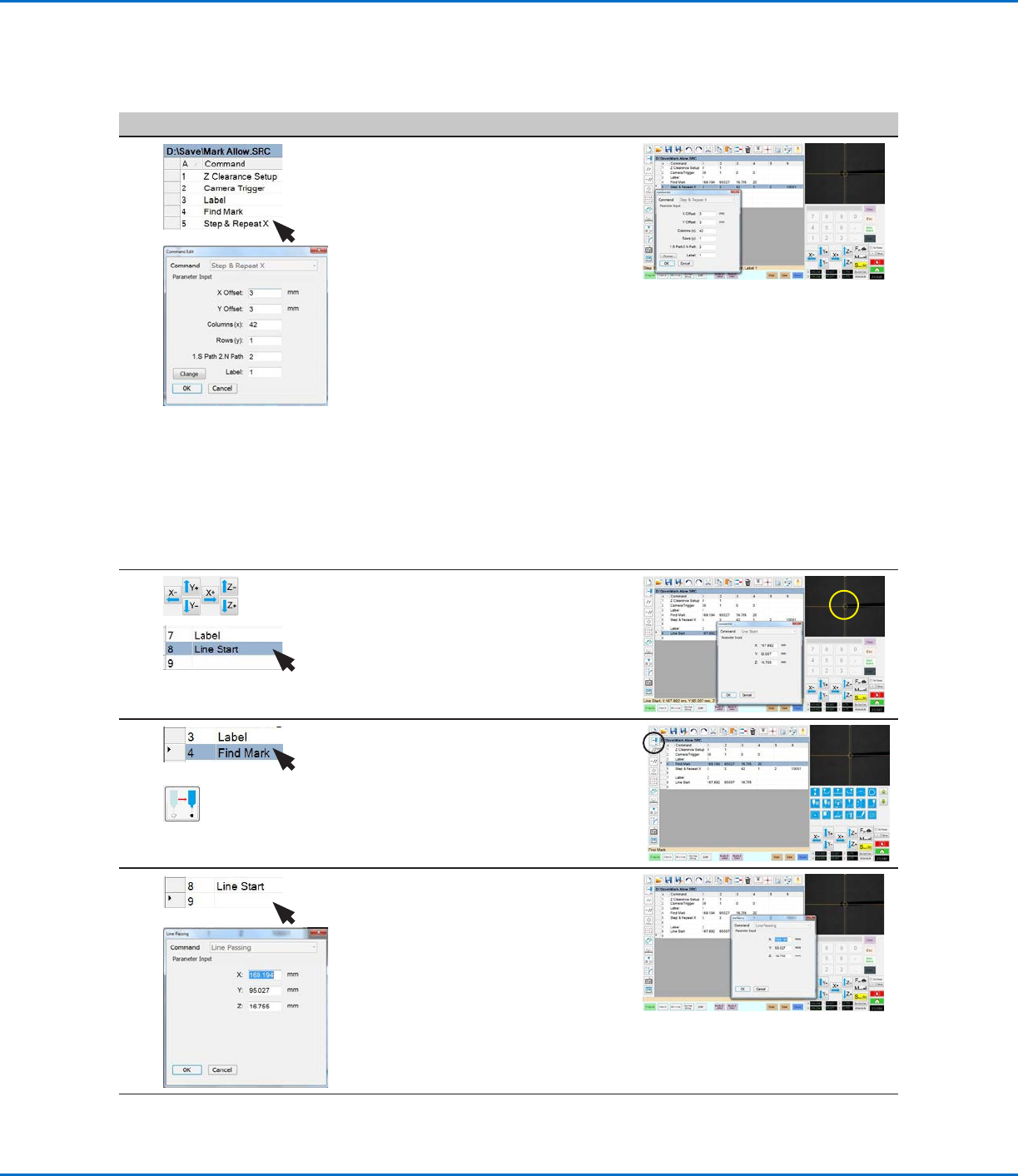

• Insert a Find Mark command for the
mark you created in the previous
procedure. Be sure to enter the Mark
No.
• Insert a Step & Repeat X command and
specify the parameters for this example:
- The values for XOFFSET and
YOFFSET represent the length and
orientation (horizontal or vertical) of
the line.
- The value for COLUMNS (X) sets how
many times you want the camera to
view the line and make adjustments.
- For ROW, enter 1.
- For LABEL, enter 1.
NOTE: The XOffset value multiplied
by the number of Columns cannot be
greater than the total length of the line.
Because there is only one row, the
S.Path / N. Path parameter does not
have an effect.
3
>
• Jog the camera to the left side of the
curved line and then enter a Line Start
command.
4
>
• Select the Find Mark command created
previously (line 4 in this example).
• Click MOVE.
5
>
• In the next empty address (line 9 in
this example), insert a Line Passing
command.
• Enter the same coordinates used in
the Find Mark command (line 4 in this
example).
Continued on next page
GV Series Automated Dispensing Systems
79www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
How to Use Mark Follow to Dispense Along a Curved Line (continued)
To Use Mark Follow and / or Mark Follow Adjust in a Program (continued)
# Click Step Reference Image
6
>

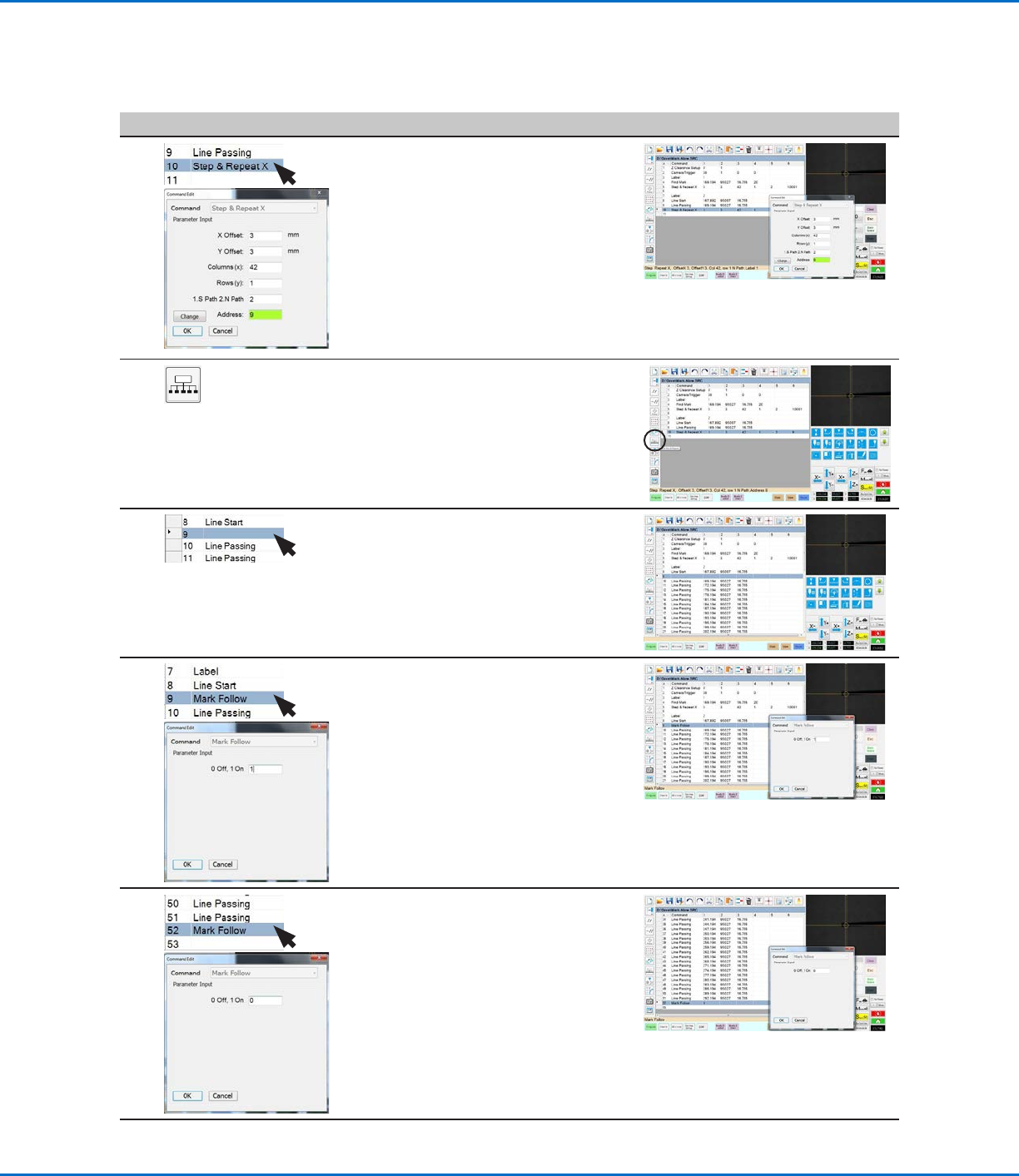

• In the next empty address (line 10 in
this example), insert a second Step &
Repeat X command.
NOTE: This Step & Repeat command is
the same as the previous Step & Repeat
command (Line 5 in this example),
except for the Label.
• Change the last parameter from Label
to Address and enter the address of the
first Line Passing command (line 9 in
this example).
7
• Click EXTEND STEP & REPEAT.
The system extends the Step & Repeat
X command by adding Line Passing
commands for many line passing points
along the line.
8
• Insert a blank address after the Line
Start command (line 8 in this example).
9
>
• In the blank address, insert a MARK
FOLLOW command.
• Enter 1 to set the command to ON.
10
>
• After the last Line Passing command
(line 51 in this example), insert another
MARK FOLLOW command.
• Enter 0 to set the command to OFF.
Continued on next page
GV Series Automated Dispensing Systems
80 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
# Click Step Reference Image
11
>
• Jog the camera to the right side of the
curved line and then insert a LINE END
command.
• Insert an END PROGRAM command.
12
>
• Return to PROGRAM screen and then click RUN to test the program.
The system should go to the Find Mark image created for this program,
then perform the Step & RepeatX command in the X direction 42 times, at
an interval of 3mm each time. Each Step & RepeatX command aligns itself
with the center of the line. Once done, the system dispenses along the line,
following the curve.
NOTES:
- Click VIEW if you want to view the pattern before running it.
- Because the line for this example is fairly straight, this program works
at this point using only a Mark Follow command. For deeper curves, the
Mark Follow Offset command is needed. Continue to the next step for an
explanation of how to use the Mark Follow Offset command for deeper
curves.

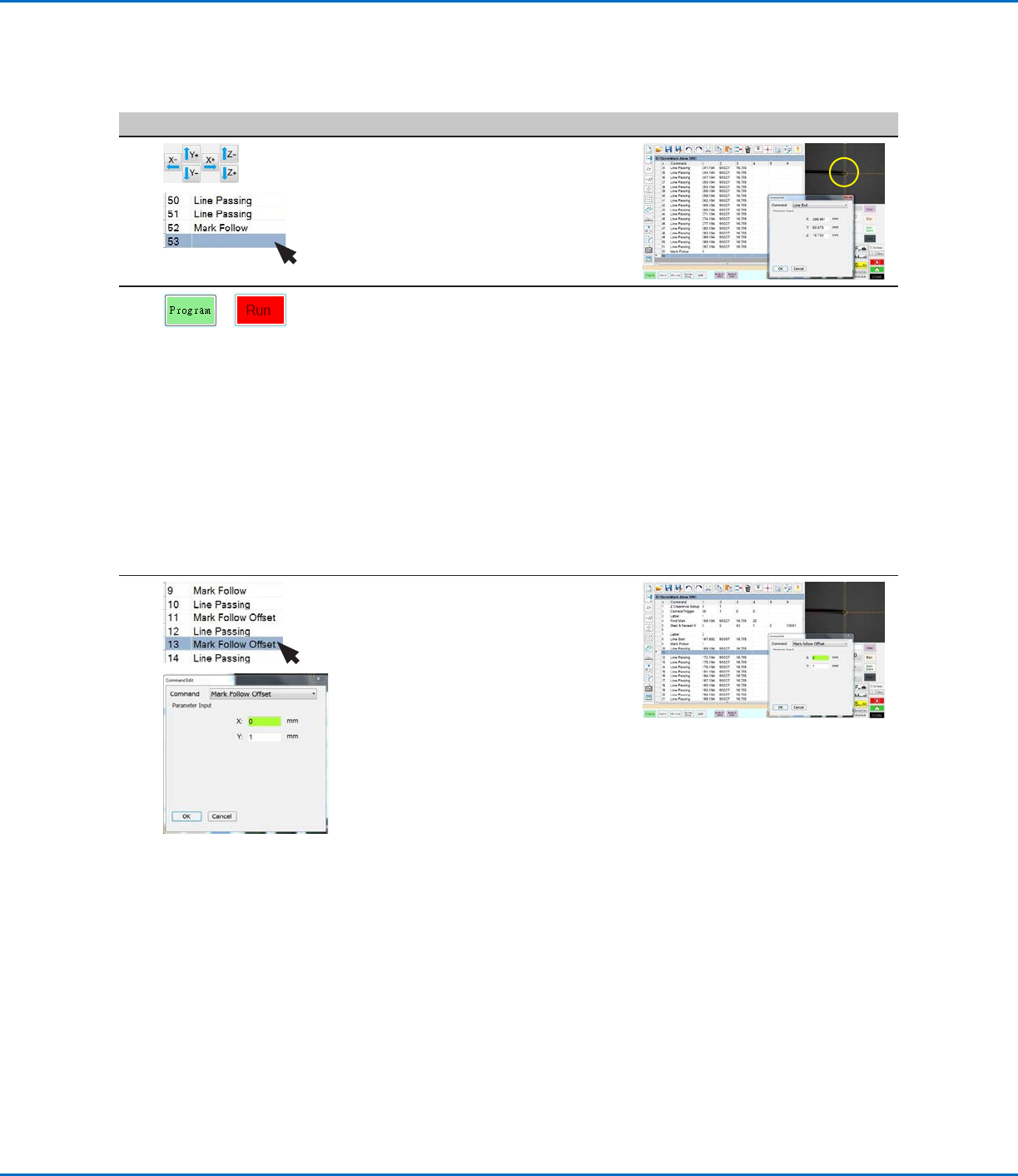

13
>
If needed for a line with a deeper curve:
• Insert a MARK FOLLOW OFFSET
command and enter X or Y offset values
to be applied to all commands below it.
• Insert additional MARK FOLLOW
OFFSET commands as needed to
obtain the desired dispense result.
NOTES:
- To remove the effect of a Mark Follow
Offset command, enter another Mark
Follow Offset command with the X
and Y values set to 0.
- If you are testing this example using
a slight curve, you might need to
recreate it using a deeper curve.
How to Use Mark Follow to Dispense Along a Curved Line (continued)
To Use Mark Follow and / or Mark Follow Adjust in a Program (continued)
