5 Placement Heads
5.2 C&P20 P/M2 Head
Technical Training SIPLACE TX-Series 10/2016 111
5.2.5.3 DP drive Power supply
1. Power cube for generating 30VDC/5.2A
from 40VDC
2. Base adapter
3. Flat ribbon cable
4. Intermediate board
5. E/D – Transmitter
●
42VDC are supplied from the main power
supply
●
The 30V DC are generate on the E/D
Transmitter
●
On the E/D-Transmitter the following
voltages are generated from the 30VDC:
– 1,8VDC for the processors
– 3,3VDC for the processors
– 30VDC routed directly to the DP drives
5 Placement Heads
5.2 C&P20 P/M2 Head
112 Technical Training SIPLACE TX-Series 10/2016
5.2.6 Board description
5.2.6.1 Intermediate Distributor Board Functions
●
The connection leads for all C&P20 head electrical sensors and actuators are directly plugged
into the intermediate board
●
LEDs indicate the head operating voltages and the sensor states
●
Test connectors for track signals, test pins for analog signals
●
Controlled power supply for incremental encoder of Z and star drives
●
Interface for component sensor, vacuum unit, hold circuit vacuum sensor and EEPROM
●
Signal conditioning of vacuum sensor in hold circuit, of component sensor and Z-down sensor
●
Signal preprocessing of head CAN bus
●
Trigger circuit for retract unit
●
DIP-Switch for diagnoses purposes
5 Placement Heads
5.2 C&P20 P/M2 Head
Technical Training SIPLACE TX-Series 10/2016 113

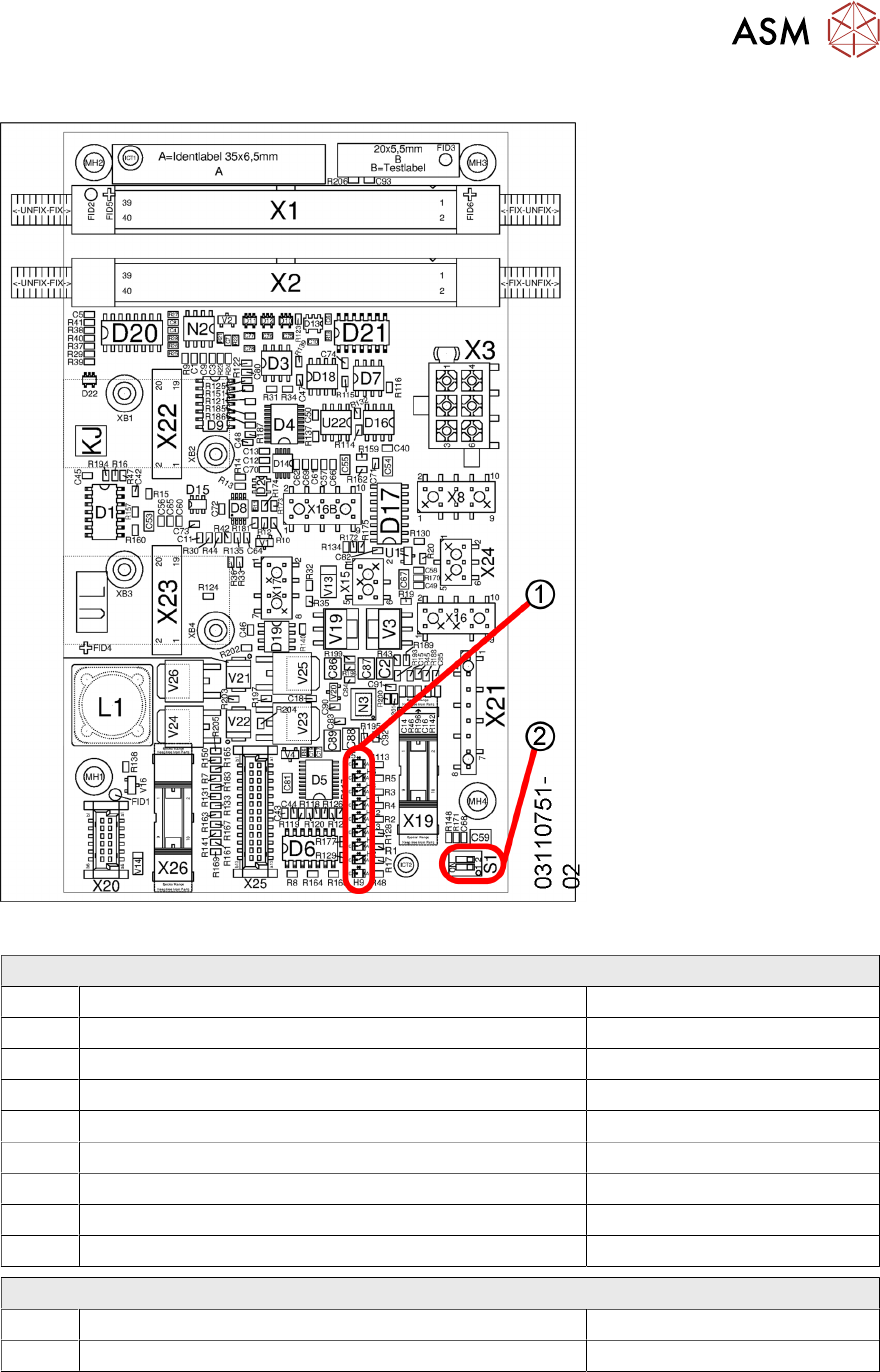

5.2.6.2 Intermediate Distributor Board LEDs
1. LEDs
2. DIP-Switches
Note:
Depending on the head, the
PCB has a different part
number.
LEDs
H1 Fan Yellow
H2 Fan error Red
H5 + 5V Green
H6 + 15V Green
H8 + 24V Green
H9 Error 24 V DP Red
H11 24 V DP ON Yellow
H12 Return cylinder ON Yellow
H13 Pressure control valve status Yellow
DIP Switches
S1 DP Power ON 1-4 Off
S2 Z down test 2-3 OFF
