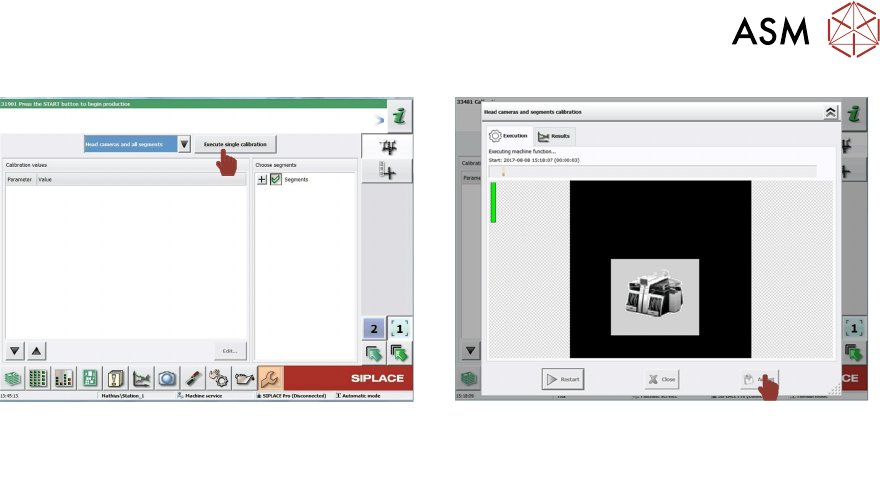

5. Click on Execute single calibration. 6. The calibration will be automatically per-
formed. It takes approx. 5 minutes then click
on Accept.
5 Placement Heads
5.3 Twin Head
148 Technical Training SIPLACE TX-Series 10/2016
5.3.8 Analyse
5.3.8.1 Error General Information

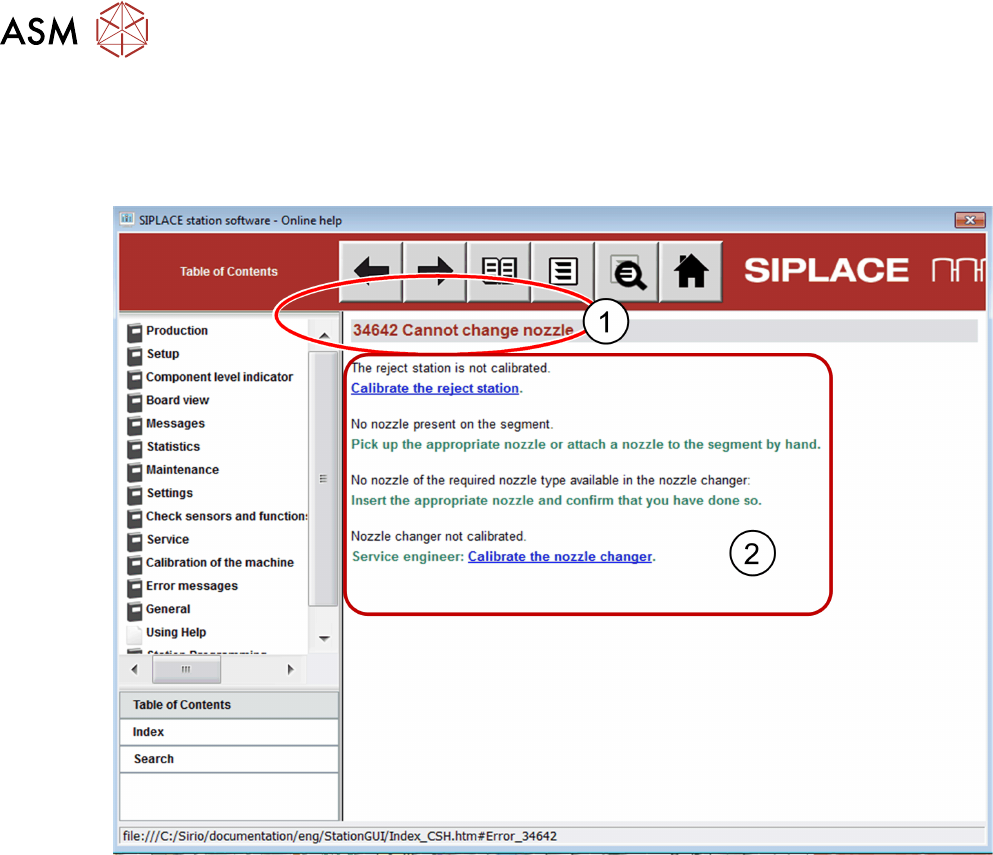

Check Error Information from "Help", to define which kind of problem has occurred.
1. Error Number
2. Possible cause and solution
The main causes of error during production are:
●
Vacuum error
●
Z Axis problem
●
DP Axis problem
●
Nozzle change pick up/reject problem
●
Placement quality issue

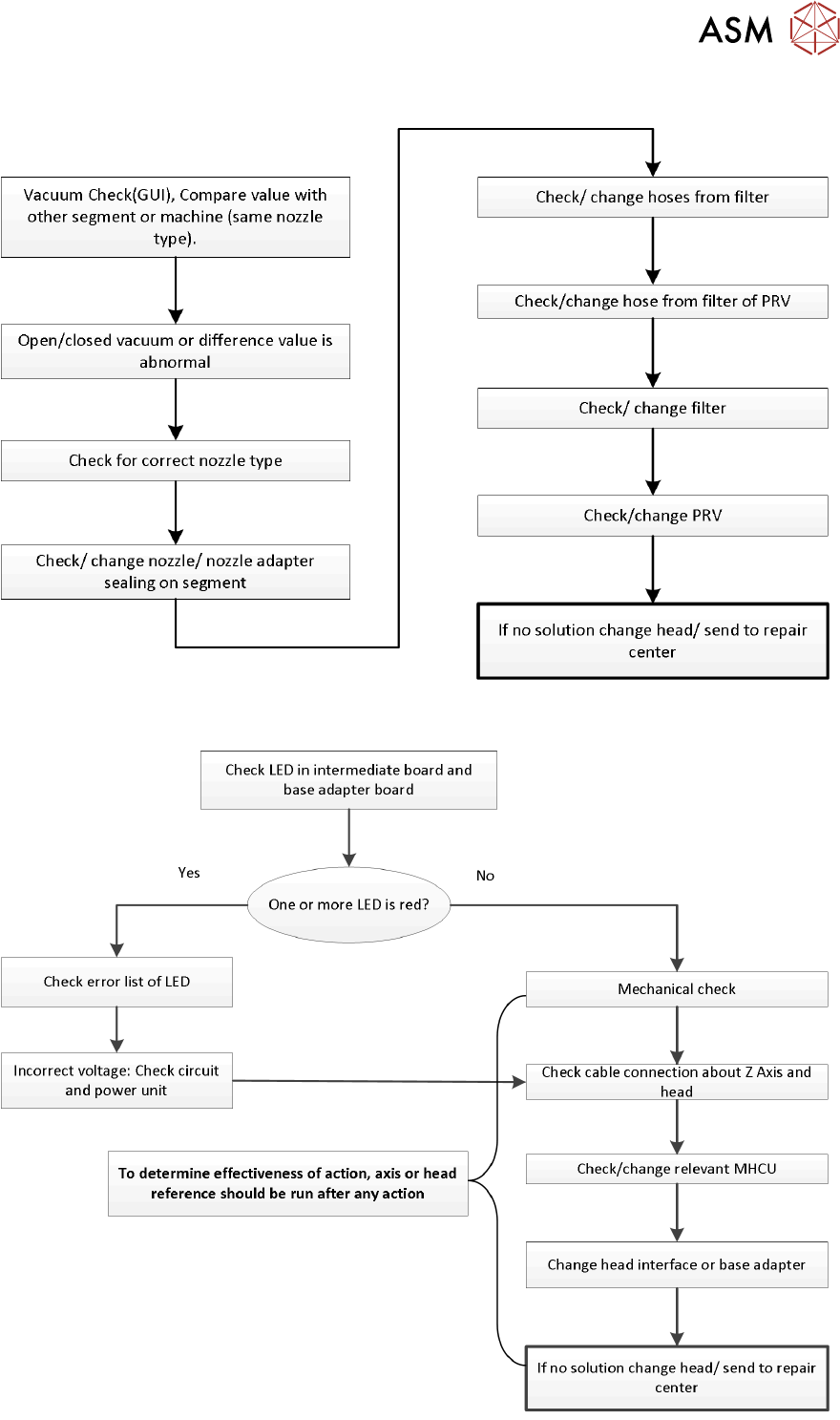

Use the charts below during the training to assist with trouble shooting.
5 Placement Heads
5.3 Twin Head
Technical Training SIPLACE TX-Series 10/2016 149
5.3.8.2 Vacuum Error
5.3.8.3 Z Axis Problem
