6 Component Supply
6.1 Change Over Table (COT)
Technical Training SIPLACE TX-Series 10/2016 155
6 Component Supply
6.1 Change Over Table (COT)

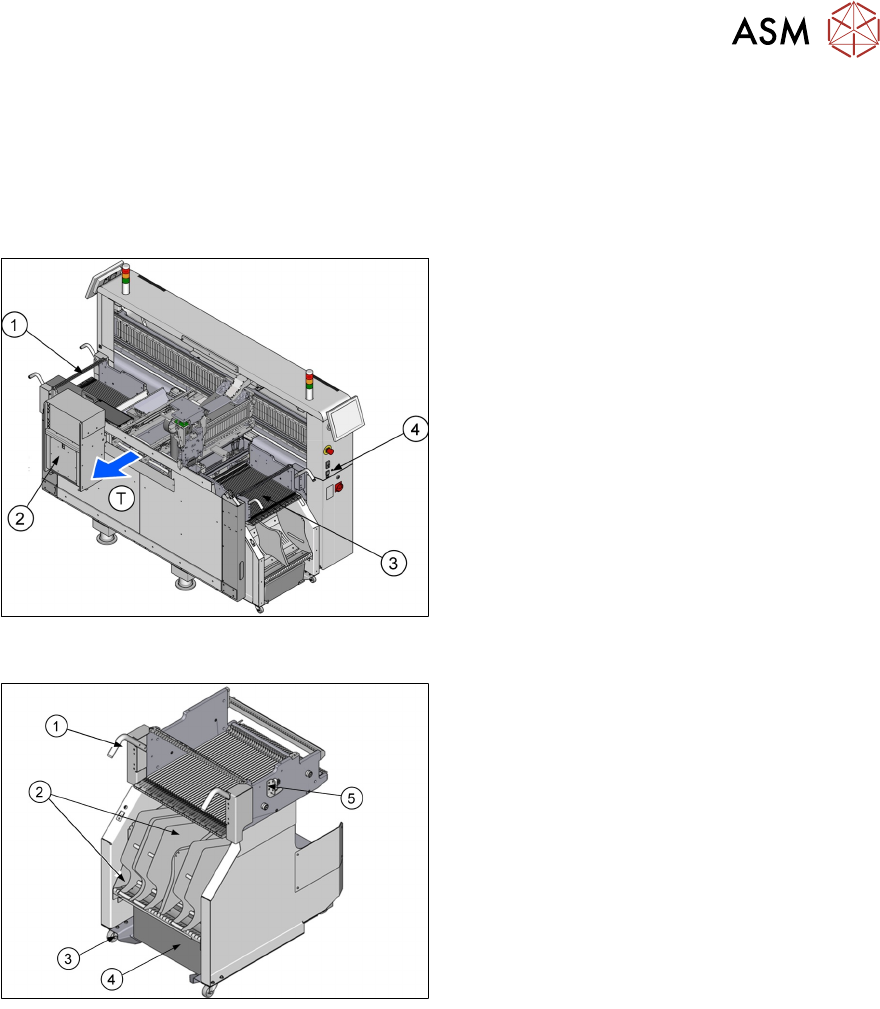

6.1.1 Location
T - Transport direction
1. Location 1 for Change Over Table (COT)
2. JTF-ML
3. Location 2 for Change Over Table (COT)
4. Button for docking/ undocking the Change
Over Table (COT)
6.1.2 Overview COT
1. Handle
2. Reel container/ Cartridge (option)
3. Guide roller
4. Waste bin
5. Actuator/ Safety switch
COT_TX: General
●
The TX COT are not interchangeable with other COT types or machines.
●
Two changeover tables with 40 tracks each can be used on TX1 and TX2 / TX2i machines,
thus a maximum of 80 tracks for 8 mm X feeders are available.
●
Machines with a JEDEC Tray feeder (JTF-ML) installed, only maximum 28 tracks of the COT
on the JTF-ML location can be used.
●
The table is pushed manually into the docking frame and then held in its position by means of
the claws of the docking unit.
COT_TX: Features
●
4 movable wheels for table exchange in narrow space.
●
Standard larger waste bin to reduce work for operator.
●
Optional 7" tape reel holder.
– each tape reel holder can accommodate 2 tape reels, so that up to ten 13" (optional 7")
tape reels can be positioned above the tape container.
Note: Optional 7" tape reel holder can not be used on TX micron.
6 Component Supply
6.1 Change Over Table (COT)
156 Technical Training SIPLACE TX-Series 10/2016
6.1.3 COT Feeder Configuration
Feeder capacity
(Track width 8mm)
Machine Locations With
C&P20 P
With CPP With Twin Head
(only Location1)
TX2i Location 1 38 tracks 40 tracks Not Applicable
Location 2 38 tracks 40 tracks Not Applicable
TX1
TX2
Location 1 38 tracks 28 tracks
with JTF
28 tracks with JTF
40 tracks 40 tracks
Location 2 38 tracks 40 tracks 40 tracks
COT/Feeder inter-
faces to the
machine:
Automatic connection to machine during docking (no cables needed)
Feeder power supply
Feeder communication
Machine safety loop
Feeder compressed air connection
COT heights: 900 mm ± 15 mm
930 mm ± 15 mm (standard height)
950 mm ± 15 mm (SMEMA height)
The following SIPLACE Feeders can be used on the TX machine:
Name Type
X-Feeder Tape feeder types 4 mm X – 56 mm X
Linear feeders Linear feeder types _3x95Ax and _2x15Ax and_ 30Ax
Stick feeders Type smart stick_3x95X and _ 2x15X and _30X
Label feeder Tape feeder type label presenter Ax
LDU-X Processing feeder type Linear Dipping Unit X
GlueFeeder Processing feeder type GlueFeeder X
SIPLACE JTF-ML Tray feeder type JTF-ML_18X and JTF-ML_14X
Reject plate Reject plate TX
Restrictions LDU-X
●
There is a restricted pick-up area when using the LDU-X.
The LDU-X might not be place on the outer 6 tracks (left and right).
This results in restrictions in terms of component processing area.
●
The LDU-X can run together with CP20 P/M2, CPP and TH (only TX series). The LDU-X must
be manually placed in the set up.
●
Dipping area in Y-direction and access restriction on LDU for inner segment nozzle TH (only
TX-Series).
