2 Machine Basic Overview
2.3 Overview main components
Technical Training SIPLACE TX-Series 10/2016 19

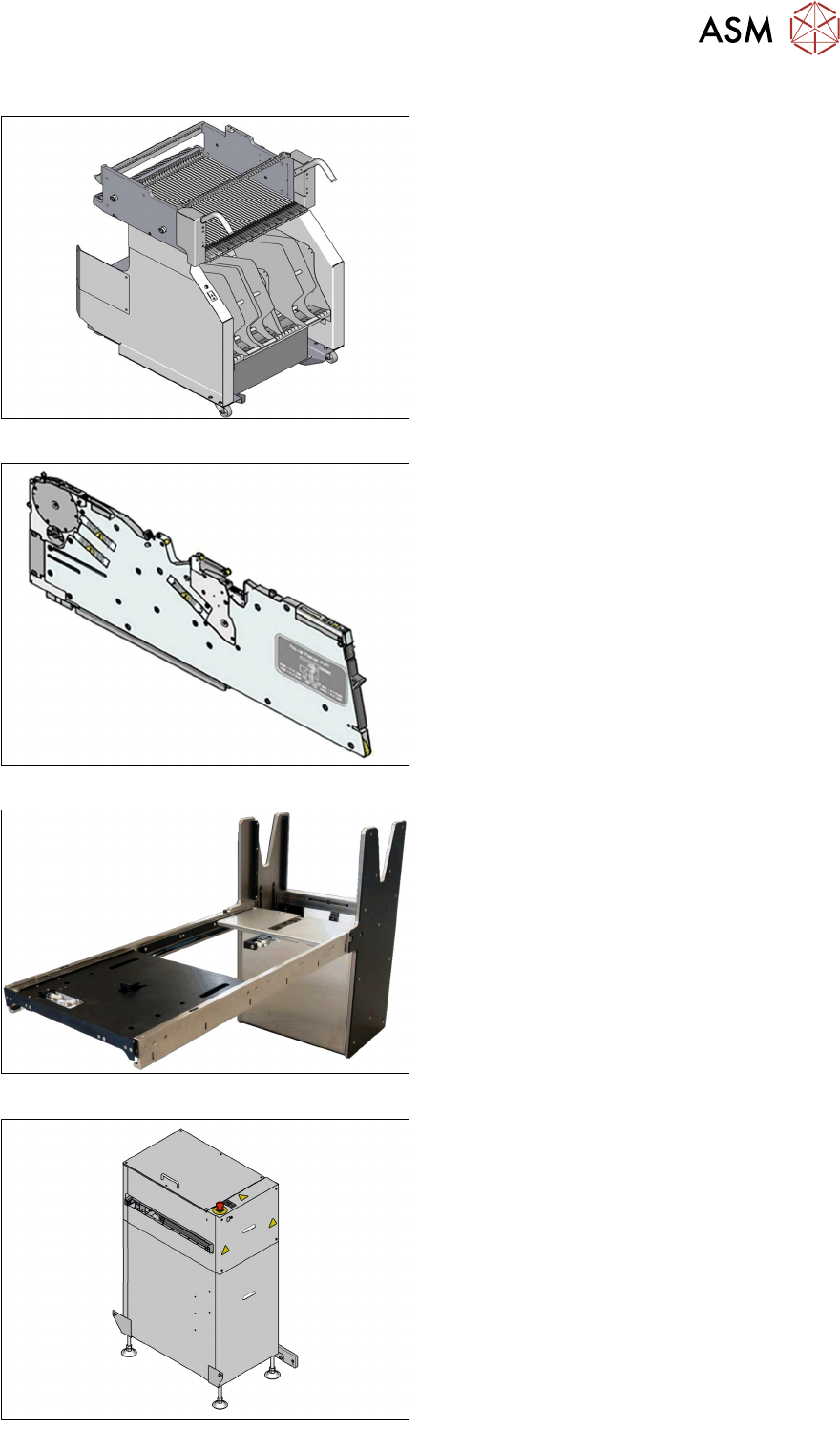

Changeover Tables
●
Each feeder location has a change over
table (COT).
●
Depending on the machine type and head
configuration the COTs have a possible
inner and outer machine position.
●
The feeder count depends on the head
configuration.
Feeder
The TX uses the SIPLACE X-Feeder sizes and
types:
●
4mm, 8mm, 12mm, 16mm, 24mm
●
32mm, 44mm, 56mm
●
GlueFeeder
●
LDU-X (Linear Dipping Unit)
Tray Carrier
●
JTF-ML
Shuttle
●
TX machines with serial number ≥ TA500
●
TX micron machines
The power to the shuttle is supplied by the
TX machine, the shuttle is controlled by
the TXmachine software.
Note:
For input, a combination of shuttle and option
LP barcode is possible.
For output, a combination shuttle and conveyor
extension is NOT possible.
2 Machine Basic Overview
2.3 Overview main components
20 Technical Training SIPLACE TX-Series 10/2016
Other options
Reject plate Components can be rejected onto a reject tray
sized 110mm x 70mm.
Input conveyor extension Needed for barcode reader
Output conveyor extension Needed for JTF-ML
Interior illumination For service work
Reconfiguration kit for LDU-X
Second light barrier in conveyor placement area For running convoy mode
PCB barcode reader On input conveyor extension
GlueFeeder Glue application with maximum precision
TX micron configurations
TX micron is available in the following configurations:
TX2i micron and TX2 micron (20 / 25μm) or TX2i micron 15μm with a license.
TX micron 20 / 25µm (standard) TX micron 15µm
X/Y Glass scale / encoder X/Y Glass scale / encoder
Sensor module X/Y Sensor module X/Y
X-fiducial bar X-fiducial bar
C&P20 M2 / CPP M C&P20 M2 / CPP M
Option vacuum tooling Vacuum tooling preparation transport TX
(stiftness lifting table)
Stiftness lifting table Basic pack vacuum tooling
License TX micron 15µ 3Sigma machine
connection
Customer specific vacuum tooling with
Y-fiducial bar
Optional:
Vacuum tooling TX micron (to measure the
accuracy with the new ACT board)
For further options and details refer to the User manual.
2 Machine Basic Overview
2.4 Machine Configuration
Technical Training SIPLACE TX-Series 10/2016 21

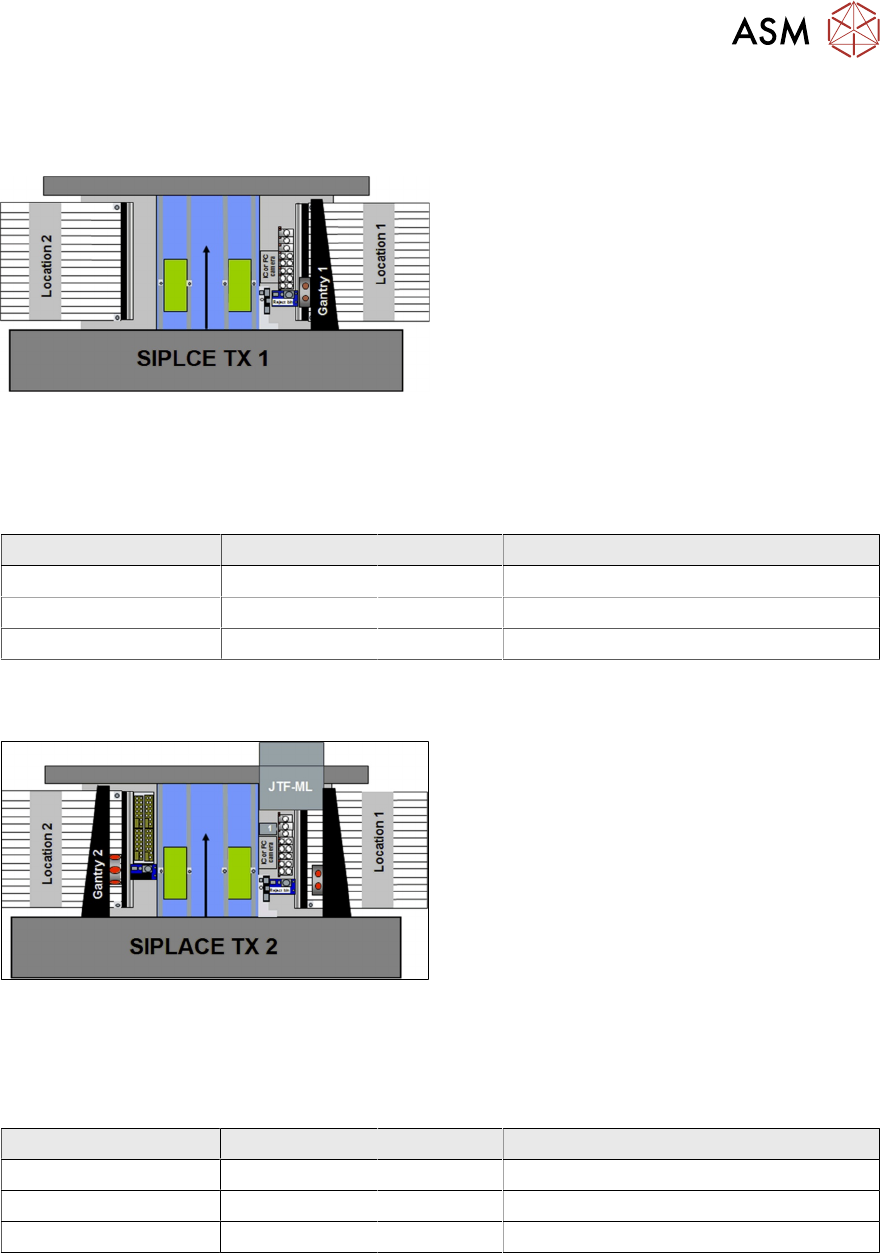

2.4 Machine Configuration
TX 1 Machine Configuration
One gantry with 1 head type:
●
CPP Head – camera type 30 and
stationary camera type 33 on location 1.
●
C&P20 P Head camera type 23 or 41
●
Twin Head stationary camera type 33 or
25
●
JTF-ML (only Location1)
●
Reject Tray (only Location1)
Table position:
●
Location 1: Outer
●
Location 2: Inner
Gantry upgrade to TX2 possible
Feeder Count With C&P20 P With CPP With Twin Head
Location 1 38 40 40*
Location 1 with JTF ML - 28 28
Location 2 38 40 40*
TX 2 Machine Configuration
Two gantries with same or different head
types possible:
●
C&P20 P / C&P20 P camera type 23 or 41
●
TH stationary camera type 25 or 33
/ CPP camera type 30
●
CPP / CPP camera type 30
●
CPP** / CPP** camera type 30 and
stationary camera type 33 on location 1
●
JTF-ML (only Location1)
●
Reject Tray (only Location1)
Table Position:
●
Location 1: Outer
●
Location 2: Inner
Feeder Count With C&P20 P With CPP With Twin Head
Location 1 38 40 40*
Location 1 with JTF ML - 28 28
Location 2 38 40 Not Applicable
*The right segment cannot reach 3 tracks on the left side of the table; the left segment cannot
reach 3 tracks on the right side of the table.
**The CPP Head has a low and a high installation position (with low position a stationary
component camera is not possible).
