10 Station Software Overviews Room for Your Sketches and Notes Technical Training SIPLACE TX-Series 10/2016 253 Room for Your Sketches and Notes
10 Station Software Overviews
10.9 Station GUI Shuttle Extension
252 Technical Training SIPLACE TX-Series 10/2016

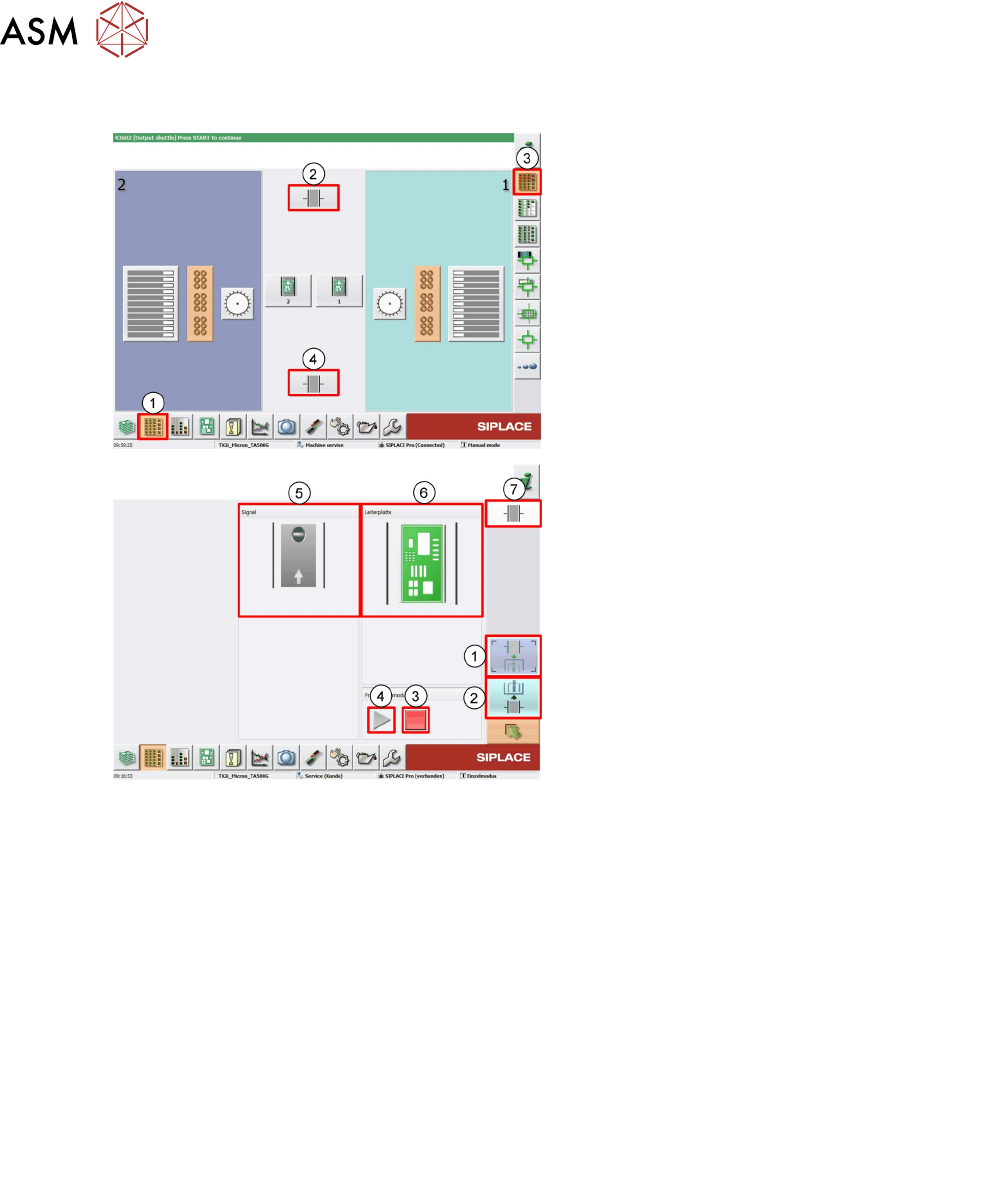

10.9 Station GUI Shuttle Extension
1. Click Setup menu.
2. Select the SIPLACE Shuttle Extension on
the output conveyor.
3. Click Location menu.
4. Select the SIPLACE Shuttle Extension on
the input conveyor.
1. Select the SIPLACE Shuttle Extension on
the output conveyor
2. Select the SIPLACE Shuttle Extension on
the input conveyor.
3. This button stops the automatic operation
of the Shuttle Extensions, single functions
can be executed.
4. This button starts the automatic operation
of the Shuttle Extensions i.e. meaning that
the boards which arrive at the Shuttle
Extension are transported through and
then passed on to the next machine,
according to the configuration.
5. This button shows the current state of the
signal transmitter (laser light barrier). The
LED symbol shows whether there is a
board in the Shuttle Extension or, in other
words, whether the signal transmitter
(laser light barrier) has triggered.
10.10 Excercise: Station Software Overviews
1. What is the best answer regarding the maintenance GUI in SW 709?
A Maintenance GUI can be used for machine maintenance and head verification.
B Camera, feeder and conveyor rail verification is integrated into maintenance GUI.
C Maintenance GUI can show predictive information, to help customers do the maintenance on
time, reduce unplanned downtime.
D All of the above.
10 Station Software Overviews
Room for Your Sketches and Notes
Technical Training SIPLACE TX-Series 10/2016 253
Room for Your Sketches and Notes
10 Station Software Overviews
Room for Your Sketches and Notes
254 Technical Training SIPLACE TX-Series 10/2016
