11 JTF-ML
11.3 JTF (JEDEC Tray Feeder) - Operation
Technical Training SIPLACE TX-Series 10/2016 257
11.3 JTF (JEDEC Tray Feeder) - Operation

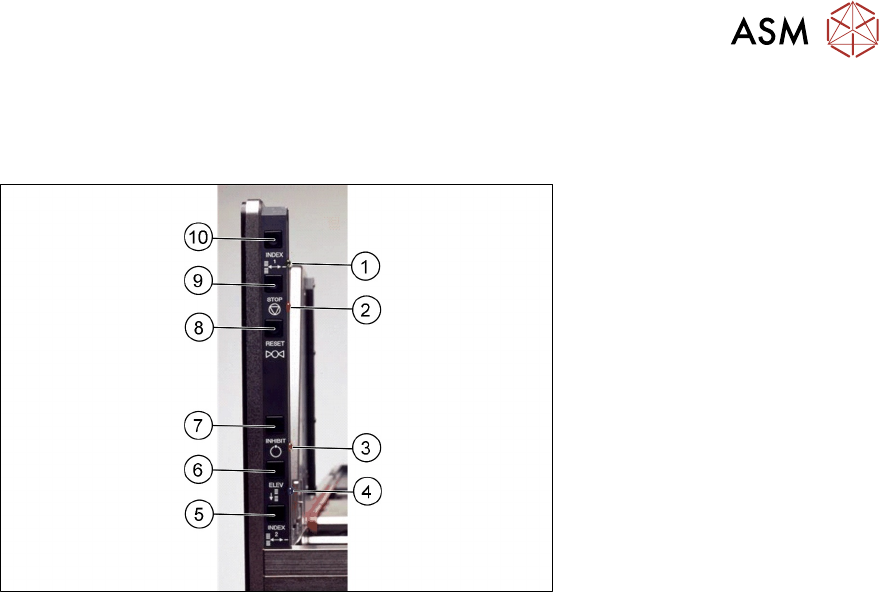

11.3.1 Overview
1. LED lamp green
2. LED lamp red
3. LED lamp yellow
4. LED lamp blue
5. Index 2
6. Elevator button
7. Inhibit button
8. Reset button
9. Stop button
10. Index 1
11 JTF-ML
11.3 JTF (JEDEC Tray Feeder) - Operation
258 Technical Training SIPLACE TX-Series 10/2016
11.3.2 Button Description
No. Item Description Remarks
1 Index 1 & 2
●
Index 1 and 2 (same time) trigger a tray
exchange. The next tray in order will be
presented.
●
After the last tray the magazine drives
down and waits.
●
Open close the door to go on.
Not Active in
production mode.
2 Stop button
●
The stop button kills the air and motors
immediately.
●
A signal is sent to the host.
Active in production
mode.
3 Reset button
●
The reset button resets the feeder after
a Stop or Error condition.
●
A signal will be sent to the host.
Active in production
mode.
4 Inhibit button
●
Inhibits the feeder from receiving a tray
exchange command from the host,
push again and the Inhibit condition is
switched off.
Active in production
mode.
5 Elevator down
●
Enables to replace individual trays
during operation and without
interrupting production.
Not Active in
production mode
Continuous Run
Disconnect power cable of JTF, keep the button Inhibit(4) pressed and connect the power cable
for several seconds, the JTF will beginning with continuous run until press stop (2) or disconnect
the cable.
11.3.3 LED indication
No. Item/ Status Description
7 Green LED
- Ready
On Indicates a tray successfully reached the pick-position. A signal is
sent to the host. The LED goes off once the tray leaves the pick-
position.
Off Not ready to pick components, or, tray exchange is happening.
8 Orange LED
-Stop/ Error
On Stop-Condition, after pushing Stop.
Flash Error Condition. During the tray exchange a failure has happened.
The blinking pattern tells about what code. The signal is sent to
the host. Check RS232 Error Codes.
Off Normal operation.
9 Yellow LED
-Inhibit
On The Yellow LED indicated Inhibit, a signal is sent to the host. The
feeder does not accept tray exchanges.
Off Normal operation.
10 Blue LED
-Full/ Empty
On After a manual index of the last tray (highest slot number) in the
magazine the Blue LED goes on.
Off It indicated EMPTY, the elevator goes down. Open/close door to
reset condition.
11 JTF-ML
11.4 JTF (JEDEC Tray Feeder) - Power and Communication
Technical Training SIPLACE TX-Series 10/2016 259

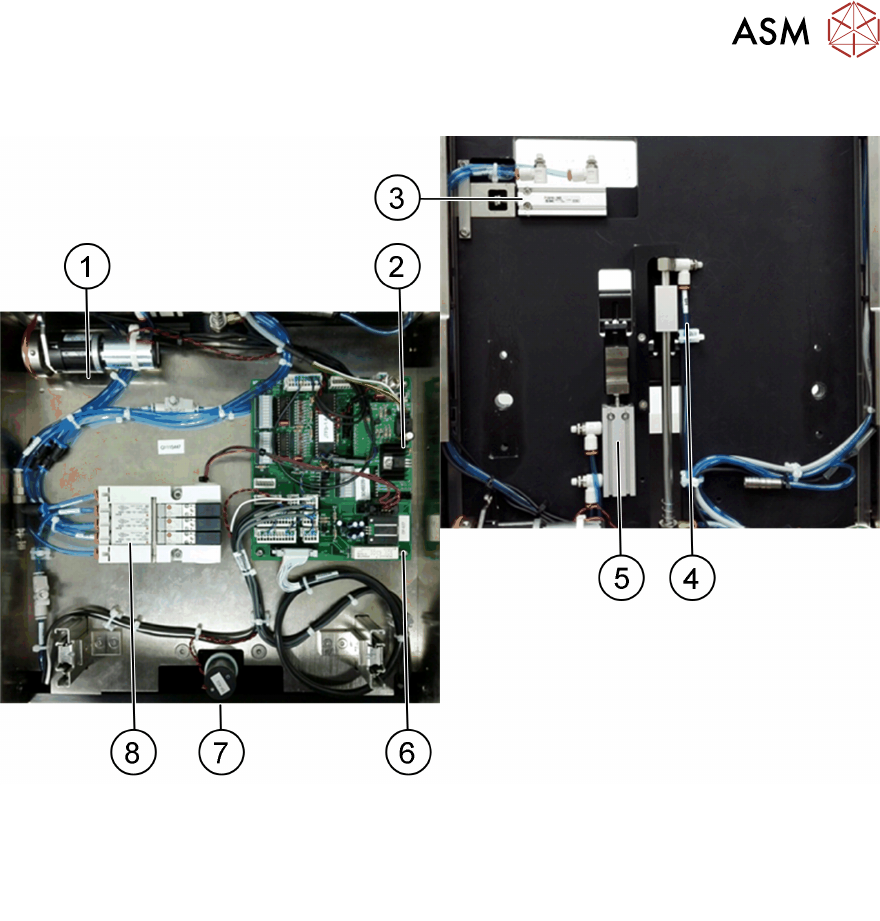

11.4 JTF (JEDEC Tray Feeder) - Power and Communication
1. Feed motor 5. Cylinder clamping Y
2. Power cable connector 6. Control board
3. Cylinder clamping X 7. Motor (lifting axis)
4. Tray pusher cylinder 8. Air distributor
