4 Gantry System Room for Your Sketches and Notes Technical Training SIPLACE TX-Series 10/2016 49 Room for Your Sketches and Notes
4 Gantry System
4.8 Gantry System and Base Machine - Overview Maintenance
48 Technical Training SIPLACE TX-Series 10/2016
4.8 Gantry System and Base Machine - Overview
Maintenance
Maintenance item for base machine, for detail see maintenance job card.
Maintenance content Interval Equipment required
Magnetic surfaces of X/Y Axis All workflows Cleaning wipe
Clean gantry cables All workflows Cleaning wipe
X/Y Axis guidance rail All workflows SIPLACE tissue
X/Y Axis scale Workflow 2 Cleaning wipe, ethyl alcohol
IC camera for CPP/TH Workflow 2 Cleaning wipe
Head exhaust air filter Workflow 3 Air gun, Allen key
Compressed air filter Workflow 3 Air gun
Vacuum pump filter Workflow 3 Air gun, Allen key
Gas pressure shock absorber Workflow 4 Cleaning wipe
Linear guide bearing of X/Y Axis Workflow 4 Kluber oil BEM 34-132 cartridge
Protection covers Workflow 4 Cleaning fluid for the covers
Magnetic surfaces of X/Y Axis All workflows Cleaning wipe
4.9 Excercise: TX Gantry System
1. Which of the following is false regarding the TX Gantry system?
A The head interface board for Gantry 1 and 2 can be exchanged (swapped over).
B Both X and Y Axes are driven by linear motors.
C The TX gantry reference run is the same with X-Series S machine.
D MGCU is used for X and Y motor control.
2. Which action should be performed after exchange of the Y Axis encoder reader?
A Adjust the distance (0.75mm) between encode reader and scale.
B Calibrate travel range for both gantries.
C Calibrate machine zero point.
D All of the above.
3. Describe the machine reference run.
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
4 Gantry System

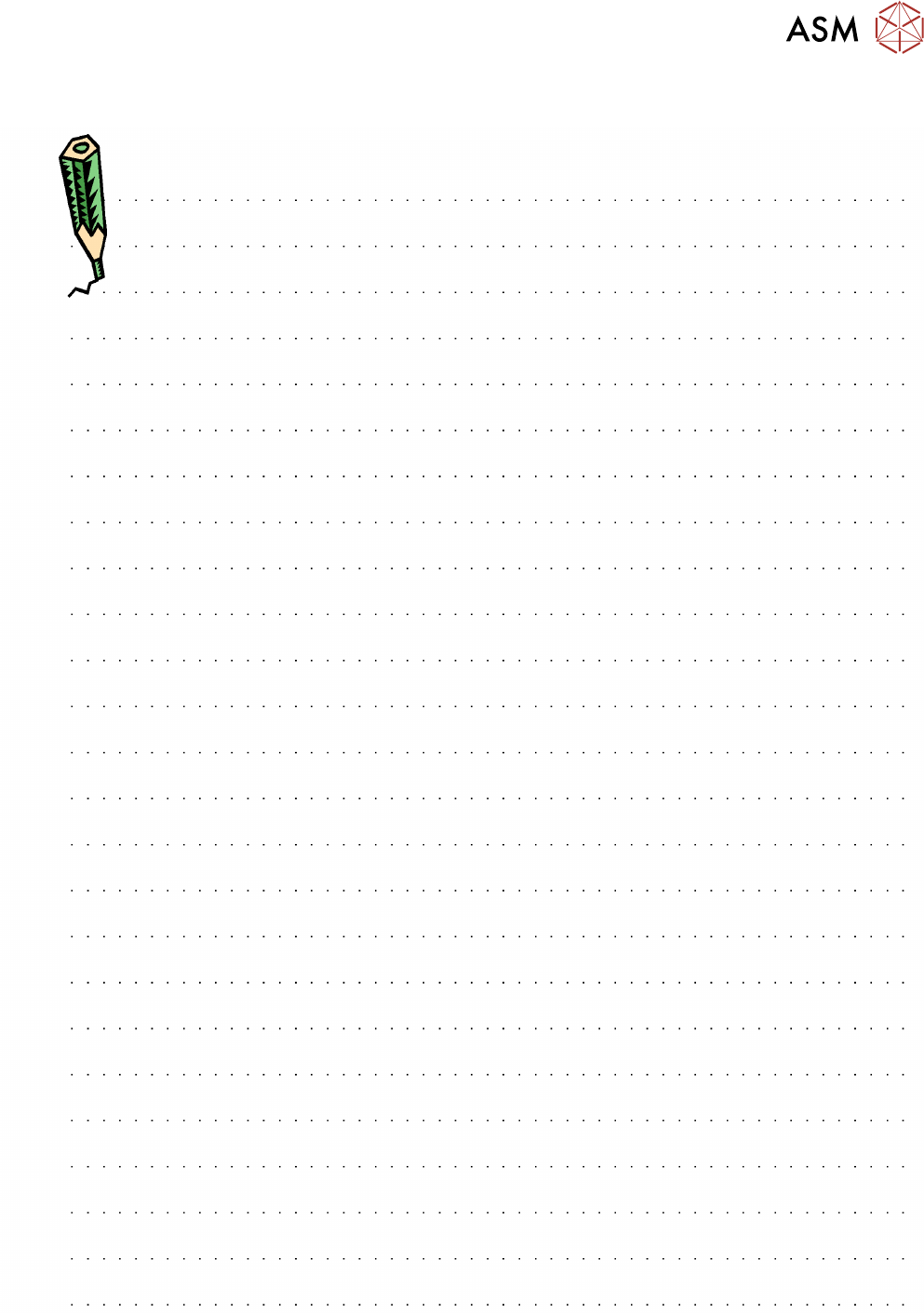

Room for Your Sketches and Notes
Technical Training SIPLACE TX-Series 10/2016 49
Room for Your Sketches and Notes
4 Gantry System

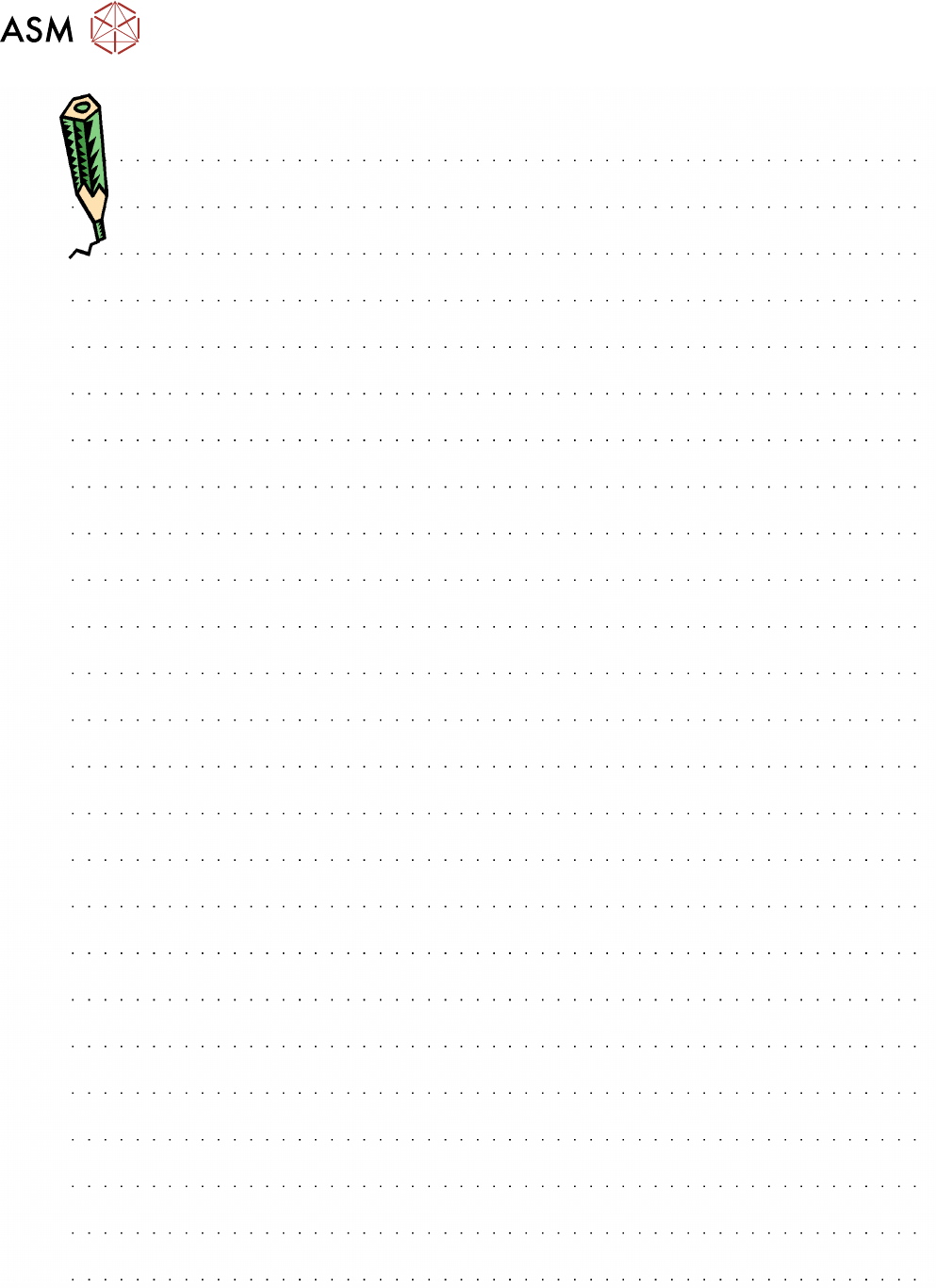

Room for Your Sketches and Notes
