4 Gantry System
Room for Your Sketches and Notes
Technical Training SIPLACE TX-Series 10/2016 49
Room for Your Sketches and Notes
4 Gantry System
Room for Your Sketches and Notes
50 Technical Training SIPLACE TX-Series 10/2016
5 Placement Heads
5.1 CPP Head
Technical Training SIPLACE TX-Series 10/2016 51
5 Placement Heads
5.1 CPP Head
5.1.1 Overview

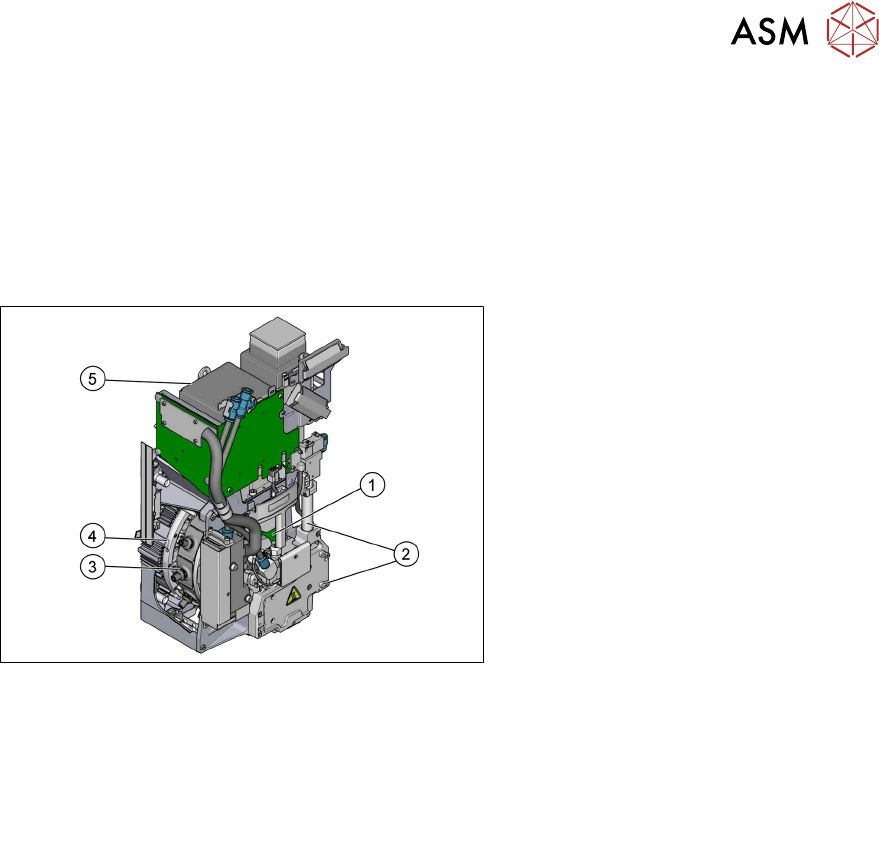

5.1.1.1 Overview
1. Holding circuit supply, integrated
venturi nozzles and valve terminal
2. Z Axis with retract unit
3. DP drive with nozzle
4. Star motor (integrated into the head
frame
5. Component camera
Special Features of CPP Head / Benefit for customer
●
3 placement modes possible:
– C&P mode
– P&P mode *
– Mixed mode *
* Note: P&P mode and mixed mode are not supported by TX micron.
●
Larger and higher spectrum for component: 01005 – 50x40mm / up to 11.5mm height.
●
The vacuum holding circuit has independent venturi nozzles for each segment.
●
Each segment has its own motor with incremental measuring system.
●
Light sensor at bottom is integrated into each segment.
●
Digital Pressure Regulator Valve (PRV) enables switching times between vacuum and air
blast faster.
●
The component sensor is more robust. Prisms with mechanical protection.
