5 Placement Heads
5.1 CPP Head
74 Technical Training SIPLACE TX-Series 10/2016
Calibration – Procedure
1. Calibration tool 03010565-xx for camera type SSTGigE33
2. Calibration tool 03034148-xx for camera type SST30
3. Nozzle 2057 03070280-xx
5 Placement Heads
5.1 CPP Head
Technical Training SIPLACE TX-Series 10/2016 75
5.1.7.2 Calibration Steps
1. Log on as Machine service (1-3). 2. Click Calibration (1).
Click Automatic calibration (2).
3. Under pull down menu Selection select
Calibration of fiducials, cameras and
heads.
4. Deselect Nozzle changer (1).
Click Next (2).
5. Select required Gantry (1).
Click Next (2).
6. Select required Locations and Place-
ments areas (1).
Click Next (2).
5 Placement Heads
5.1 CPP Head
76 Technical Training SIPLACE TX-Series 10/2016

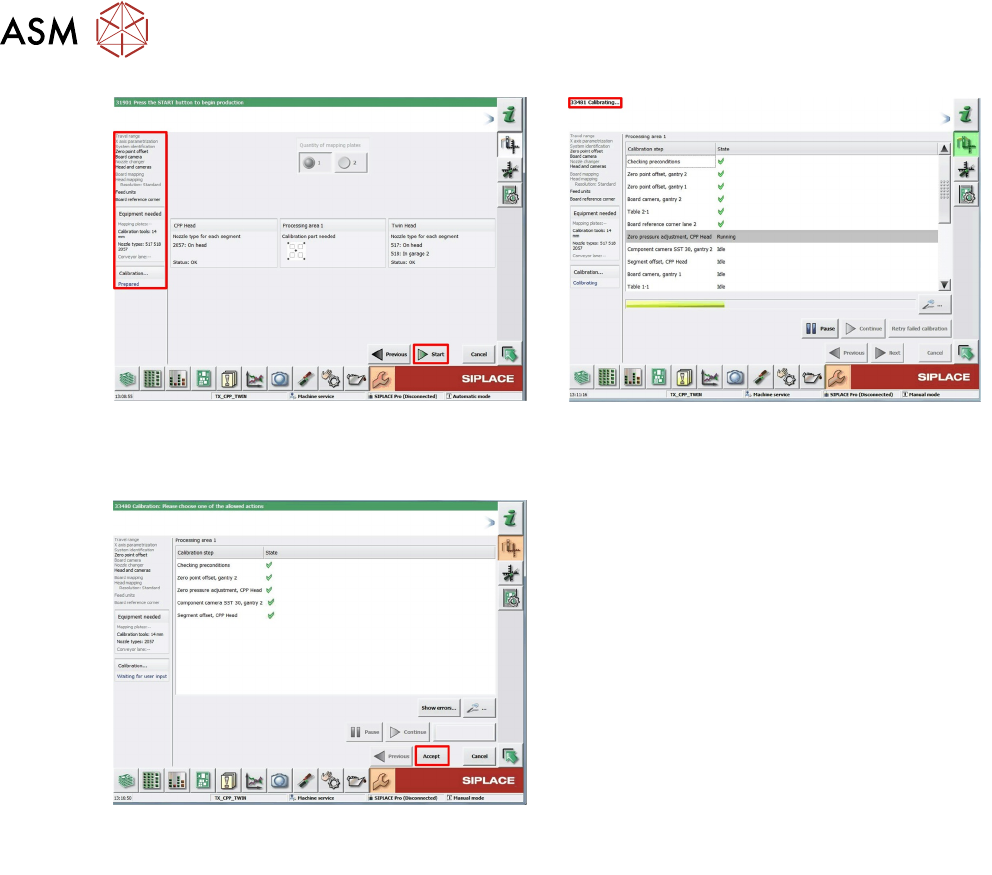

7. Software checks preconditions and displays
status of necessary tools.
Click Start to continue.
8. Calibration has started.
9. Calibration has finished.
Click Accept to approve measurement.
